Delphi® TC1602 Suspension Ball Joint

Name: Delphi TC1602 Suspension Ball Joint
Brand: Delphi
SKU: DETC1602
Price: 19.93 USD
Availability: InStock

This Part Does Not Fit Selected Vehicle1903 franklin four

View Correct Part Change Vehicle

Description

Ball Joint

Manufacturer’s Warranty : 12 Months / 12,000 Miles

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

$19.93 ~~$23.45~~ 15% Off

SKU	DETC1602
Brand	Delphi®
Part Name	Suspension Ball Joint
Part	# TC1602
UPC	# 00689604278628
Quantity Per Vehicle	2
Pack of	1
Condition	New

Fast Shipping

We ship fast so you can get on the road that much faster
100% Safety

Only secure payments

Product Description

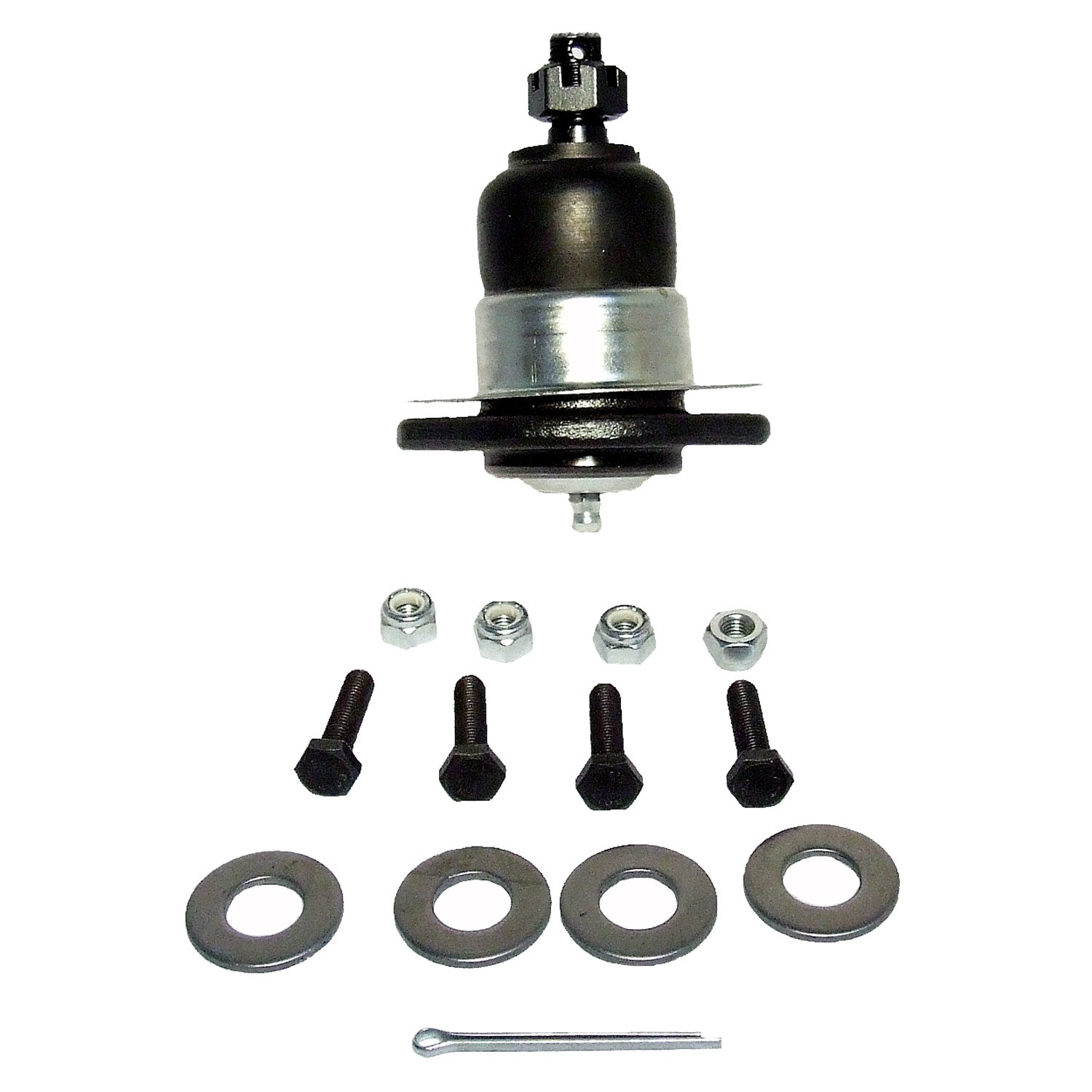

Delphi® TC1602 Suspension Ball Joint

Ball Joint

Delphis OE safety technology is fitted to millions of vehicles worldwide and we apply Delphis OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphis extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

PRODUCT ATTRIBUTE & INFO

California Proposition 65	-	Warning: this product can expose you to chemicals including carbon black, which is known to the state of california to cause cancer. for more information go to www.p65warnings.ca.gov.
Position(s)	-	Front upper
Material	-	Steel
Maximum Outside Diameter (IN)	-	3.752
Maximum Outside Diameter (MM)	-	95.30
Color	-	Gray
Stud Thread Diameter (IN)	-	0.551
Stud Thread Diameter (MM)	-	14
Castle Nut Included	-	Yes
Grease Fitting Included	-	Yes
Suspension Grade Type	-	Standard
Bushings Included	-	No
Dust Boot Included	-	Yes
Ball Joint Assembly	-	Yes
Width (MM)	-	108.8
Cotter Pin Included	-	Yes
Cotter Pin Hole	-	Yes
Mounting Hardware Included	-	Yes
Mounting Bolt Length (IN)	-	1.587
Mounting Bolt Length (MM)	-	40.30
Washers Included	-	No
Height (IN)	-	4.465
Height (MM)	-	113.40
Nuts Included	-	Yes
Mounting Hole Quantity	-	4
Adjustable	-	No
Greaseable	-	Yes
Stud Thread Length (IN)	-	0.768
Stud Thread Length (MM)	-	19.5
Wrench Size	-	13mm
Stud Type	-	Threaded
Distance Between Mounting Holes (MM)	-	27.00
Dust Boot Material	-	Rubber
Mounting Bolt Shank Diameter (IN)	-	0.315
Mounting Bolt Shank Diameter (MM)	-	8.00
Mounting Bolt Head Diameter (IN)	-	0.571
Mounting Bolt Head Diameter (MM)	-	14.50
Mounting Bolts Included	-	Yes
Mounting Bolt Thread Pitch (MM)	-	1.25
Mounting Bolt Thread Length (IN)	-	1.299
Mounting Bolt Thread Length (MM)	-	33.00
Mounting Bolt Thread Diameter (MM)	-	8.00
Mounting Bolt Thread Diameter (IN)	-	0.310
Mount Plate Included	-	No
Tapered Stud	-	Yes
Stud Tapered End 2 Diameter (IN)	-	0.768
Stud Tapered End 2 Diameter (MM)	-	19.5
Stud Tapered End 1 Diameter (IN)	-	0.591
Stud Tapered End 1 Diameter (MM)	-	15
Stud Thread Pitch (MM)	-	1.5
Show All
