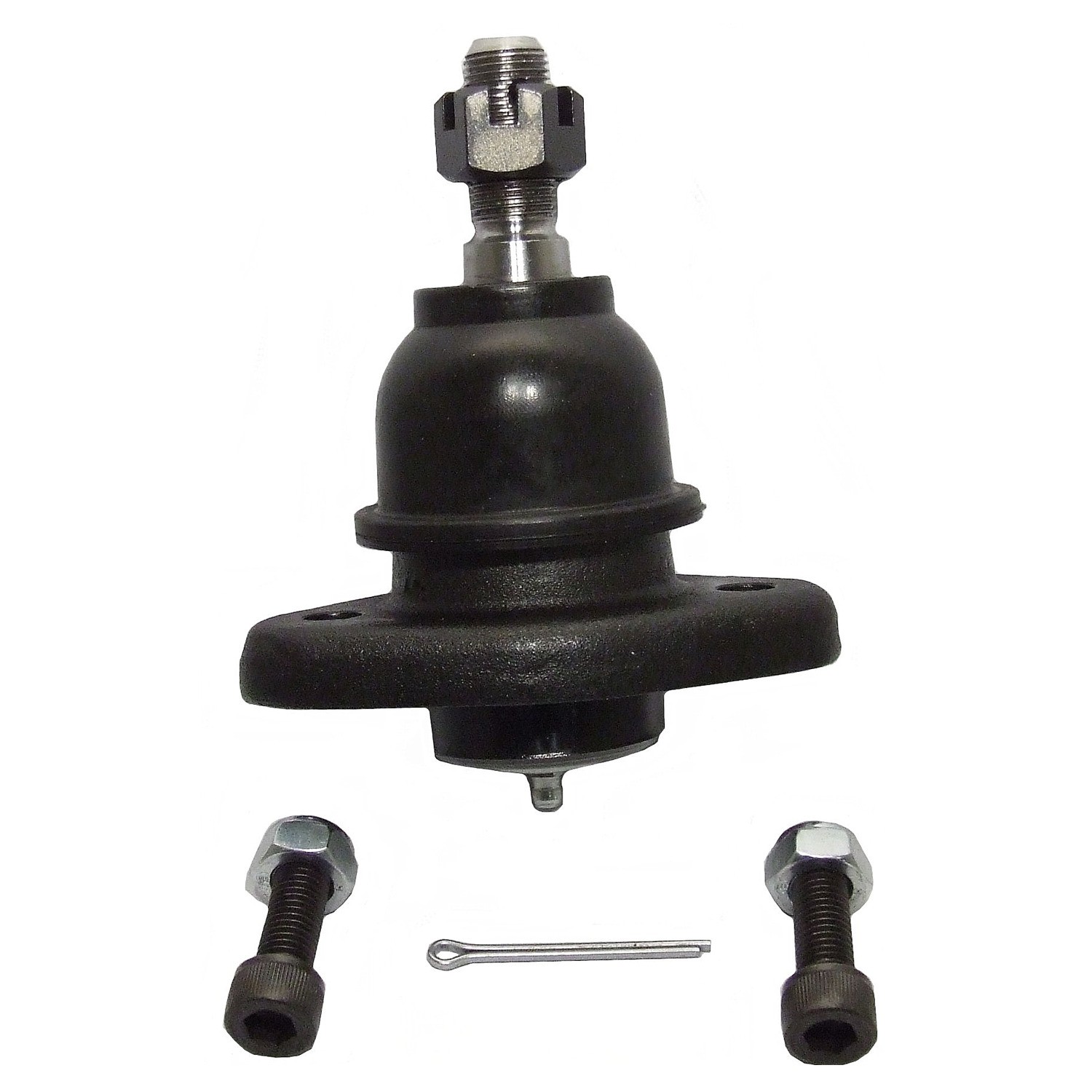

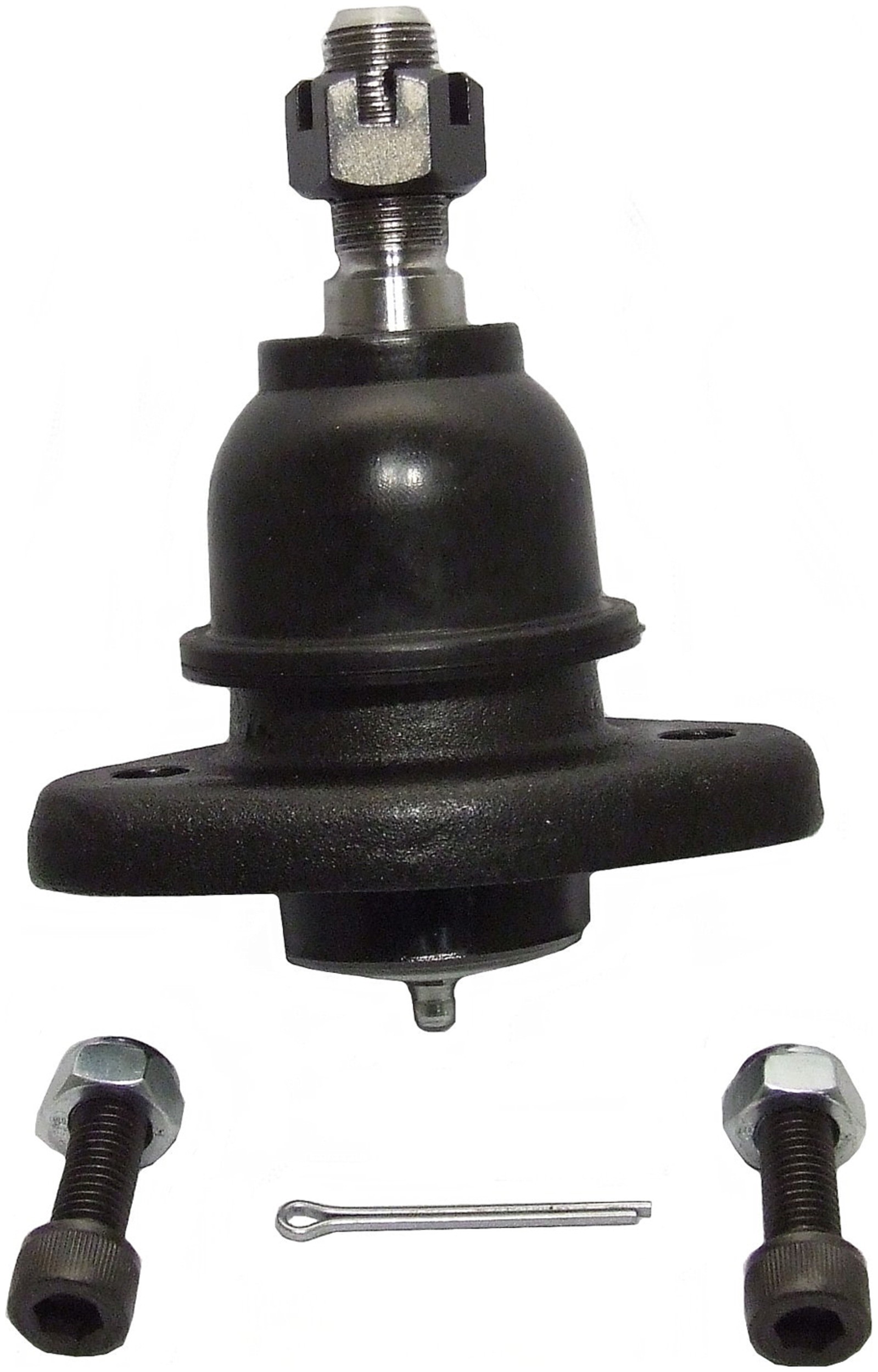

Delphi® TC1628 Suspension Ball Joint

Name: Delphi TC1628 Suspension Ball Joint
Brand: Delphi
SKU: DETC1628
Price: 34.14 USD
Availability: InStock

This Part Does Not Fit Selected Vehicle1940 studebaker champion

View Correct Part Change Vehicle

Description

Ball Joint

Manufacturer’s Warranty : 12 Months / 12,000 Miles

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

Place Your Order by 1:00 PM EST, It Will Be Ship Today!

$34.14 ~~$40.16~~ 15% Off

Only 8 left in stock - order soon.

SKU	DETC1628
Brand	Delphi®
Part Name	Suspension Ball Joint
Part	# TC1628
UPC	# 00689604277126
Quantity Per Vehicle	2
Pack of	1
Condition	New

Fast Shipping

We ship fast so you can get on the road that much faster
100% Safety

Only secure payments

Product Description

Delphi® TC1628 Suspension Ball Joint

Ball Joint

Delphis OE safety technology is fitted to millions of vehicles worldwide and we apply Delphis OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphis extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

PRODUCT ATTRIBUTE & INFO

California Proposition 65	-	Warning: this product can expose you to chemicals including carbon black, which is known to the state of california to cause cancer. for more information go to www.p65warnings.ca.gov.
Position(s)	-	Front lower
Material	-	Ball material - alloy steel sae 5140, housing material - carbon steel sae 1040
Color	-	Gray
Stud Thread Diameter (IN)	-	0.625
Stud Thread Diameter (MM)	-	15.88
Castle Nut Included	-	Yes
Grease Fitting Included	-	Yes
Suspension Grade Type	-	Standard
Bushings Included	-	No
Dust Boot Included	-	Yes
Ball Joint Assembly	-	Yes
Width (MM)	-	77
Cotter Pin Included	-	Yes
Cotter Pin Hole	-	Yes
Mounting Hardware Included	-	Yes
Mounting Bolt Length (IN)	-	1.181
Mounting Bolt Length (MM)	-	30.00
Washers Included	-	Yes
Height (IN)	-	5.394
Height (MM)	-	110.00
Nuts Included	-	Yes
Mounting Hole Quantity	-	2
Adjustable	-	No
Greaseable	-	Yes
Stud Thread Length (IN)	-	1.437
Stud Thread Length (MM)	-	36.5
Wrench Size	-	8mm
Stud Type	-	Threaded
Mounting Type	-	Bolt-in
Distance Between Mounting Holes (MM)	-	75.00
Dust Boot Material	-	Rubber
Mounting Bolt Shank Diameter (MM)	-	10.00
Mounting Bolt Shank Diameter (IN)	-	0.390
Mounting Bolt Head Diameter (IN)	-	0.630
Mounting Bolt Head Diameter (MM)	-	16.00
Mounting Bolts Included	-	Yes
Mounting Bolt Thread Pitch (MM)	-	1.5
Mounting Bolt Thread Length (MM)	-	28.00
Mounting Bolt Thread Length (IN)	-	1.100
Mount Plate Included	-	No
Tapered Stud	-	Yes
Stud Taper Per Foot (IN)	-	0.125
Stud Tapered End 2 Diameter (IN)	-	0.752
Stud Tapered End 2 Diameter (MM)	-	19.1
Stud Tapered End 1 Diameter (IN)	-	0.874
Stud Tapered End 1 Diameter (MM)	-	22.2
Stud Threads Per Inch	-	18
