Name: Hella Behr 009203411 Door Lock Assembly
Brand: Hella Behr
SKU: HL009203411
Availability: OutOfStock

Description

Part Name : Door Lock Assembly

Part : # 009203411

Quantity Per Vehicle : 1

Manufacturer’s Warranty : 12 months/12,000 miles

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

Place Your Order by 1:00 PM EST, It Will Be Ship Today!

Out Of Stock

SKU	HL009203411
Brand	Hella Behr®
Part Name	Door Lock Assembly
Part	# 009203411
UPC	# 00760687117476
Quantity Per Vehicle	1
Pack of	1
Condition	New

Fast Shipping

We ship fast so you can get on the road that much faster
100% Safety

Only secure payments

Product Description

Hella Behr® 009203411 Door Lock Assembly

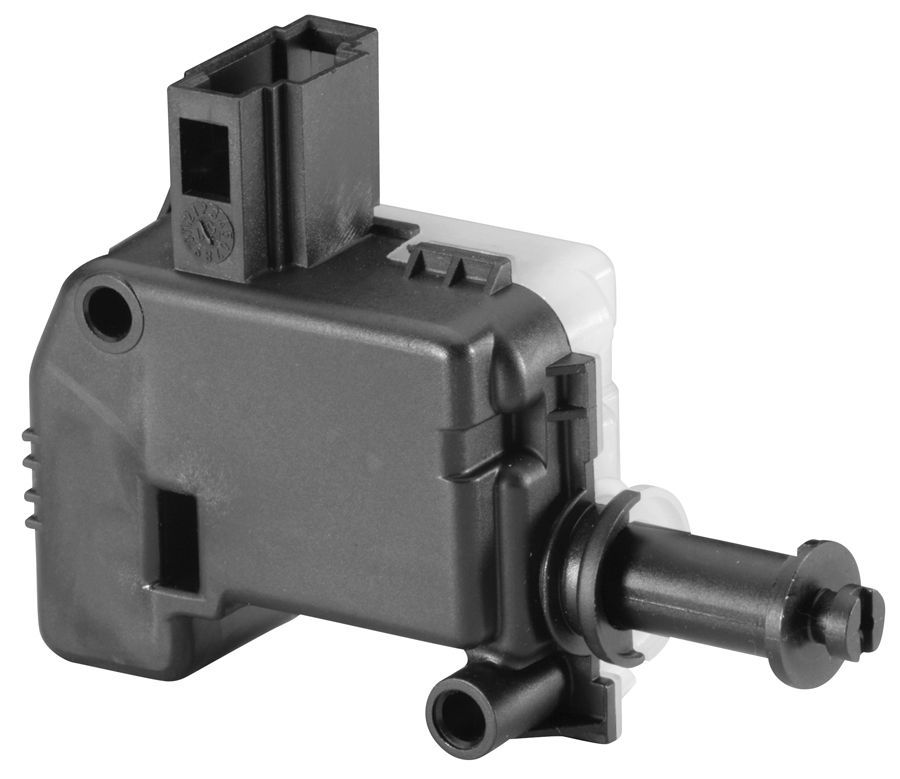

ACTUATOR 12V PUSH/PULL 50N IP5K0

The motor-driven actuator is used for the electrical locking, unlocking or shutting Function of the closing and flap systems in automotive and industrial applications. There is an electric motor installed in the two laser-welded polyamide housing halves. As a result of the electric motor being supplied with current via pin 1 and pin 2, it moves a spindle gear, which causes the tappet to retract or extend depending on the direction of rotation. The current supply with plus at pin 1 and minus at pin 2 causes the tappet to extend. The current supply with minus at pin 1 and plus at pin 2, causes the plunger to retract. The stability of the retracted/ extended locking positions is achieved by the short-circuited motor following successful actuation. A PolySwitch (PTC) integrated in the motor provides thermal overload protection. In addition, it is possible to equip the actuators with an automatic return Function (retracting or extending) by way of a mainspring.

High actuating power
