Name: Surtrak AD-8076 CV Axle Shaft
Brand: Surtrak
SKU: SAAD8076
Price: 66.04 USD
Availability: InStock

CV Axle Shaft

Manufacturer’s Warranty : Limited Lifetime

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

$66.04 ~~$73.38~~ 10% Off

Only 3 left in stock - order soon.

Product Description

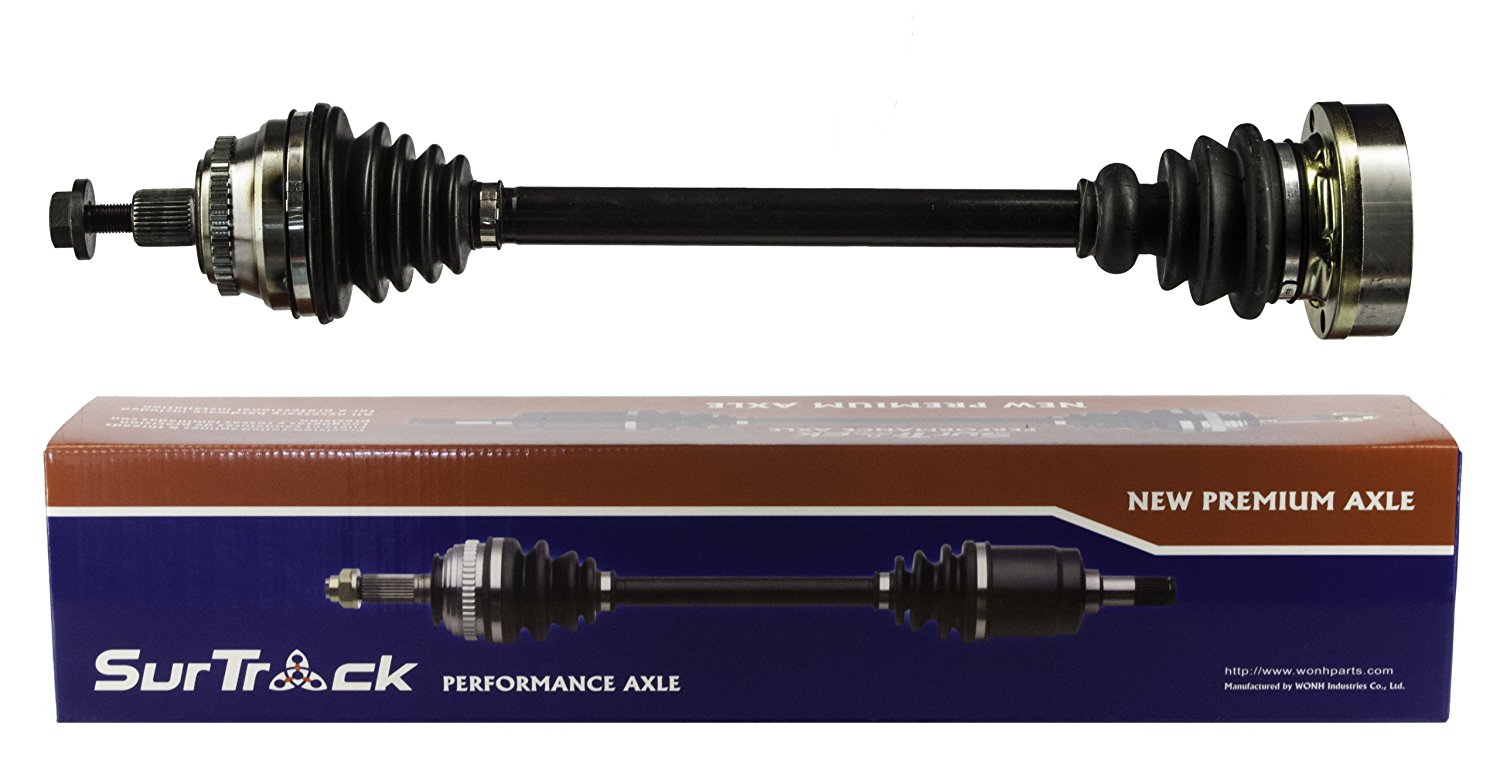

Surtrak® AD-8076 CV Axle Shaft

CV Axle Shaft

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

ABS Ring Type	-	Toothed
Axle Bolt Hex Size (mm)	-	24
Axle Bolt Thread Size	-	M14x1.5
Grade Type	-	Premium
Inboard Bolt Head Size (mm)	-	8
Inboard Bolt Length (in)	-	2.17
Inboard Bolt Thread Size	-	M10x1.5
Inboard Joint Type	-	Bolt-on
Number Of Bolt Holes	-	1
Number Of Inboard Shaft Bolts	-	6
Number Of Outboard Joint Bolt Holes	-	0
Number Of Outboard Splines	-	33
Outboard Joint Type	-	Audi style spline bolt

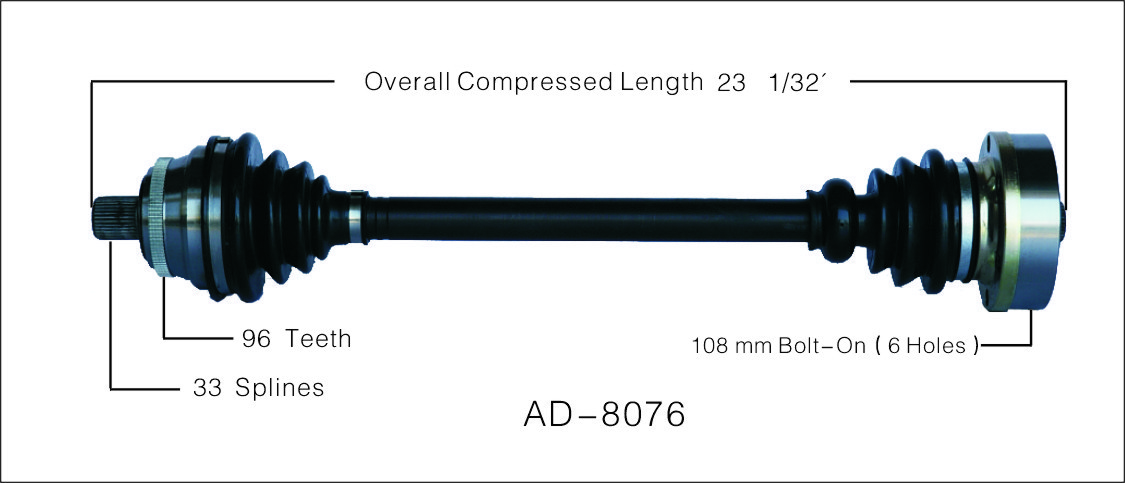

Overall Compressed Length (in)	-	23.03
ABS Ring Tooth Count	-	96
ABS Tone Ring Included	-	Yes
Axle Bolt Length (mm)	-	93
Axle Nut Included	-	No
Inboard Bolt Head Size (in)	-	.33
Inboard Bolt Head Type	-	Allen
Inboard Bolt Length (mm)	-	55
Inboard Joint Boot Material	-	Neoprene
Inboard Shaft Connection Style	-	Bolt-on
Number Of Inboard Joint Bolt Holes	-	6
Number Of Inboard Splines	-	0
Number Of Outboard Shaft Bolts	-	1
Outboard Joint Boot Material	-	Neoprene
Outboard Shaft Connection Style	-	Audi style spline bolt
Overall Compressed Length (mm)	-	585
