Name: Surtrak AD-8146 CV Axle Shaft
Brand: Surtrak
SKU: SAAD8146
Price: 104.81 USD
Availability: InStock

AAR CV Axle Shaft

Manufacturer’s Warranty : Limited Lifetime

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

$104.81 ~~$116.46~~ 10% Off

Product Description

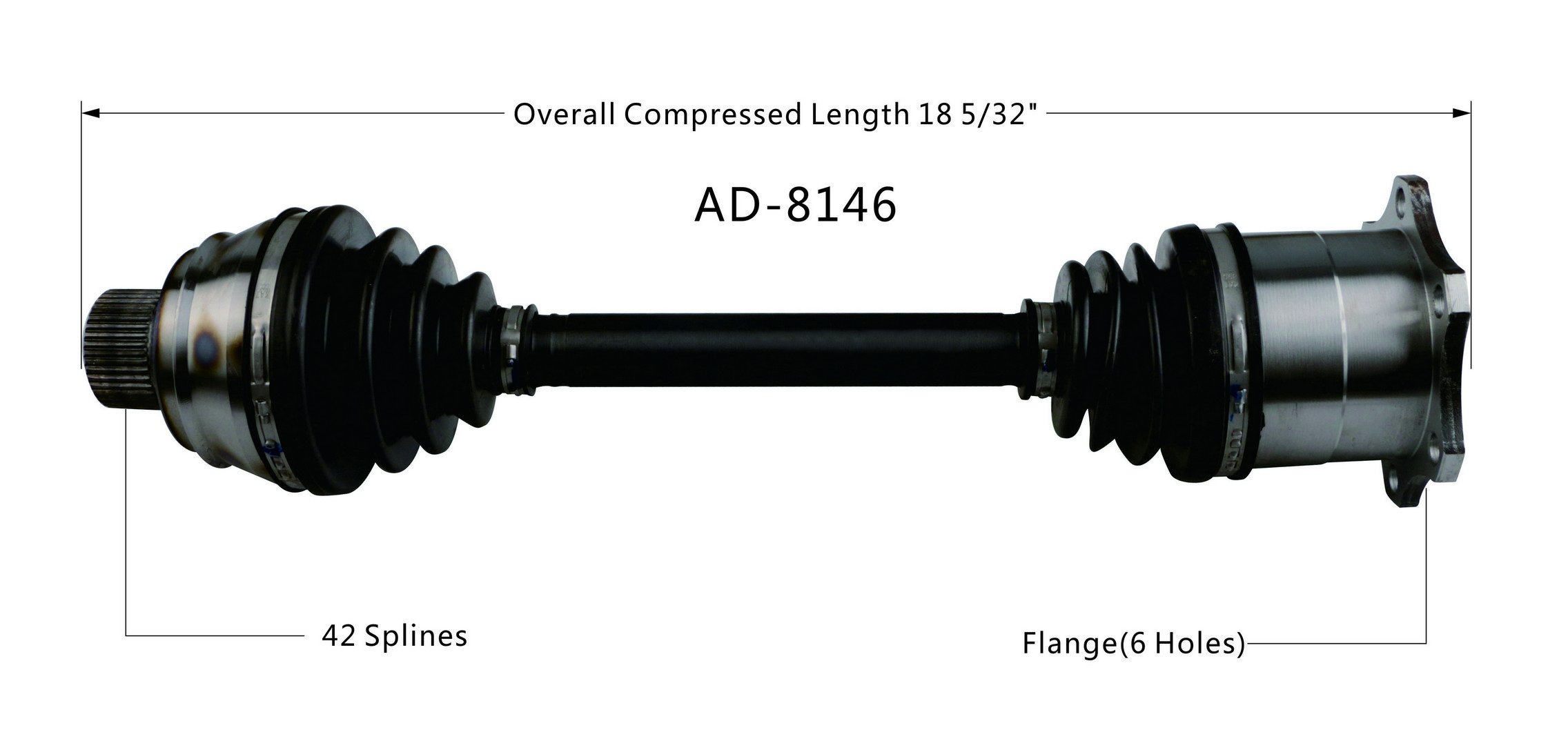

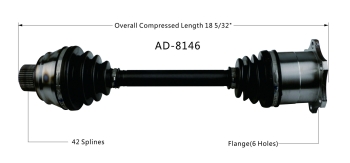

Surtrak® AD-8146 CV Axle Shaft

AAR CV Axle Shaft

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

ABS Tone Ring Included	-	No
Axle Bolt Length (mm)	-	90
Axle Nut Included	-	No
Inboard Joint Boot Material	-	Neoprene
Inboard Shaft Connection Style	-	Flange
Number Of Inboard Joint Bolt Holes	-	6
Number Of Inboard Splines	-	0
Number Of Outboard Shaft Bolts	-	1
Outboard Joint Boot Material	-	Neoprene
Outboard Shaft Connection Style	-	Audi style spline bolt
Overall Compressed Length (mm)	-	461
ABS Ring Tooth Count	-	0
Axle Bolt Hex Size (mm)	-	17
Axle Bolt Thread Size	-	M16x1.5
Grade Type	-	Premium
Inboard Joint Type	-	Flange
Number Of Bolt Holes	-	1
Number Of Inboard Shaft Bolts	-	0
Number Of Outboard Joint Bolt Holes	-	0
Number Of Outboard Splines	-	42
Outboard Joint Type	-	Audi style spline bolt
Overall Compressed Length (in)	-	18.15
Show All
