Cardone®

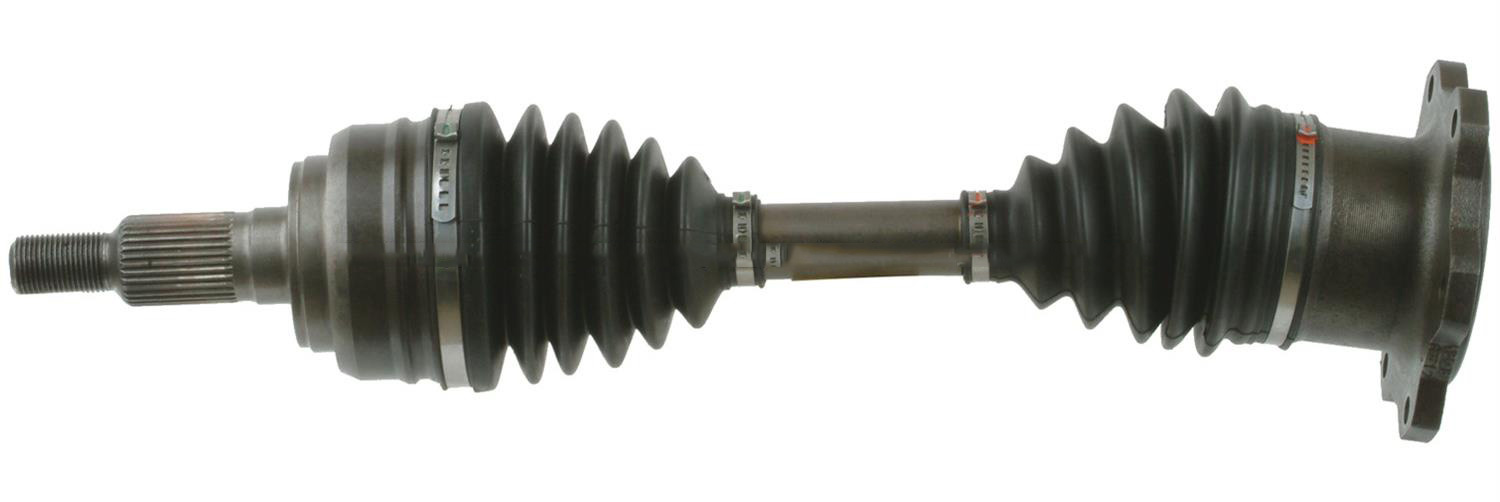

Cardone® 60-1009 CV Axle Assembly

Vehicle Info Required to Guarantee Fit For This partAdd Vehicle
Description

Remanufactured CV Axle Assembly

Manufacturer’s Warranty : 2 Year Limited Warranty

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

$65.88 $73.20 10% Off

+$1.80 Refundable Core Deposit

Only 2 left in stock - order soon.

SKU A1601009
Brand Cardone®
Part Name CV Axle Assembly
Part # 60-1009
UPC # 00082617474153
Quantity Per Vehicle 1
Pack of 1
Condition Remanufactured
  • Fast Shipping
    We ship fast so you can get on the road that much faster
  • 100% Safety
    Only secure payments

Product Description

Cardone® 60-1009 CV Axle Assembly

Remanufactured CV Axle Assembly

CARDONE has extensive experience in remanufacturing CV Drive Axles – weve spent over three decades re-engineering materials and processes to arrive at a superior, longer-lasting product. Our proprietary pneumatic clamping machines create a perfect seal between the boot and housing, creating a water-tight seal. The perfect geometry of the ball groove is maintaine d to allow for proper grease flow, significantly increasing longevity. Additionally, all CV Drive Axle shafts are individually verified for straightness, resulting in vibration-free performance at all speeds.

Neoprene boots ensure excellent environmental stress resistance, which eliminates cracking - a leading cause of boot failure.

Boot clamps are pneumatically crimped, creating a perfect seal between the boot and housing.

High-quality grease withstands high-temperature and pressure extremes, which extends joint life.

High-tech grinding machines maintain the original design of the outer housing, race and cage to guarantee reliable performance.

CV Drive Axle shafts are inspected for run out to prevent vibration.

CV Drive Axle is measured after assembly to ensure proper fit.

Splines are chased to ensure proper fit of the axle into the mating hub and transmission, which eliminates installation hassles.

Threads are chased to ensure proper fit of the new retaining nut supplied with each CV Drive axle.

As a remanufactured Original Equipment part, this unit guarantees a perfect vehicle fit.

Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%.

PRODUCT ATTRIBUTE & INFO

ABS Tone Ring Included - No
Axle Nut Included - Yes
Axle Nut Length (IN) - 1.55
Axle Nut Length (MM) - 39.37
Axle Nut Socket Size (MM) - 21
Axle Nut Socket Size (IN) - 0.826
Axle Nut Thread Size - M24x2.0
Axle Nut Type - Hex
Boot Color - Black
Boot Material - Neoprene
Boot Rib Quantity - 5
Compressed Length (MM) - 533.4
Compressed Length (IN) - 21
CV Joints Included - Yes
Dynamic Damper Attached - No
Grade Type - Standard
Inboard Joint Mount Hole Quantity - 6
Inboard Joint Type - Bolt-on
Mount Type - Spline
Outboard Joint Type - Spline
Outboard Spline Quantity - 33
Shaft Diameter (IN) - 1.169
Shaft Diameter (MM) - 29.69
Shaft Material - Steel
Slip Yoke - No
Universal Joints Included - No
Package Contents - Complete axle; instruction sheet
Product Condition - Remanufactured
Contains Electronic Components - No
Does it require SDS - No
Is Item A Chemical - No
Is Or Contains A Battery - No
Is Or Contains A Bulb - No
Is Prop Sixty Five Affected - No
Is the item CARB affected - No
FAA_A1 - Shafts are inspected 100% for run out to prevent vibrations. only shafts that meet the specifications for run out are utilized in the remanufacturing of a cv drive axle assembly.
FAA_A2 - When the replacement drive axle was installed, the sensor ring, sensor, or sensor wiring on or near the axle was damaged, causing an erratic speed signal to the abs module and setting the light on.
FAA_A3 - The most likely cause is a defective or worn outer cv drive axle joint. it may be time to get it replaced.
FAA_A4 - The most likely cause is the drive train shifting in the chassis due to a broken engine mount or hardware, causing misalignment of the cv drive axle and causing the inner joint to bind or hang up.
FAA_A5 - The most likely problem is the outer cv drive axle boot has ruptured, causing the grease to leak out, allowing contamination (water and dirt) to enter and damage the joint.
FAA_A6 - The transaxle gear alignment has been lost. on some vehicles it will be necessary to disassemble the transaxle to properly align the output gears. always remove and install one cv drive axle at a time.
FAA_A7 - No! a prevailing torque lock nut should never be reused. always discard the old nut and install a new one.
FAA_A8 - Always use the proper press type tool to remove the old stub shaft. never strike the outer joint stub shaft with a hammer. it will damage the unit and possibly do damage to the hub bearing assembly.
FAA_A9 - Never use an impact wrench to install the retaining nut on the cv drive axle. always use a torque wrench and torque the nut to manufacture's specifications.
FAA_A10 - When replacing cv drive axle assemblies, always install new transaxle seals to avoid leaking.
FAA_A11 - Never allow the cv drive axles to hang unsupported. this can lead to axle separation and damage to the inner joint.
FAA_A12 - The most likely cause is a broken bearing cage due to excessive torque load. this is typically an outboard joint problem.
