Cardone®

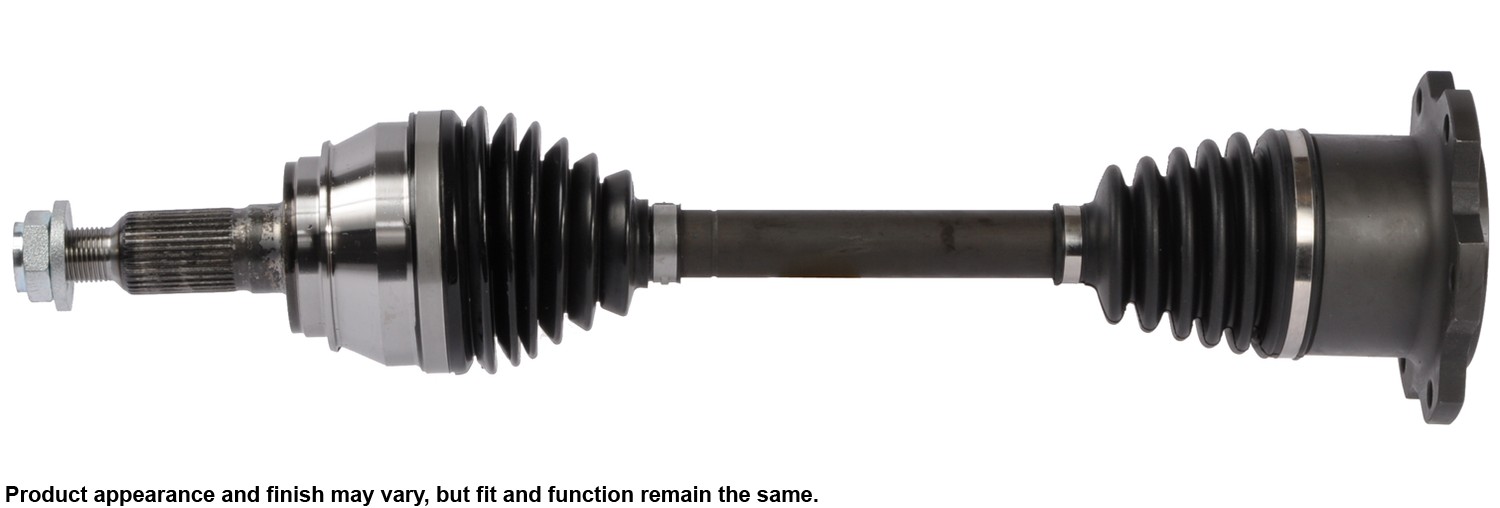

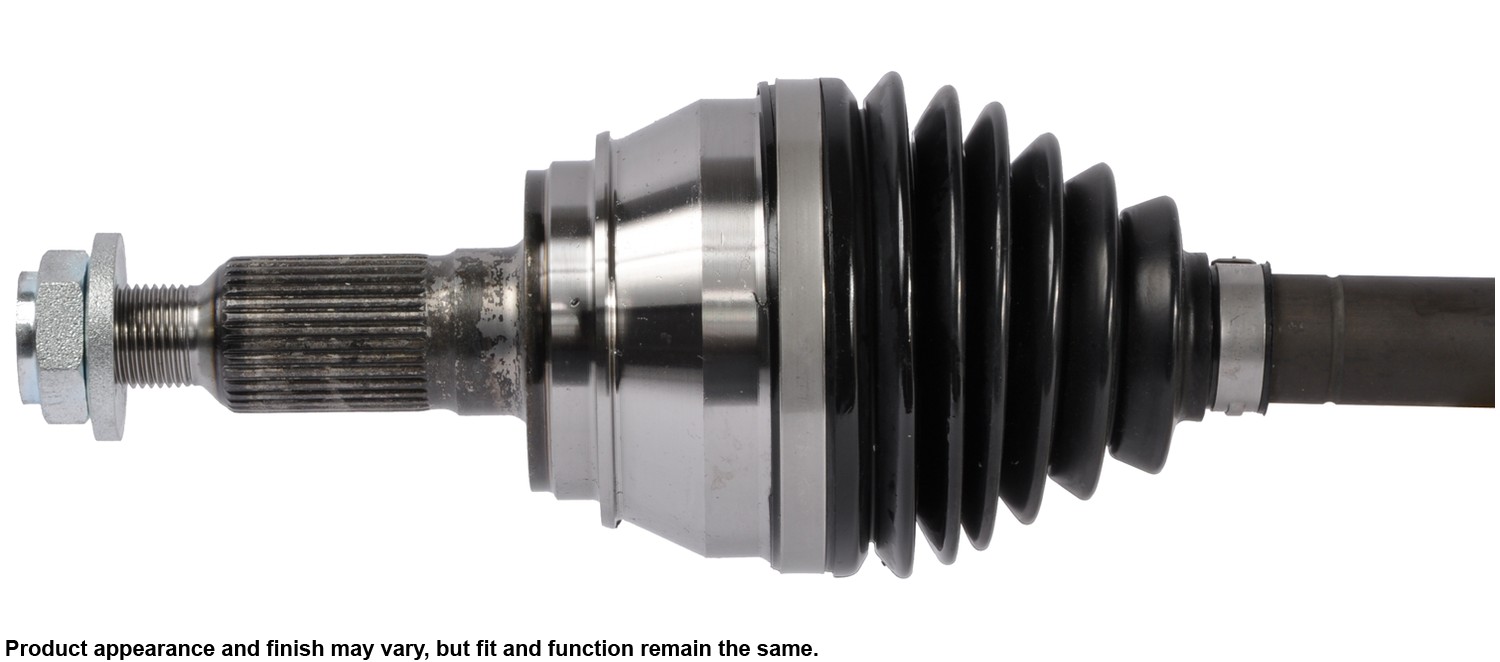

Cardone® 66-1430HD CV Axle Assembly

Vehicle Info Required to Guarantee Fit For This partAdd Vehicle
Description

CV Axle Assembly

Manufacturer’s Warranty : 2 Year Limited Warranty

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

$91.64 $101.82 10% Off

SKU A1661430HD
Brand Cardone®
Part Name CV Axle Assembly
Part # 66-1430HD
UPC # 00884548074644
Quantity Per Vehicle 1
Pack of 1
Condition New
  • Fast Shipping
    We ship fast so you can get on the road that much faster
  • 100% Safety
    Only secure payments

Product Description

Cardone® 66-1430HD CV Axle Assembly

New CV Axle Assembly

CV, CV Axle, CV Drive Axle, CV Axle Shaft, Halfshaft, Constant Velocity Axle, Constant Velocity Drive Axle, Axle Shaft

CARDONEs extensive experience in testing and engineering CV Drive Axles is the foundation behind our proprietary method of engineering a product that meets and even exceed O.E. performance. We have researched the reasons why original CVs typically fail and designed new solutions to avoid repeat failure. For example, our Neoprene boots are designed with additional bellows, when needed, to resist bellow stress and ozone cracking - the leading cause of boot failure. Additionally, all CV Drive Axle shafts are individually verified for straightness, resulting in vibration-free performance at all speeds.

A new axle retaining nut is supplied with every unit for a hassle-free installation, due to the likelihood that the original retaining nut is worn or stripped

Boot clamps are pneumatically crimped, creating a perfect seal between the boot and housing

CV Drive Axle measurements are validated after assembly to ensure a proper fit

CV Drive Axle part numbers with an “HD” suffix are severe-duty applications and include a thermoplastic outboard boot for increased life and durability versus a traditional neoprene boot.

High-quality grease withstands high-temperature and high-torque demands to ensure long-lasting, reliable performance

Neoprene boots are designed with additional bellows, when needed, to resist bellow stress and cracking, which is the leading cause of boot failure

Proprietary engineering processes ensure that all CV Drive Axles meet O.E. form, fit and function

Splines are precision rolled to ensure proper fit of CV Drive Axle into the mating hub and transmission, which eliminates installation hassles

Threads are precision rolled to ensure proper fit when axle nut is installed

Transmission seal diameter is precision-machined after heat treatment to ensure correct surface finish, promoting long seal life

PRODUCT ATTRIBUTE & INFO

Package Contents - Complete axle, instruction sheet
Product Condition - New
Spindle Nut Included - Yes
Axle Nut Locking Type - Self-lock
ABS Ring Included - Yes
Input Shaft Connection Style - Bolt-on
Output Shaft Connection Style - Splined
FAQs - Always use the proper press type tool to remove the old stub shaft. never strike the outer joint stub shaft with a hammer. it will damage the unit and possibly do damage to the hub bearing assembly.
FAQs - Never allow the cv drive axles to hang unsupported. this can lead to axle separation and damage to the inner joint.
FAQs - Never use an impact wrench to install the retaining nut on the cv drive axle. always use a torque wrench and torque the nut to manufacture's specifications.
FAQs - No! a prevailing torque lock nut should never be reused. always discard the old nut and install a new one.
FAQs - Shafts are inspected 100% for run out to prevent vibrations.  only shafts that meet the specifications for run out are utilized in the remanufacturing of a cv drive axle assembly.
FAQs - The most likely cause is a broken bearing cage due to excessive torque load.  this is typically an outboard joint problem.
FAQs - The most likely cause is a defective or worn outer cv drive axle joint. it may be time to get it replaced.
FAQs - The most likely cause is the drive train shifting in the chassis due to a broken engine mount or hardware, causing misalignment of the cv drive axle and causing the inner joint to bind or hang up.
FAQs - The most likely problem is the outer cv drive axle boot has ruptured, causing the grease to leak out, allowing contamination (water and dirt) to enter and damage the joint.
FAQs - The transaxle gear alignment has been lost. on some vehicles it will be necessary to disassemble the transaxle to properly align the output gears. always remove and install one cv drive axle at a time.
FAQs - When replacing cv drive axle assemblies, always install new transaxle seals to avoid leaking.
FAQs - When the replacement drive axle was installed, the sensor ring, sensor, or sensor wiring on or near the axle was damaged, causing an erratic speed signal to the abs module and setting the light on.
Compressed Length (in) - 22.875
Show All
Compatible Vehicles
Click on make to find vehicles fitment.

Alternate/OEM Part Number(s)

Vehicle fitment summary

Cadillac Escalade 2018-07, Escalade ESV 2018-07, Escalade EXT 2013-07; Chevrolet Avalanche 2012-07, Cheyenne 2013-07, Silverado 1500 2018-07, Suburban 2018-15, Suburban 1500 2014-07, Tahoe 2018-07; GMC Sierra 1500 2017-07, Yukon 2018-07, Yukon XL 2018-15,
