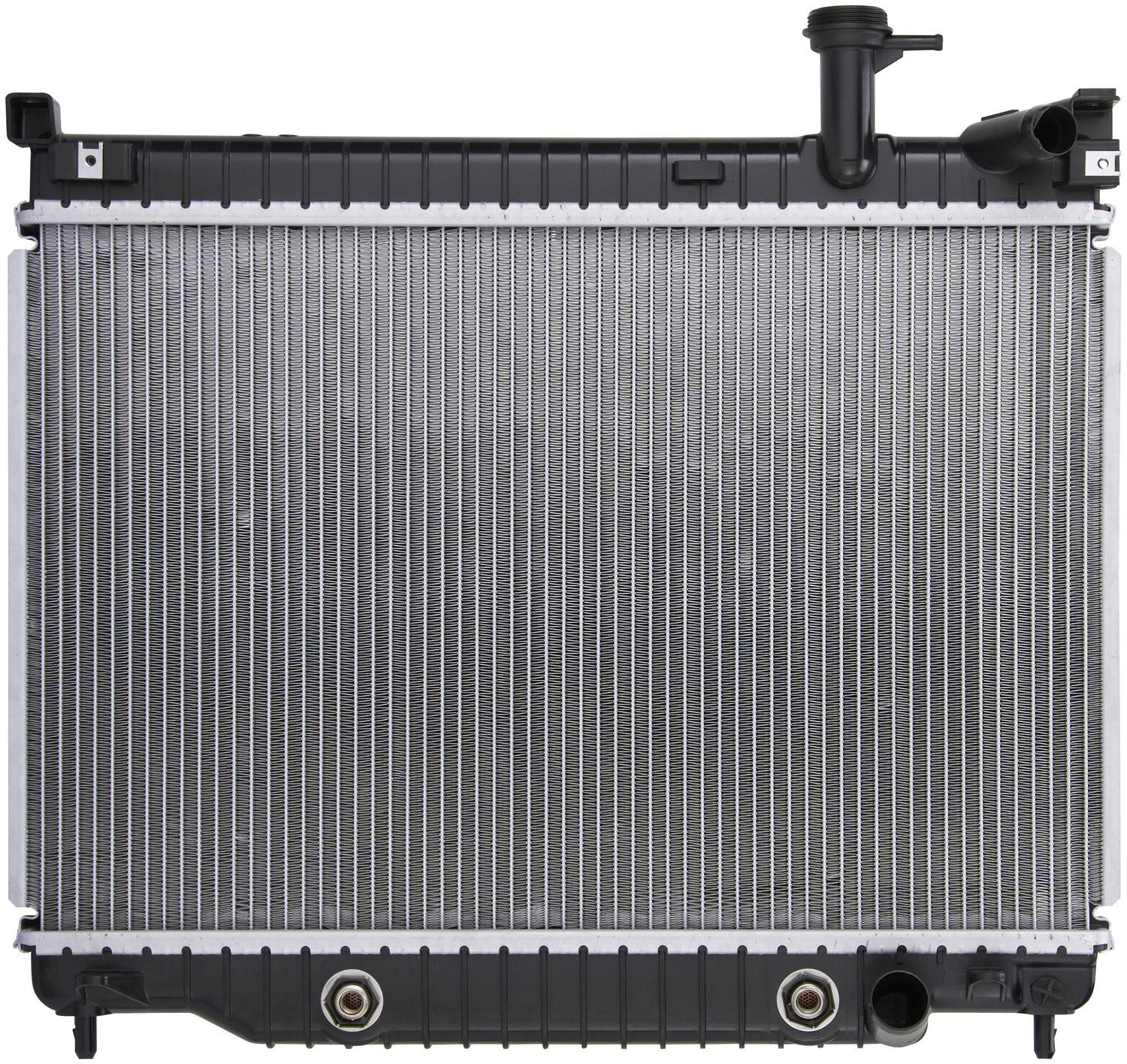

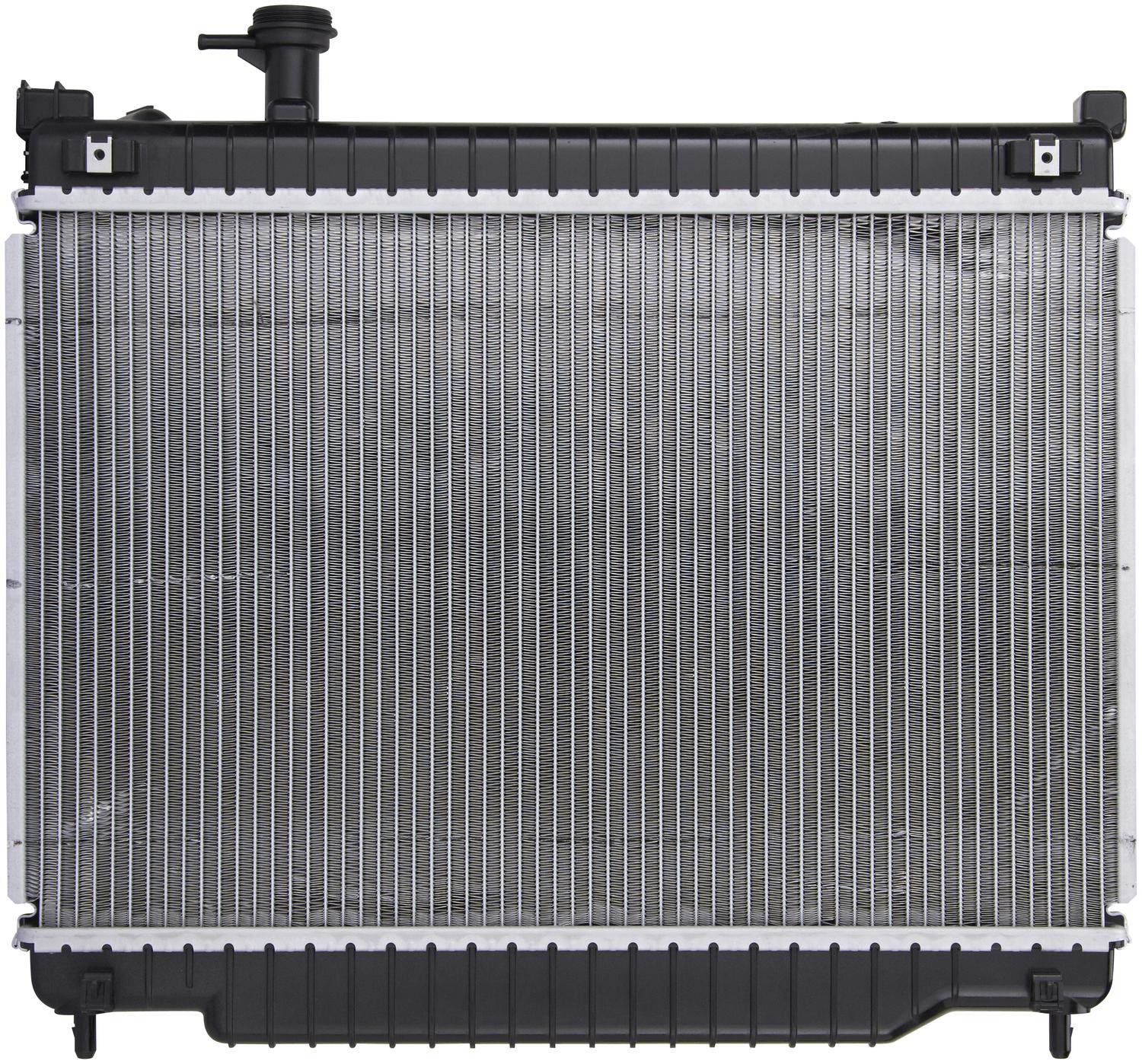

Reach Cooling® 41-2563 Radiator
Manufacturer #41-2563
Reach Cooling® 41-2563 Radiator
Manufacturer #41-2563
$165.07
$179.42
Save $14.35 (8%)
Only 2 left in stock – order soon
Get it between Wed, Sep 10 - Fri, Sep 12, 2025
Does This Fit? Add Vehicle to Guarantee Fit!
Add vehicleFree & Fast Shipping
We ship fast so you can get on the road that much faster100% Safety
Only secure payments| SKU | 3R412563 |
|---|---|
| Brand | Reach Cooling® |
| Part Name | Radiator |
| Part | # 41-2563 |
| Quantity Per Vehicle | 1 |
| Pack of | 1 |
| Condition | New |
| Manufacturer’s Warranty | Limited Lifetime |
-
Buick
-
Chevrolet
-
Gmc
-
Isuzu
-
Saab
- Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
- Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
- Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
- Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
- Folded fin edges increase stability and heat disbursement properties.
- Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
- Our included 'multi-fit' attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
- We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
- Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
- We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
- Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
- No Shipping Restriction
- Radiator
- A global leader in the manufacture and distribution of aftermarket cooling products for automotive, heavy truck, and industrial applications. Specialized in the production of OE-quality Radiators, Condensers, and Charge Air Coolers for US and international markets, covering over 10,000 part numbers worldwide. Reach Cooling is headquartered in Miami, Florida, with additional distribution centers in Los Angeles, California and a manufacturing plant in Shanghai, China.
- Reach Radiators offer one of the largest product ranges in the aftermarket, covering more than 95% of the popular automotive and light truck applications. Reach Radiators meet or exceed original equipment specifications, ensuring that products fit and perform just as well or better than the original parts, providing you peace of mind.
- Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
- Our fin edges are folded for increased stability and heat disbursement properties.

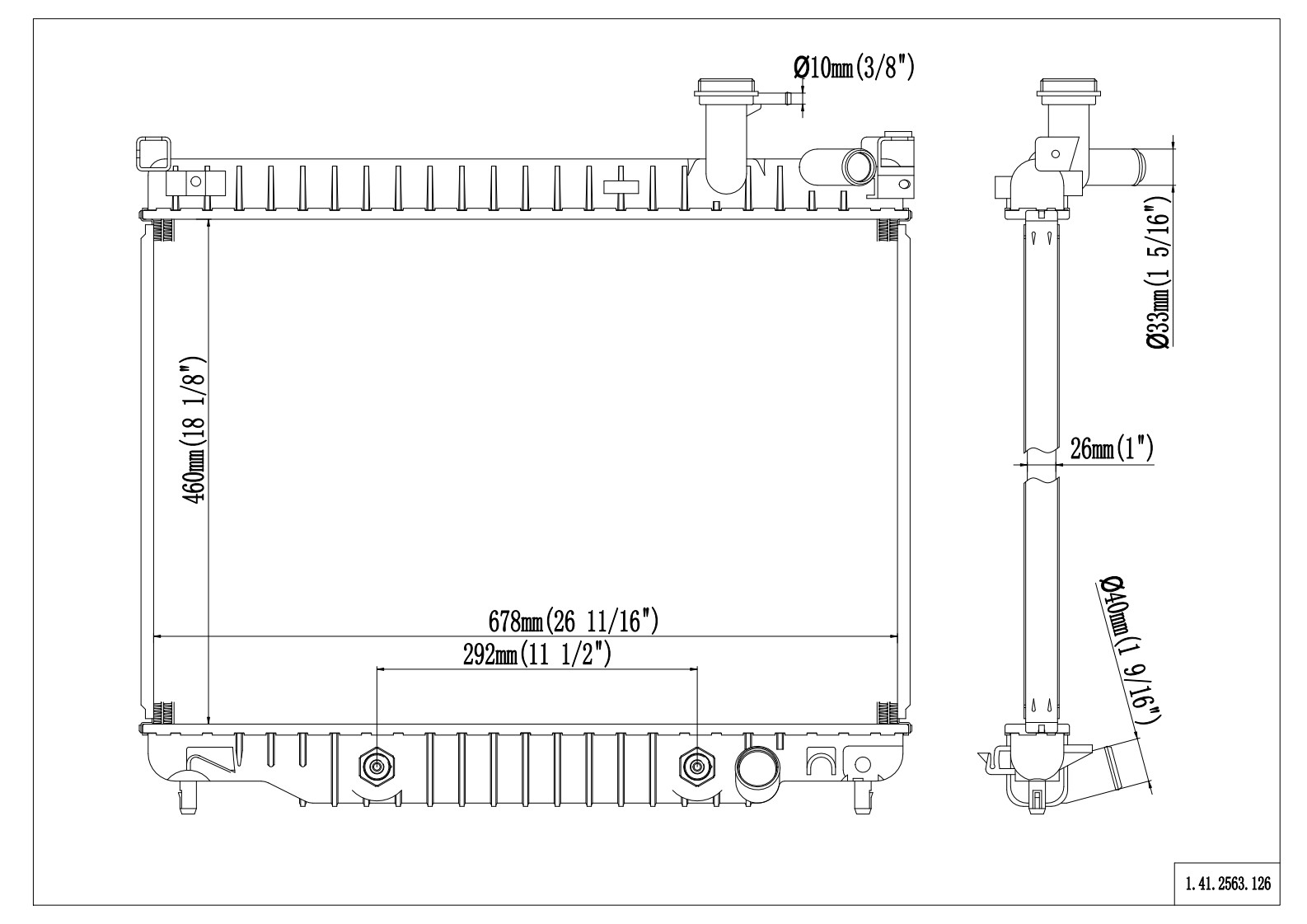

| Core Height (MM) | 460.375 |
|---|---|
| Core Thickness (MM) | 25.4 |
| Outlet Diameter (MM) | 39.674 |
| Core Height (in) | 18.125 |
| Inlet Header Length (IN) | 27.562 |
| Outlet Header Width (MM) | 60.3 |
| Transmission Oil Cooler Type | Plated |
| Transmission Oil Cooler Distance between Fittings (MM) | 292.1 |
| Inlet Diameter (IN) | 1.312 |
| Core Row Quantity | 1 |
| Engine Oil Cooler Included | No |
| Outlet Header Length (MM) | 700.074 |
| Inlet Diameter (MM) | 33.324 |
| Core Material | Aluminum |
| Transmission Oil Cooler Distance between Fittings (IN) | 11.5 |
| Down Flow Or Cross Flow Type | Down flow |
| Outlet Location | Lower right |
| Transmission Oil Cooler Included | Yes |
| Radiator Cap Included | No |
| Core Width (MM) | 677.3 |
| Outlet Header Length (IN) | 27.562 |
| Outlet Header Length (MM) | 700.1 |
| Outlet Diameter (IN) | 1.562 |
| Inlet Header Length (MM) | 700.074 |
| Outlet Header Width (MM) | 60.325 |
| Tank Material | Plastic |
| Inlet Header Width (IN) | 2.375 |

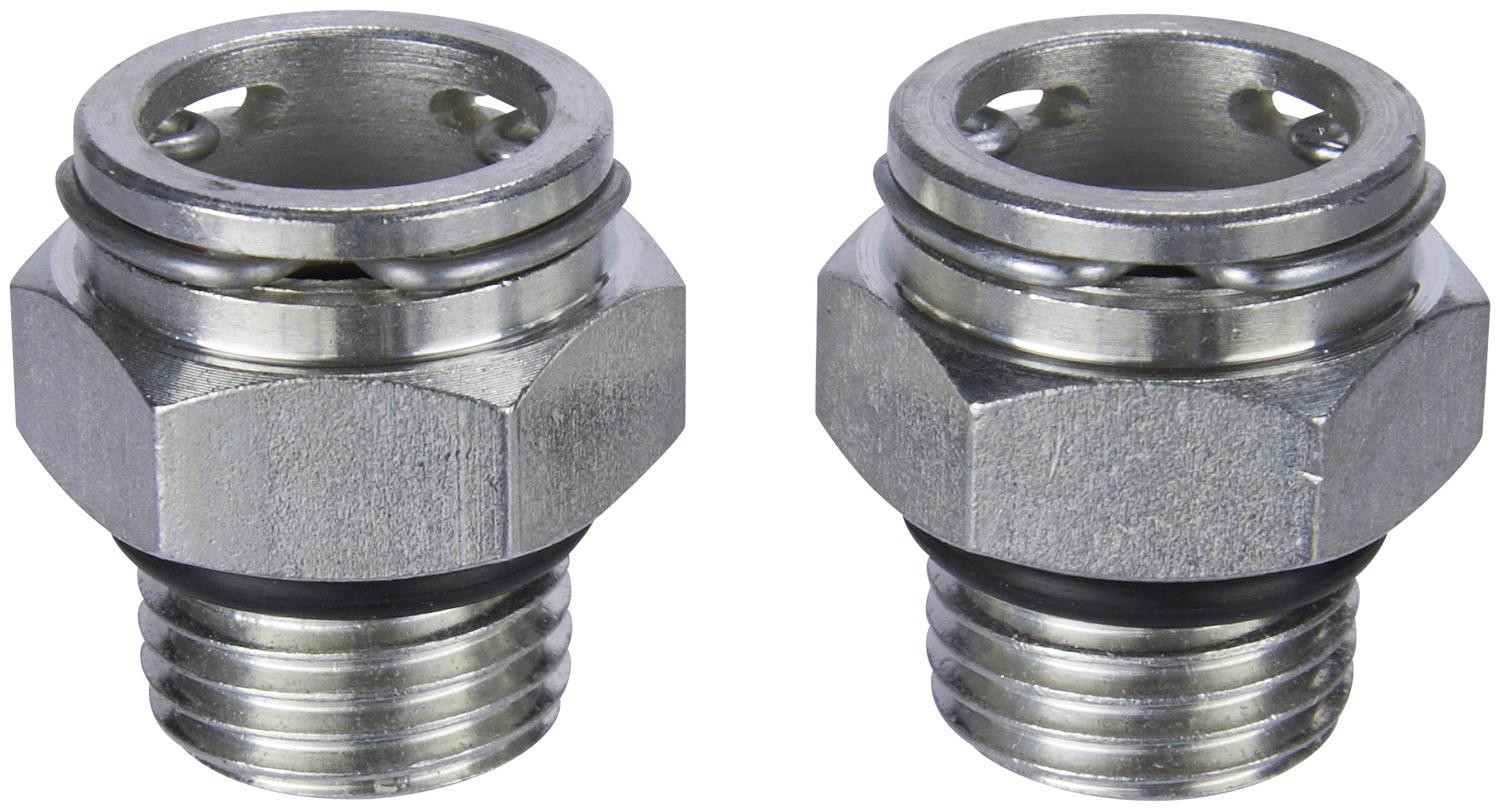

| Transmission Oil Cooler Fitting Type | Quick connect |
| Inlet Diameter (MM) | 33.3 |
| Inlet Location | Upper right |
| Core Width (MM) | 677.316 |
| Trans Cooler Adapter Fittings Included (True/False) | True |
| Core Width (in) | 26.666 |
| Inlet Header Length (MM) | 700.1 |
| Fitting Connection Type | Quick connect |
| Inlet Header Width (MM) | 60.325 |
| Core Height (MM) | 460.4 |
| Core Thickness (IN) | 1 |
| Core Thickness (MM) | 26 |
| Inlet Header Width (MM) | 60.3 |
| Outlet Header Width (IN) | 2.375 |
| Outlet Diameter (MM) | 39.7 |
