TYC Radiator Assembly

Manufacturer’s Warranty : Limited Lifetime for non-commercial use

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

Place Your Order by 1:00 PM EST, It Will Be Ship Today!

$292.45 ~~$317.88~~ 8% Off

Only 6 left in stock - order soon.

Product Description

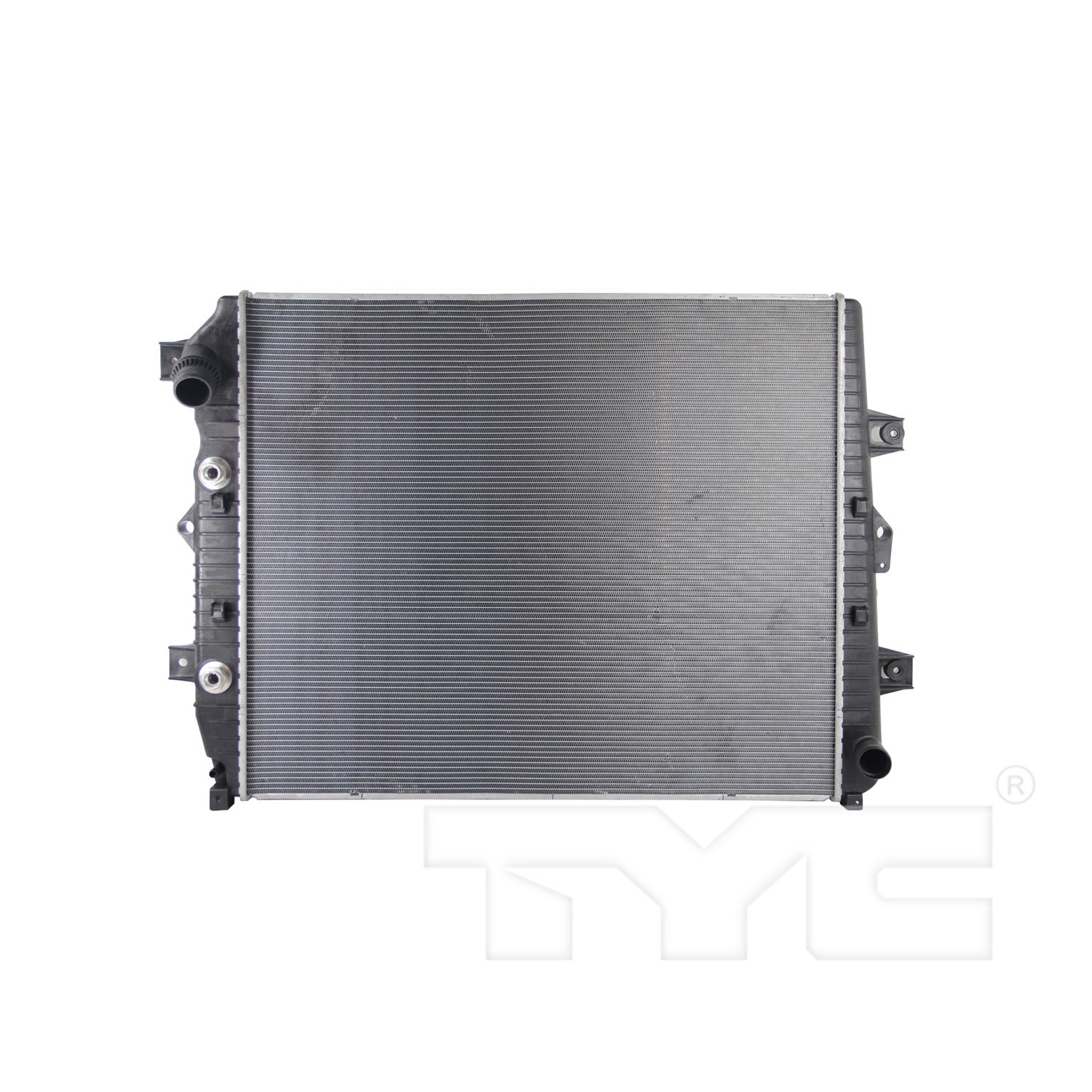

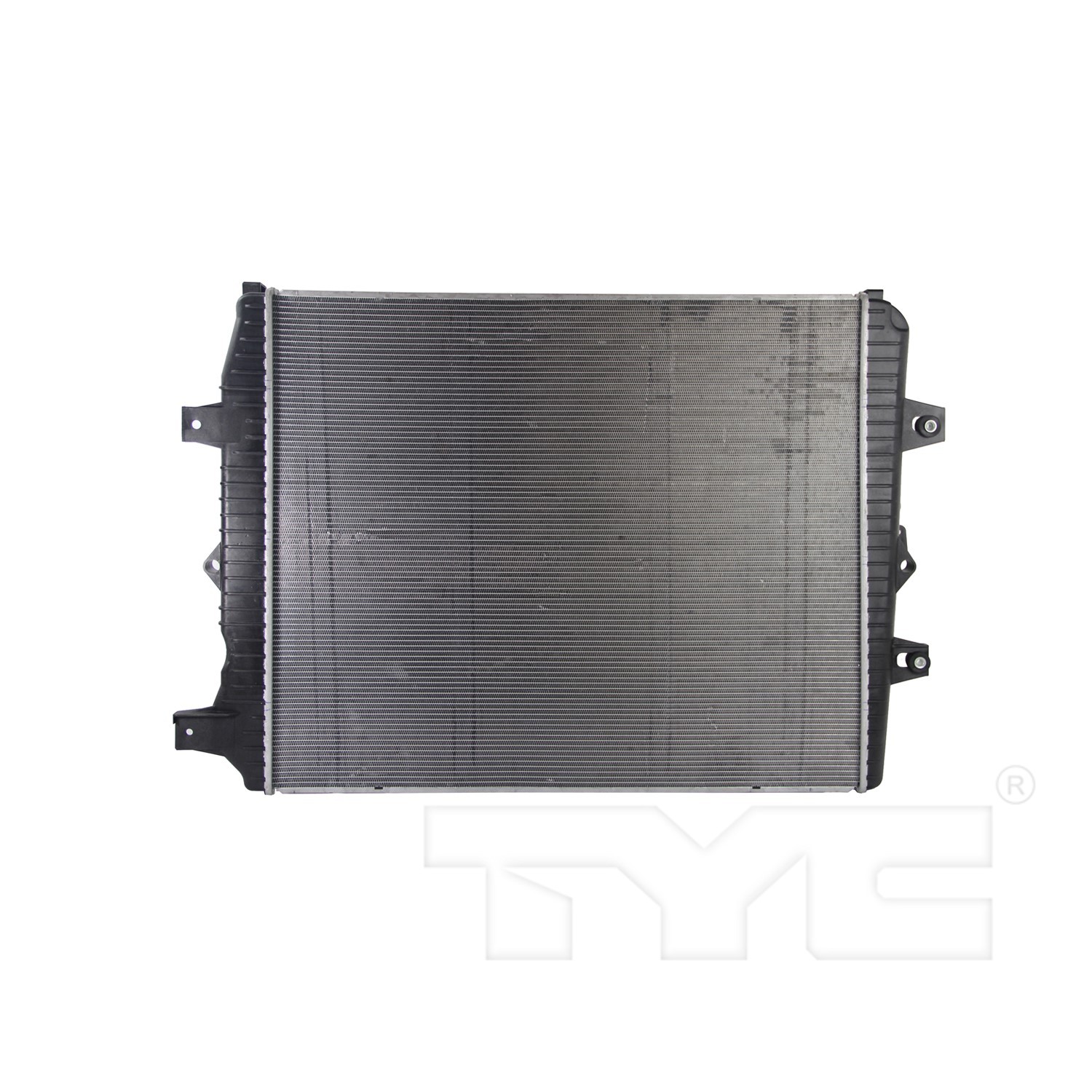

TYC® 13244 Radiator

11-16 CV SLVRD/GC SIERA 2500/3500 HD 6.6L DIESEL (W/ TOC) 1R PA RAD (AF/13399)

OE-comparable core dimensions to achieve sufficent surface area for optimal cooling.

Rigorous and accelerated cycling tests to ensure product service quality and durability.

Individually leak-tested to ensure product has no leaks.

Outlet Diameter (in)	-	2.04
Inlet Diameter (in)	-	1.81
Inlet Connection Type	-	Hose clamp
Total Fin Row Count	-	91
Tube Width X Height	-	22x1.5
Fin Wave Height (in)	-	0.25

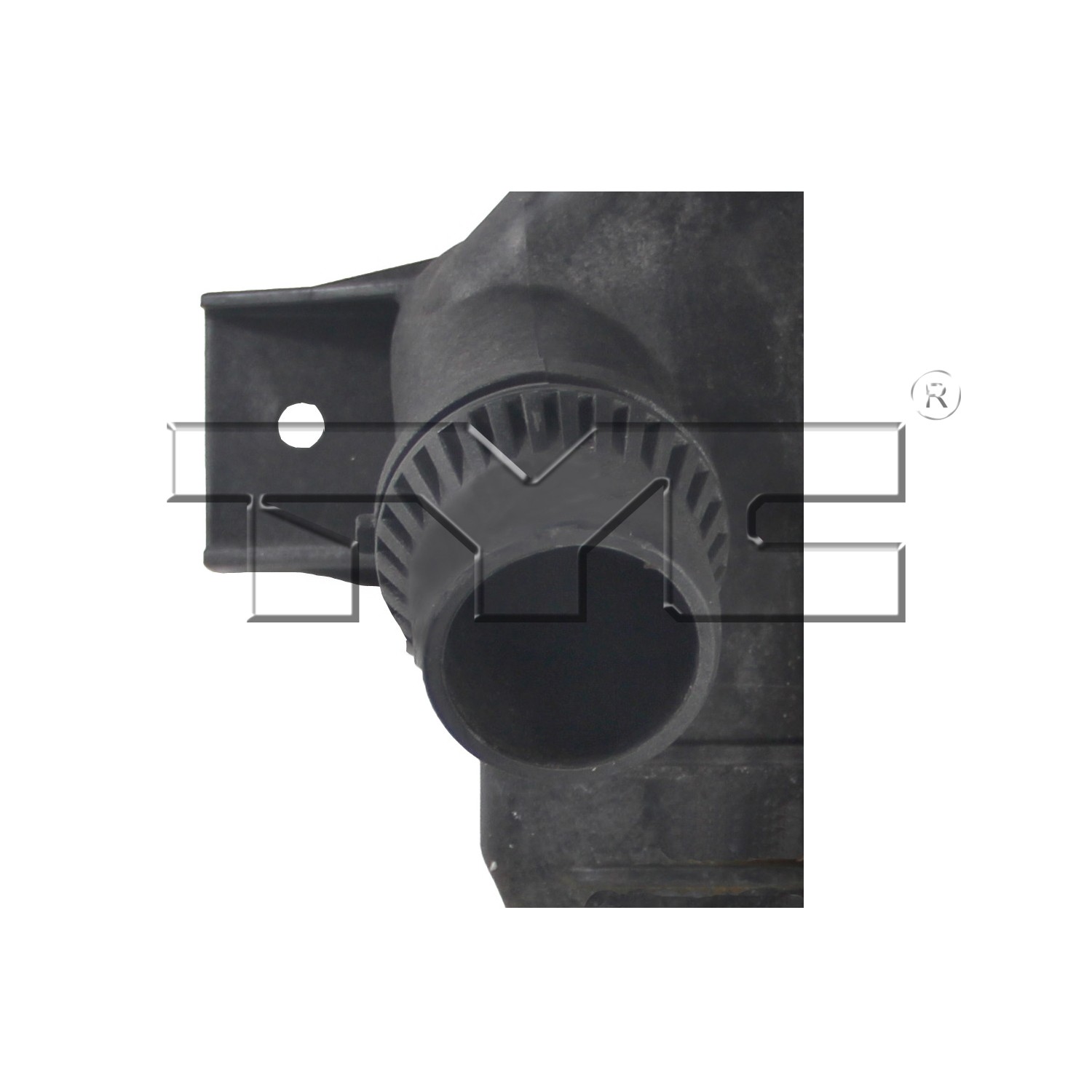

Outlet Connection Type	-	Quick connect (spring lock)

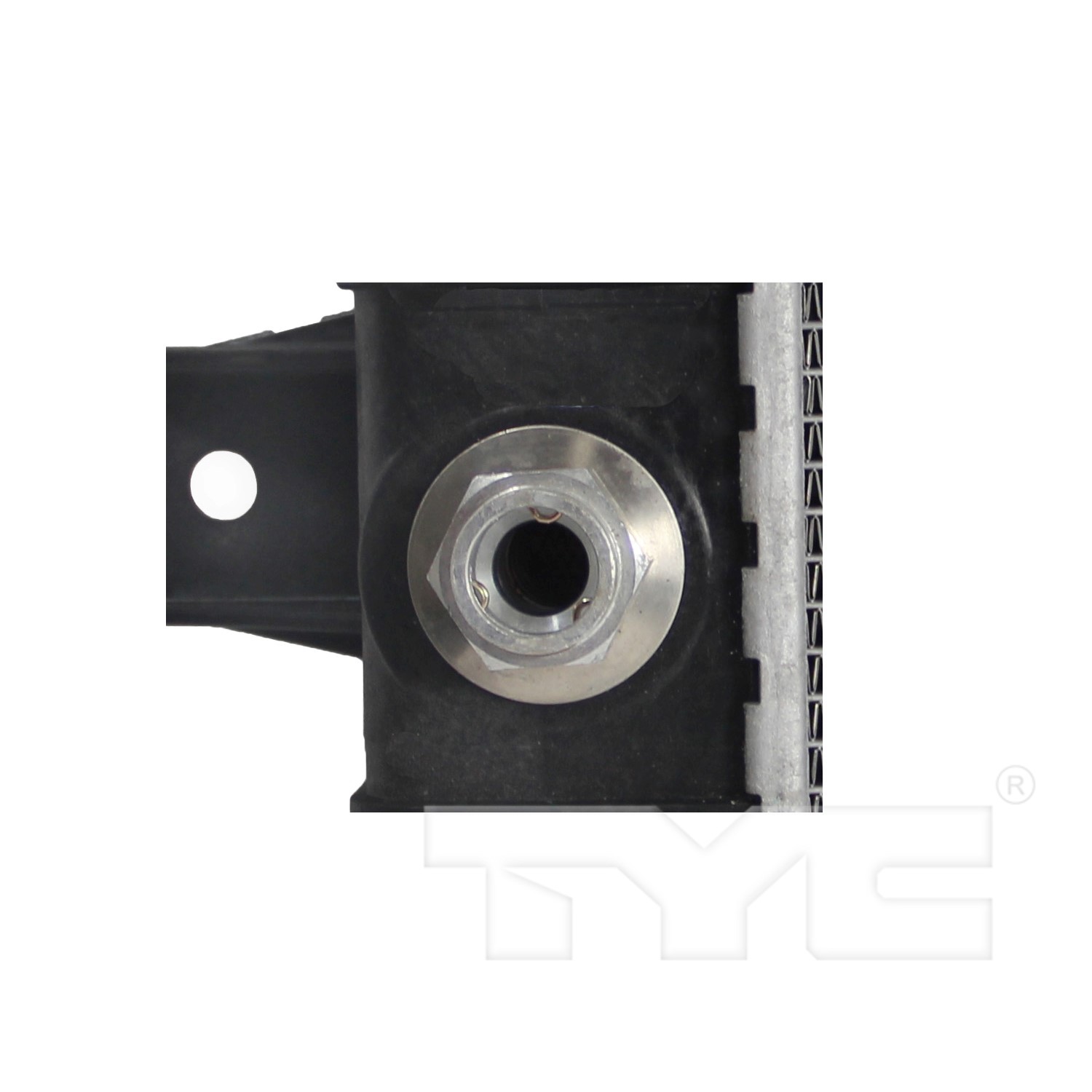

Toc Inlet Type	-	Quick connect
Find Wave Pitch	-	3
Toc Inlet Diameter (in)	-	0.63
Fin Count (every 4")	-	68
Toc Outlet Type	-	Quick connect
Tube Count (every 4")	-	13

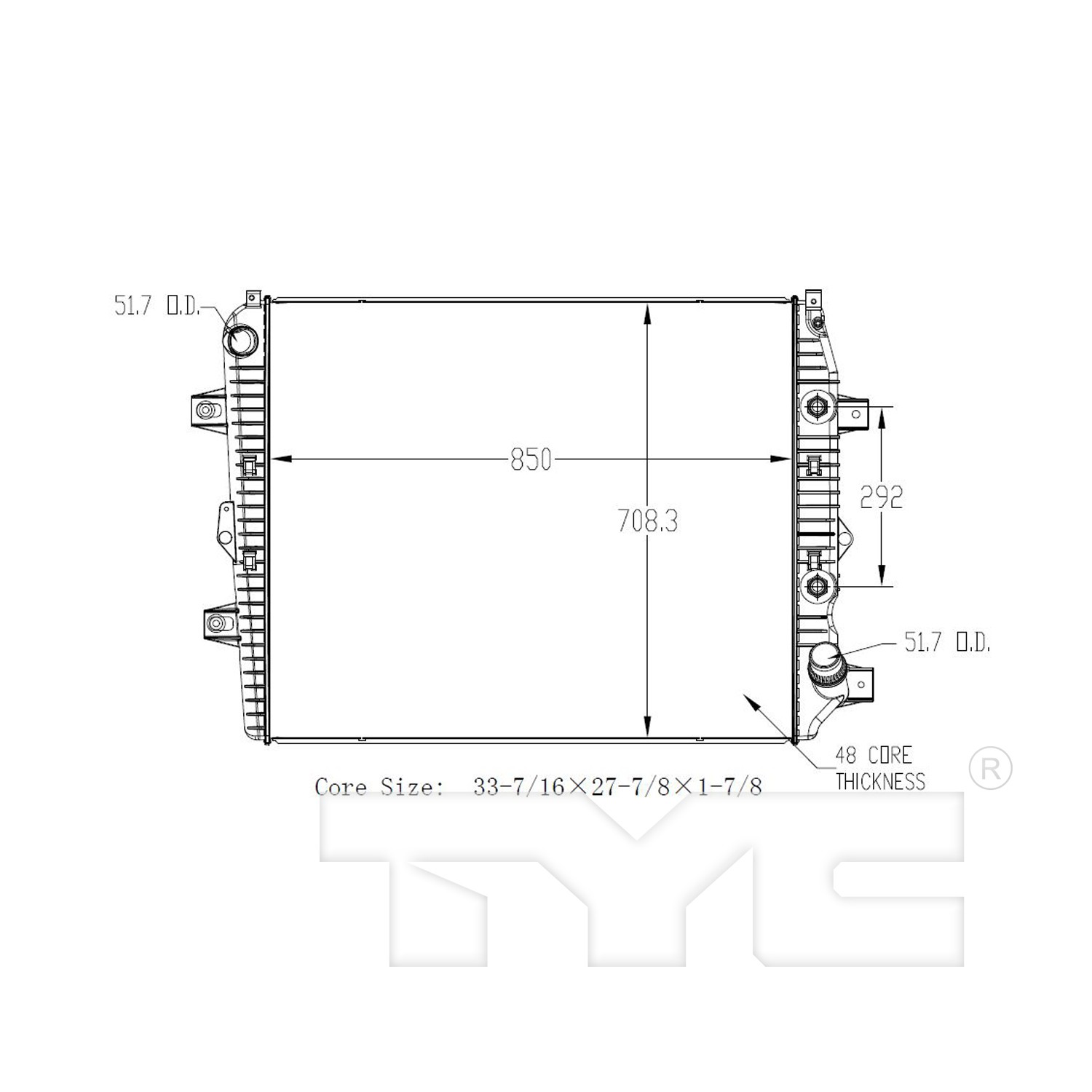

Core Length (in)	-	33.46
Toc Distance (in)	-	11.50
Top Header	-	2.87x28.54
Flow Configuration	-	Crossflow
Core Material	-	Aluminum
Bottom Header	-	2.87x28.54
Core Thickness (in)	-	1.89
Toc Outlet Diameter (in)	-	0.63
Transmission Oil Cooler Included	-	Yes
Transmission Oil Cooler Type	-	Plate oil cooler
Total Tube Count	-	90
Core Height (in)	-	27.89
Engine Oil Cooler Included	-	No
No. Of Rows	-	1
