TYC Radiator Assembly

Manufacturer’s Warranty : Limited Lifetime for non-commercial use

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

$135.90 ~~$151.00~~ 10% Off

Only 1 left in stock - order soon.

Product Description

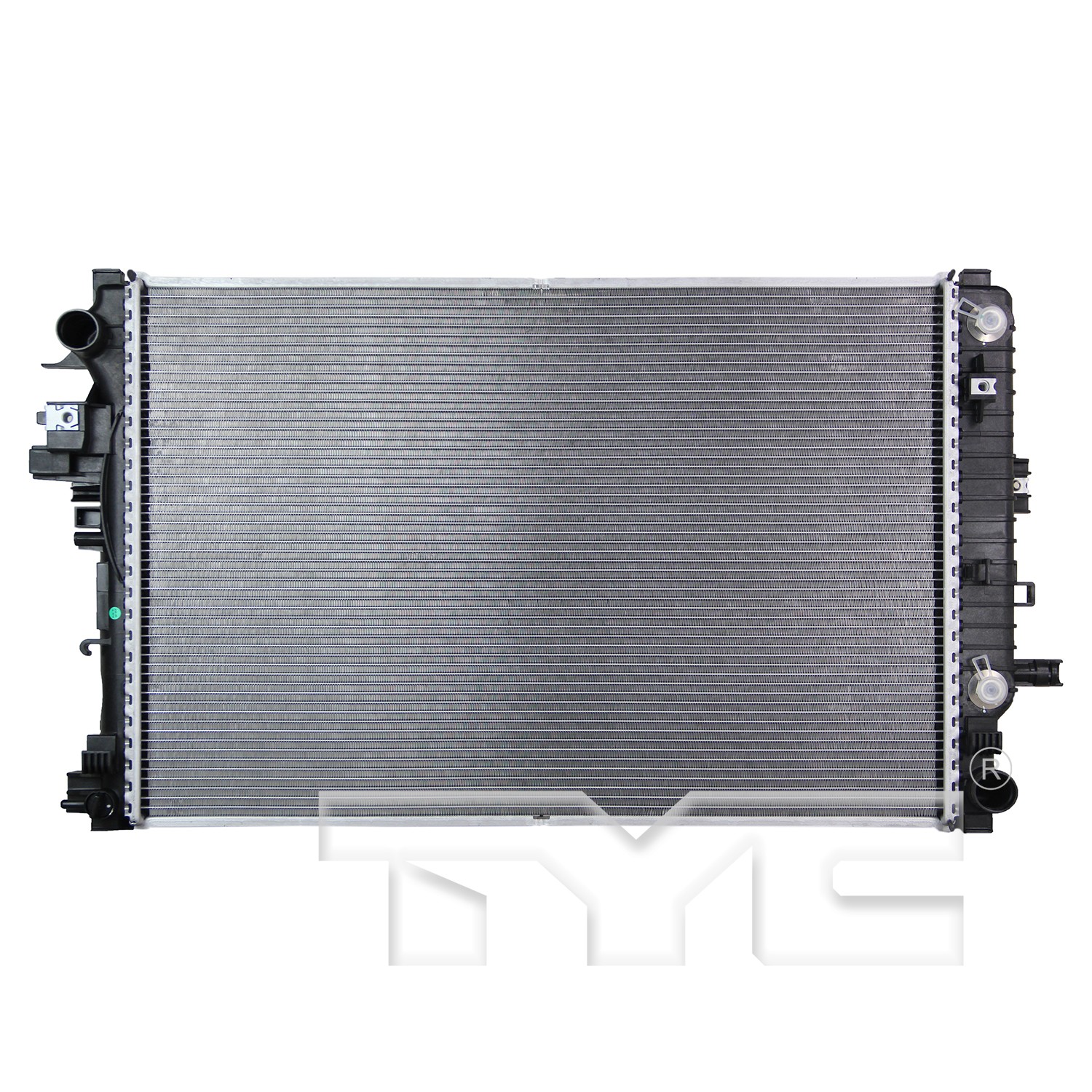

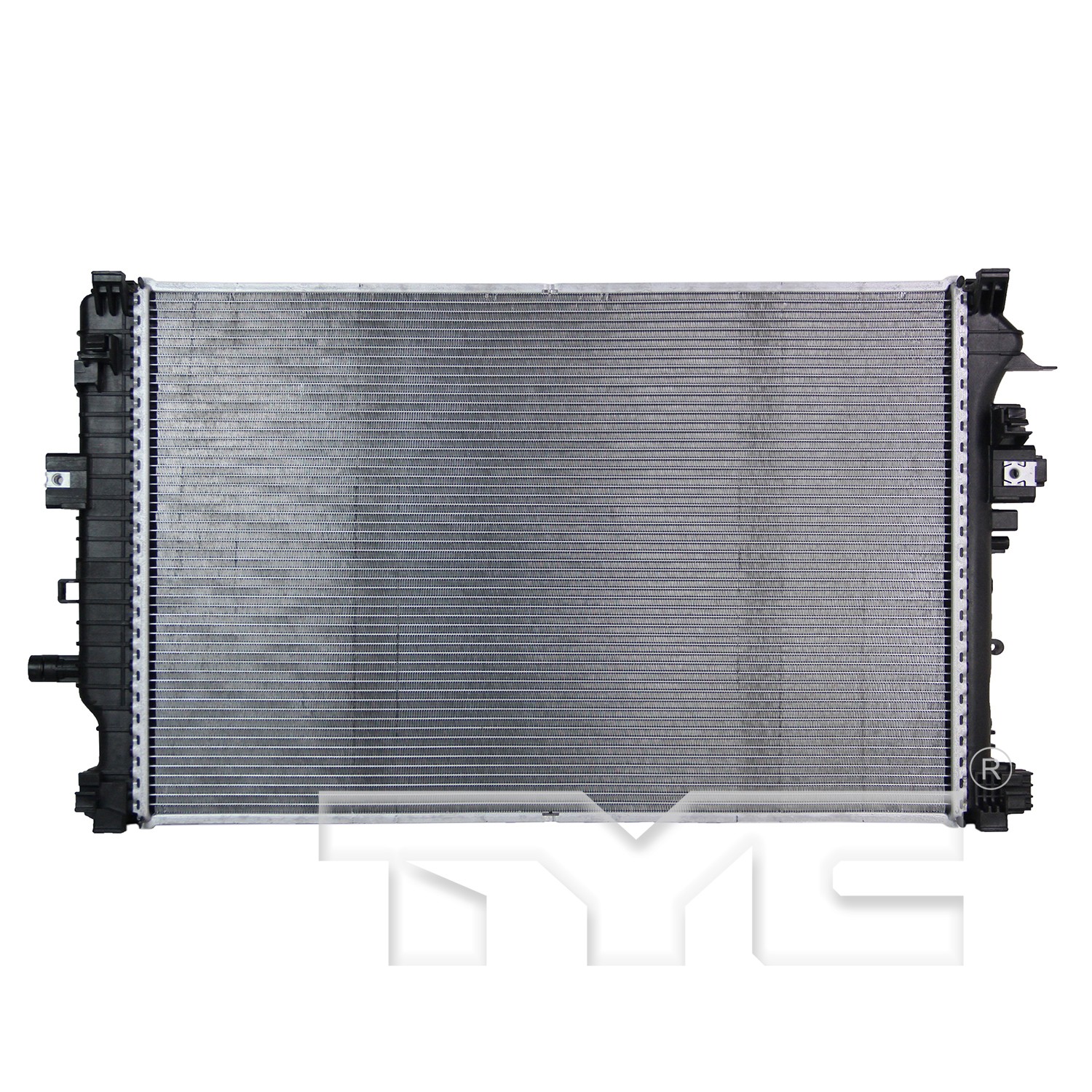

TYC® 13574 Radiator

16-18 CV MLIBU 1.5L L4 TUR AT 1R PA RAD

OE-comparable core dimensions to achieve sufficent surface area for optimal cooling.

Rigorous and accelerated cycling tests to ensure product service quality and durability.

Individually leak-tested to ensure product has no leaks.

Tube Width X Height	-	26x1.5
Toc Outlet Type	-	Quick connect
Toc Inlet Diameter (in)	-	0.37
Transmission Oil Cooler Type	-	Plate oil cooler
Transmission Oil Cooler Included	-	Yes
Toc Outlet Diameter (in)	-	0.37
Engine Oil Cooler Included	-	No
Core Length (in)	-	25.98
Flow Configuration	-	Crossflow
Core Material	-	Aluminum
Outlet Diameter (in)	-	1.34
Total Tube Count	-	55
Inlet Connection Type	-	Hose clamp
Core Height (in)	-	17.14
Toc Distance (in)	-	11.81
No. Of Rows	-	1
Total Fin Row Count	-	56
Bottom Header	-	2.04x17.61
Core Thickness (in)	-	1.02
Fin Count (every 4")	-	92
Top Header	-	2.04x17.61
Fin Wave Height (in)	-	0.25
Inlet Diameter (in)	-	1.34
Find Wave Pitch	-	2.2
Toc Inlet Type	-	Quick connect
Outlet Connection Type	-	Hose clamp
Tube Count (every 4")	-	13
