TYC Radiator Assembly

Manufacturer’s Warranty : Limited Lifetime for non-commercial use

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

$108.42 ~~$120.47~~ 10% Off

Only 1 left in stock - order soon.

Product Description

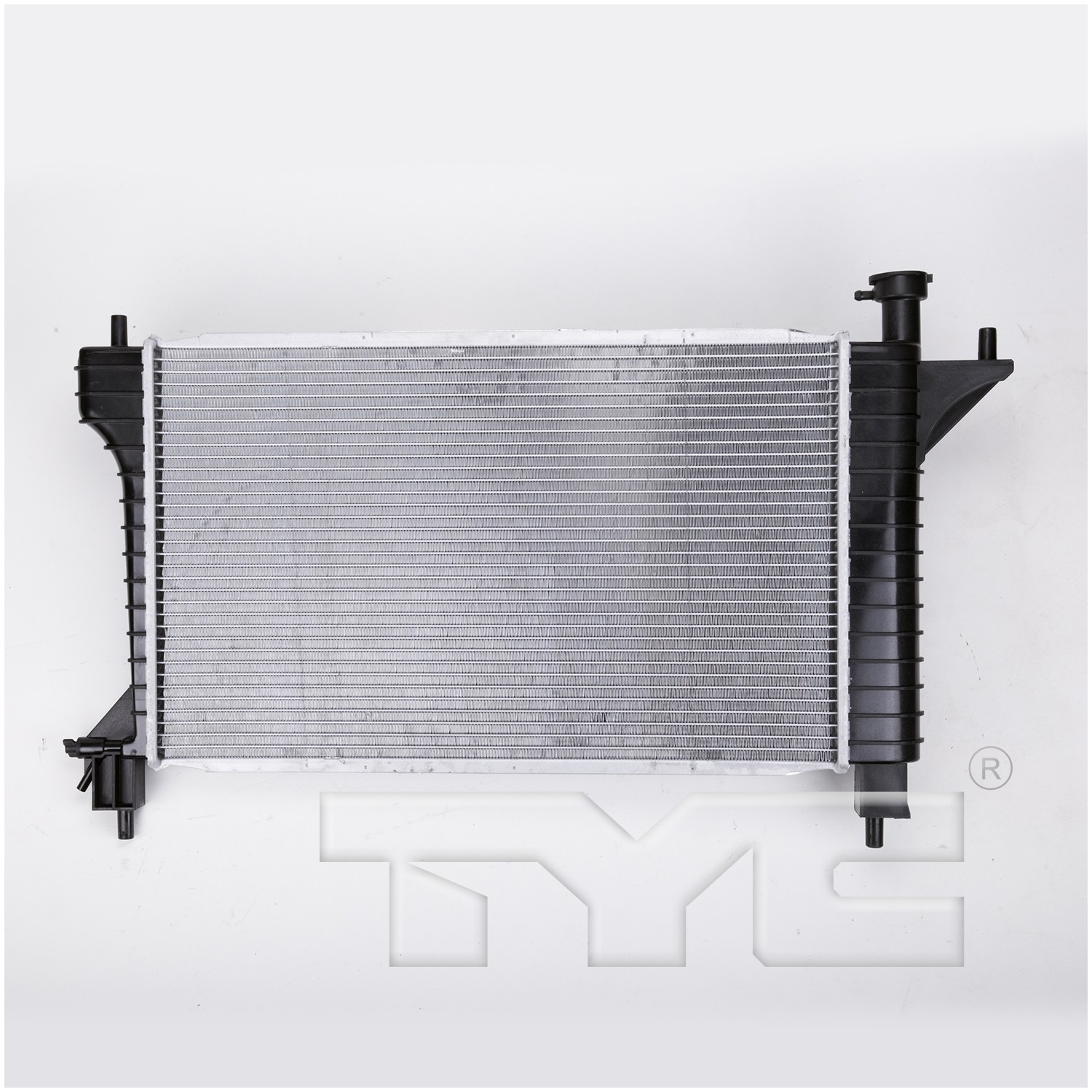

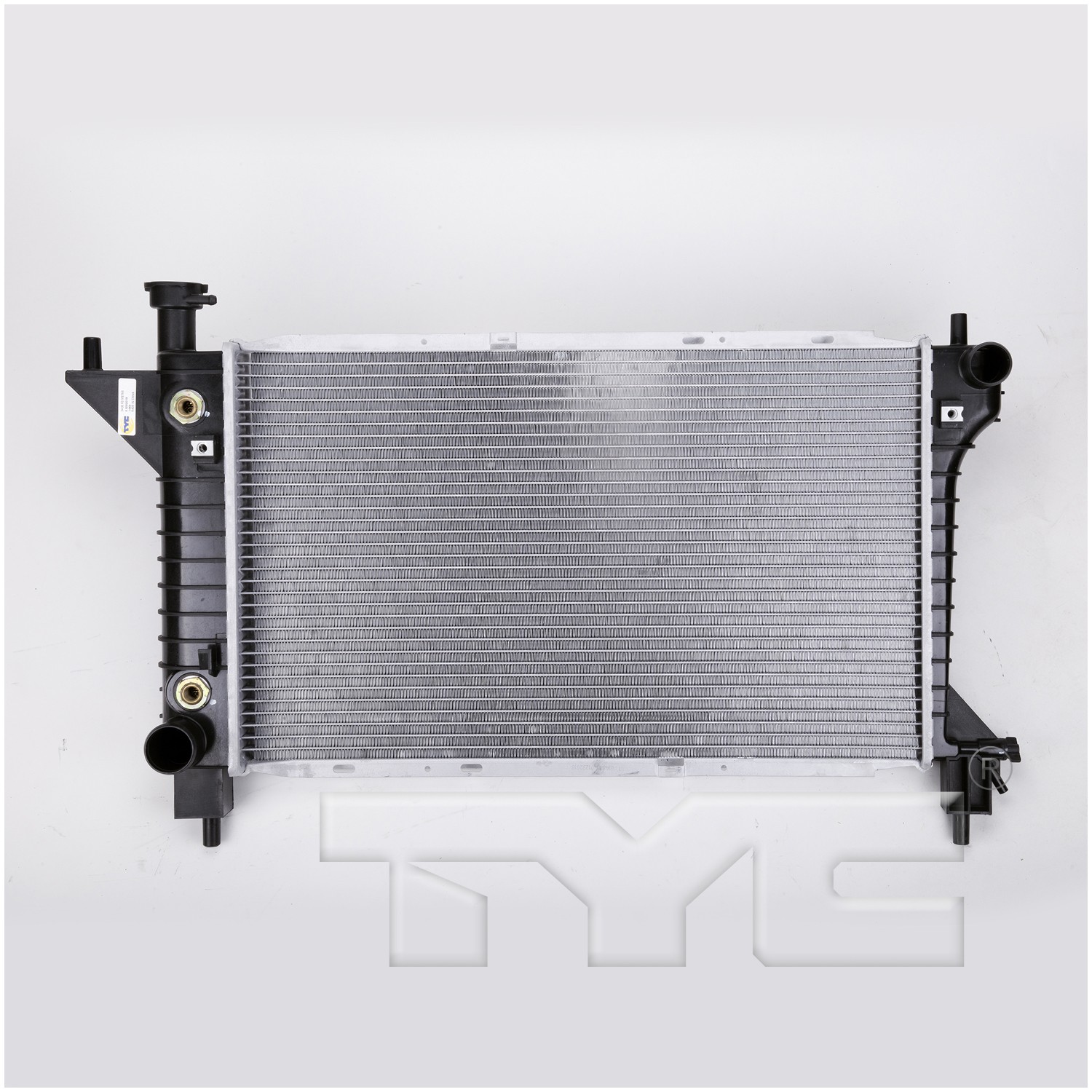

TYC® 1488 Radiator

94-96 FD MSTNG 3.8/5.0L V6/V8 AT 1R PA RAD

OE-comparable core dimensions to achieve sufficent surface area for optimal cooling.

Rigorous and accelerated cycling tests to ensure product service quality and durability.

Individually leak-tested to ensure product has no leaks.

Engine Oil Cooler Included	-	No
Transmission Oil Cooler Included	-	Yes
Core Material	-	Aluminum
Flow Configuration	-	Crossflow
Total Tube Count	-	33
Core Height (in)	-	14.65
Tube Count (every 4")	-	10
Outlet Connection Type	-	Hose clamp

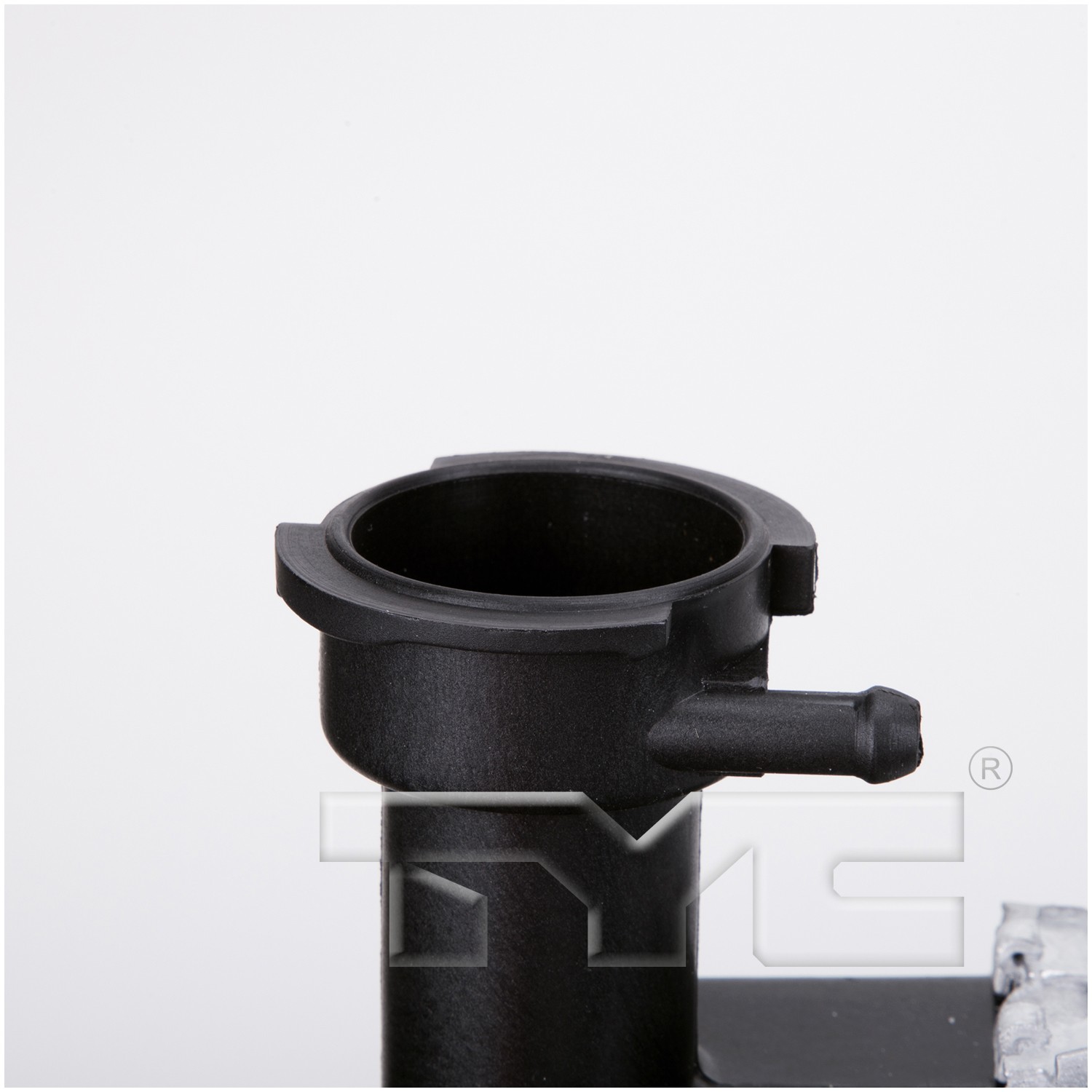

Inlet Diameter (in)	-	1.50
Core Thickness (in)	-	1.02
Fin Wave Height (in)	-	0.35
Top Header	-	1.94x15.23
Accessories Included	-	Oc adapters (1/2'-2 unf) and speed nut (m6 x p1.) and clip for s.p.

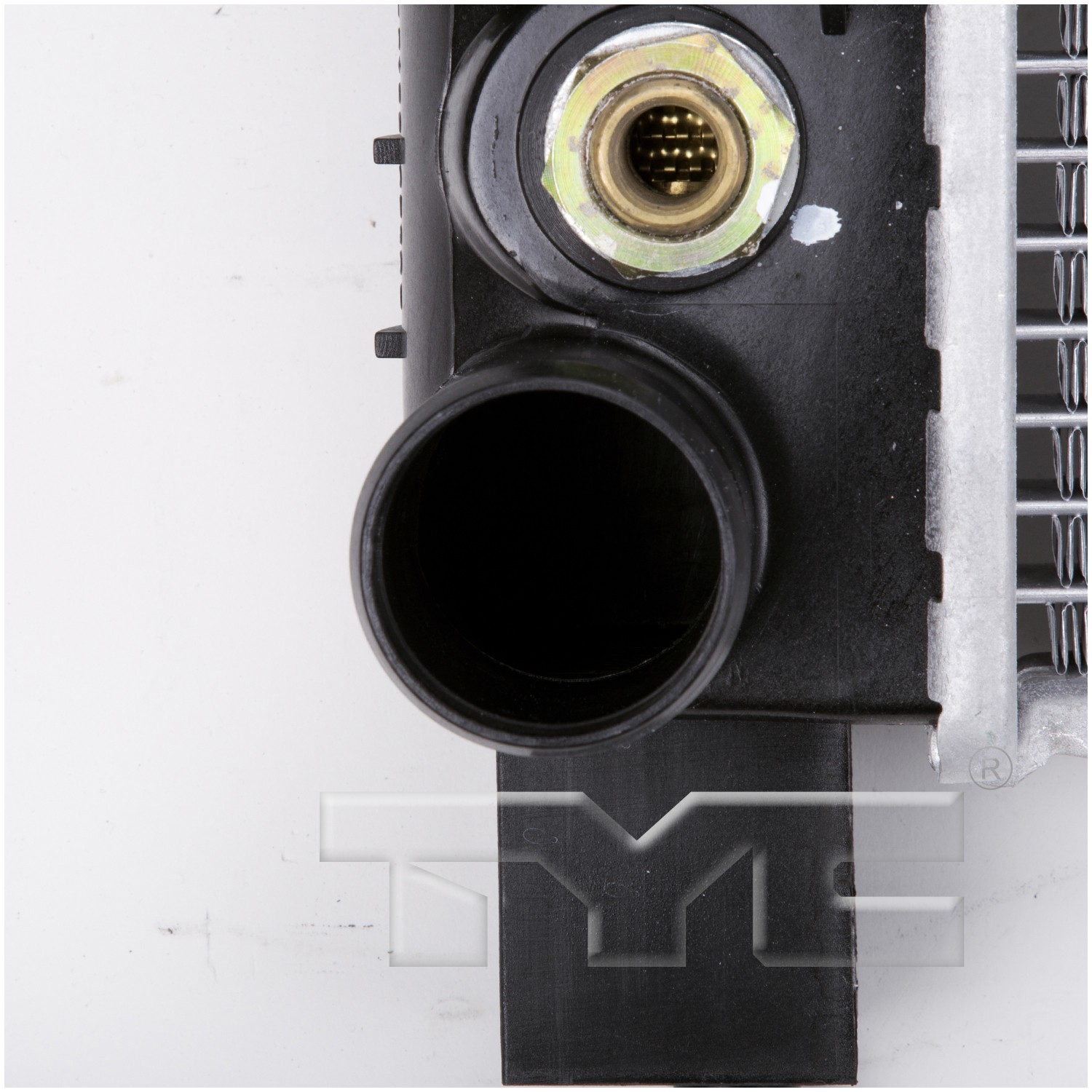

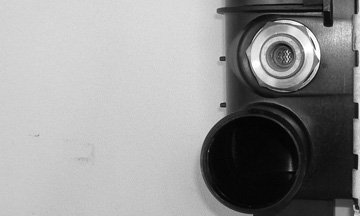

Transmission Oil Cooler Type	-	Concentric oil cooler
Core Length (in)	-	24.02
Total Fin Row Count	-	34
Tube Width X Height	-	26x2
Fin Count (every 4")	-	73
Inlet Connection Type	-	Hose clamp
Bottom Header	-	3.15x15.21
Outlet Diameter (in)	-	1.77
Toc Distance (in)	-	10.00
Find Wave Pitch	-	2.8
No. Of Rows	-	1
Show All

Ford
