TYC Radiator Assembly

Manufacturer’s Warranty : Limited Lifetime for non-commercial use

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

Place Your Order by 1:00 PM EST, It Will Be Ship Today!

$188.46 ~~$204.85~~ 8% Off

Only 8 left in stock - order soon.

Product Description

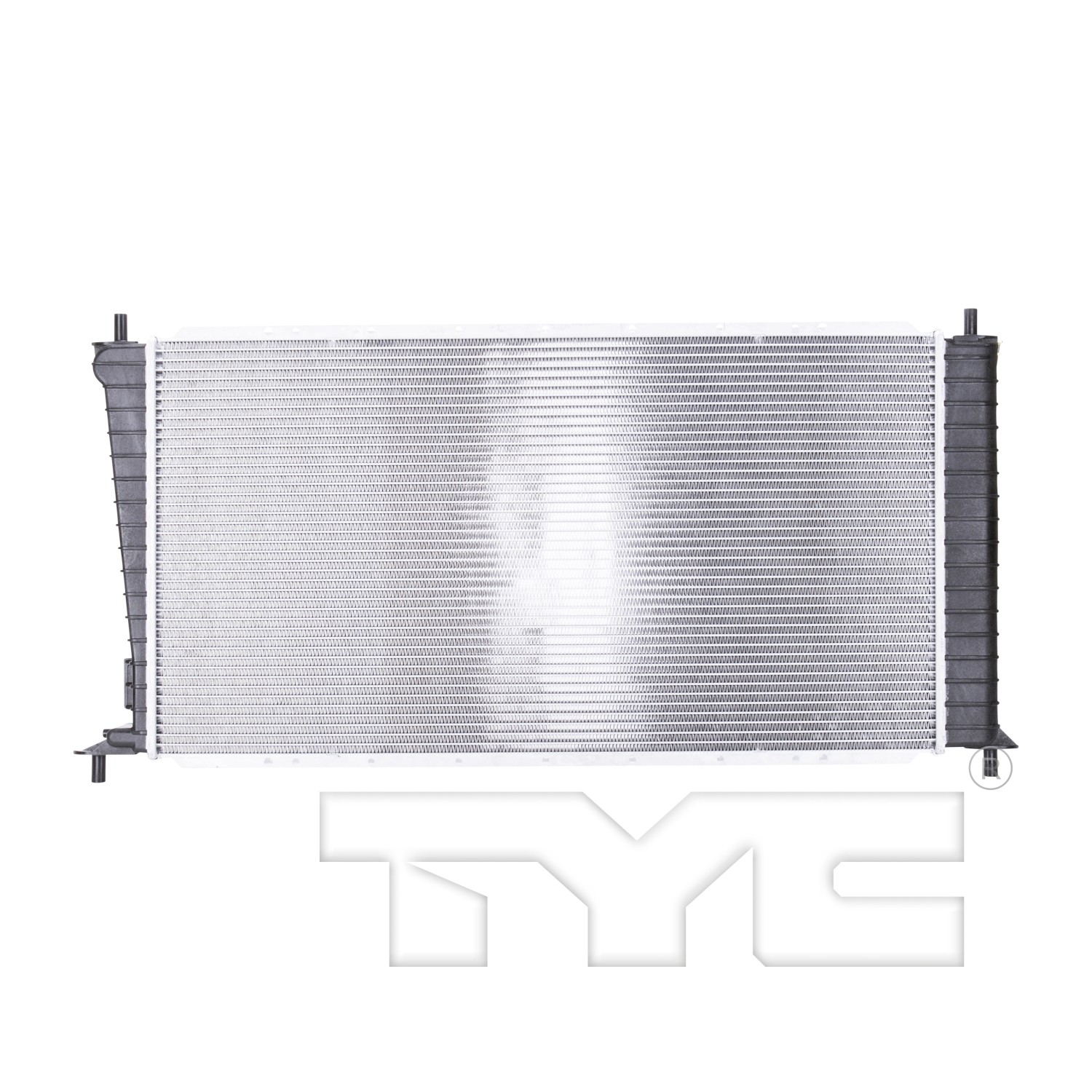

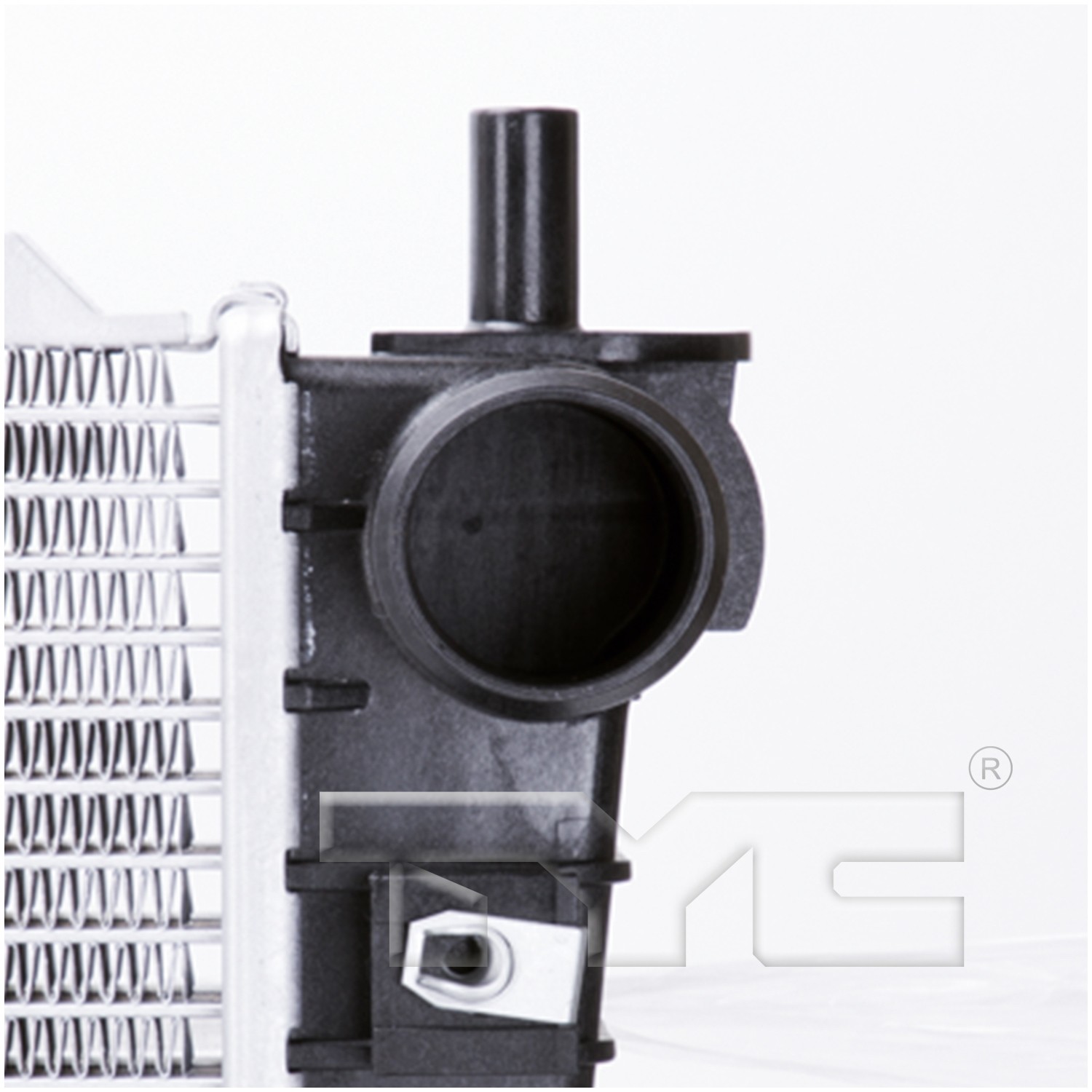

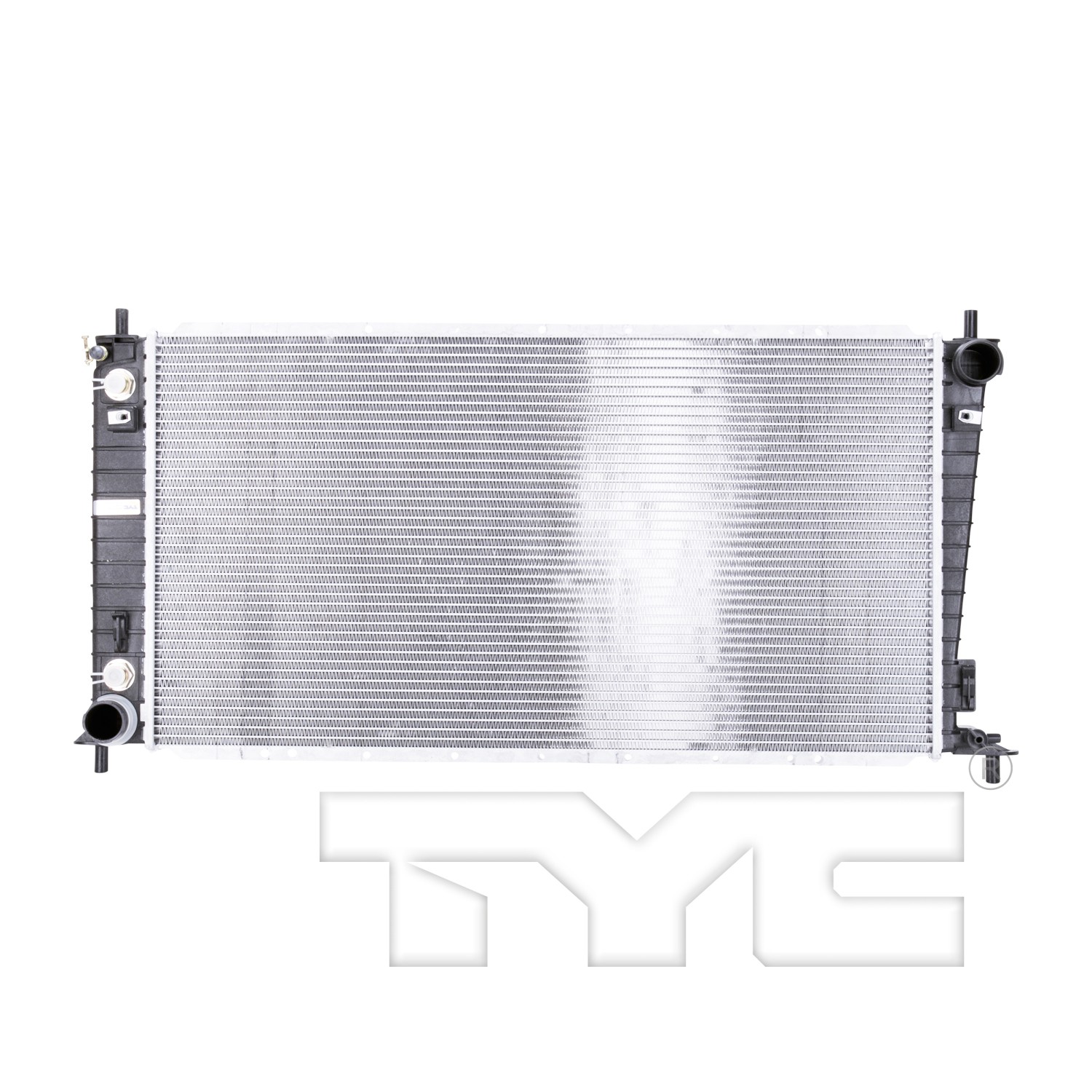

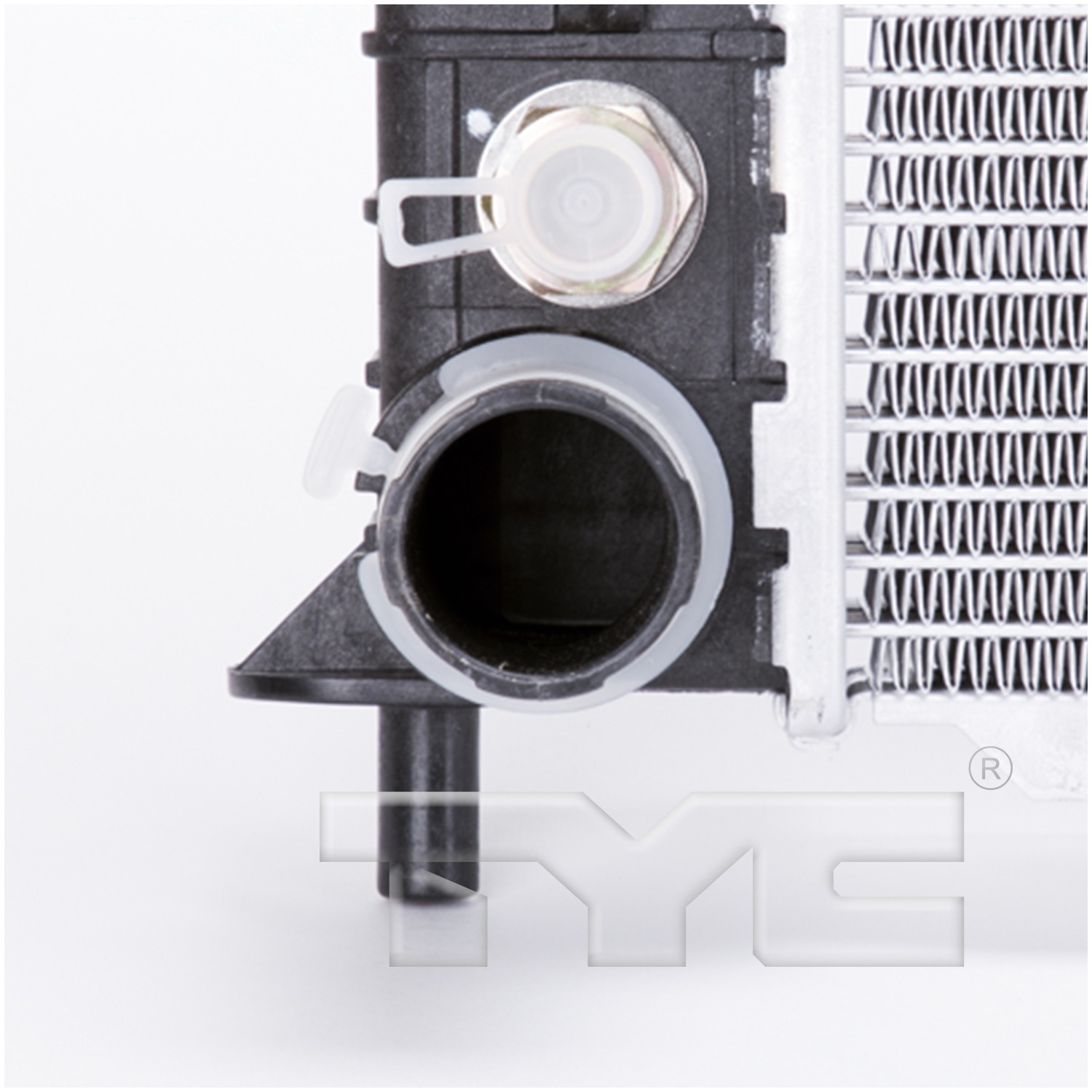

TYC® 2136 Radiator

97-98 FD XPDTN 4.6/5.4L V8 AT 2R PA (w/ TOW PKG) RAD

OE-comparable core dimensions to achieve sufficent surface area for optimal cooling.

Rigorous and accelerated cycling tests to ensure product service quality and durability.

Individually leak-tested to ensure product has no leaks.

Find Wave Pitch	-	3.7
Outlet Connection Type	-	Hose clamp
Toc Distance (in)	-	12.01
Inlet Diameter (in)	-	1.77
Toc Outlet Diameter (in)	-	5/8-18unf
Total Tube Count	-	42
Engine Oil Cooler Included	-	No
Toc Inlet Diameter (in)	-	5/8-18unf
Transmission Oil Cooler Type	-	Plate oil cooler
Transmission Oil Cooler Included	-	Yes
Core Thickness (in)	-	2.2
Core Material	-	Aluminum
Toc Outlet Type	-	Adapter
Outlet Diameter (in)	-	1.73
Flow Configuration	-	Crossflow
Fin Count (every 4")	-	55
Inlet Connection Type	-	Hose clamp
Tube Width X Height	-	26x2
Toc Inlet Type	-	Adapter
Top Header	-	3.16x17.31
No. Of Rows	-	1
Core Height (in)	-	16.85
Bottom Header	-	3.16x17.31
Total Fin Row Count	-	43
Core Length (in)	-	31.89
Fin Wave Height (in)	-	0.31
Tube Count (every 4")	-	10
