TYC Radiator Assembly

Manufacturer’s Warranty : Limited Lifetime for non-commercial use

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

$99.94 ~~$111.04~~ 10% Off

Only 2 left in stock - order soon.

Product Description

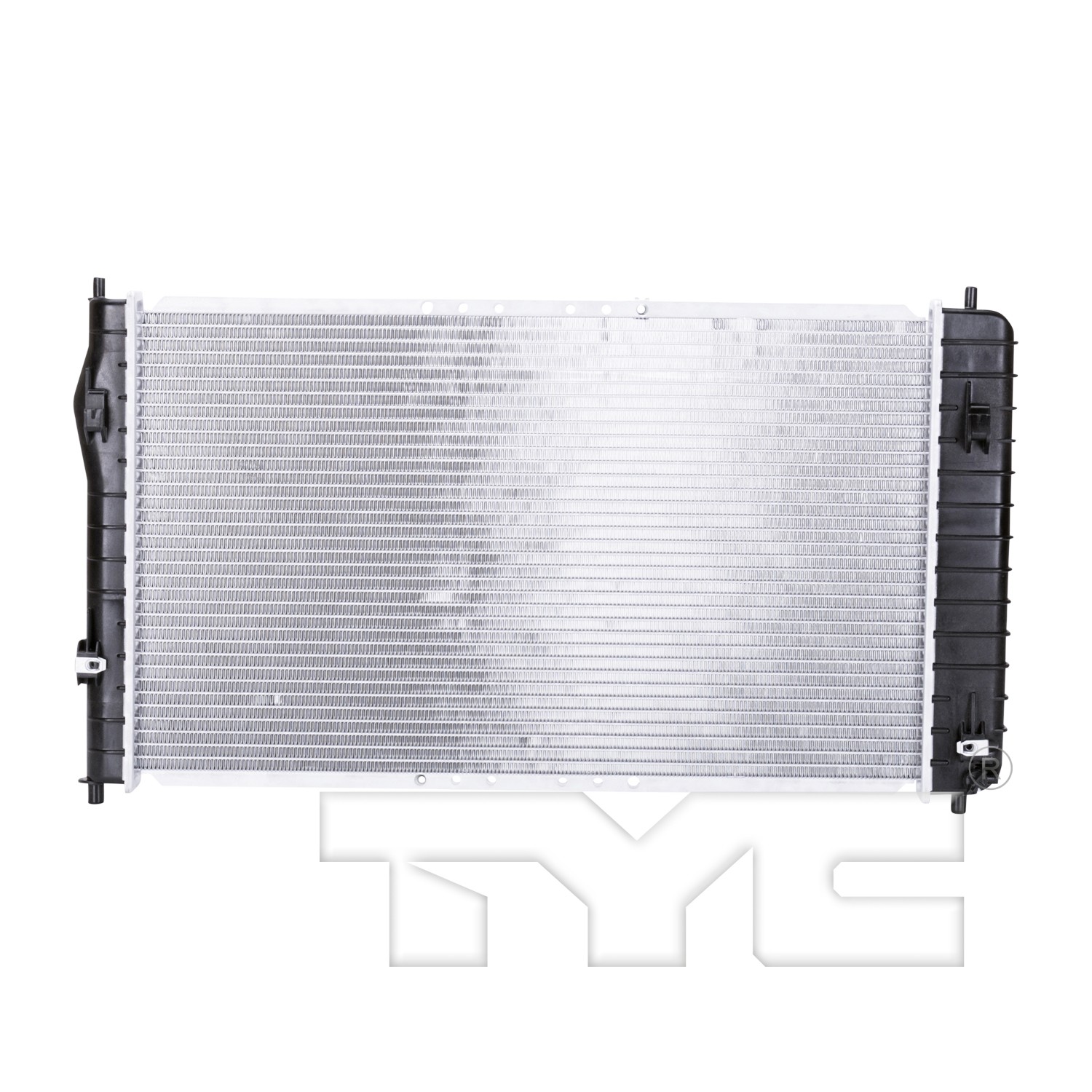

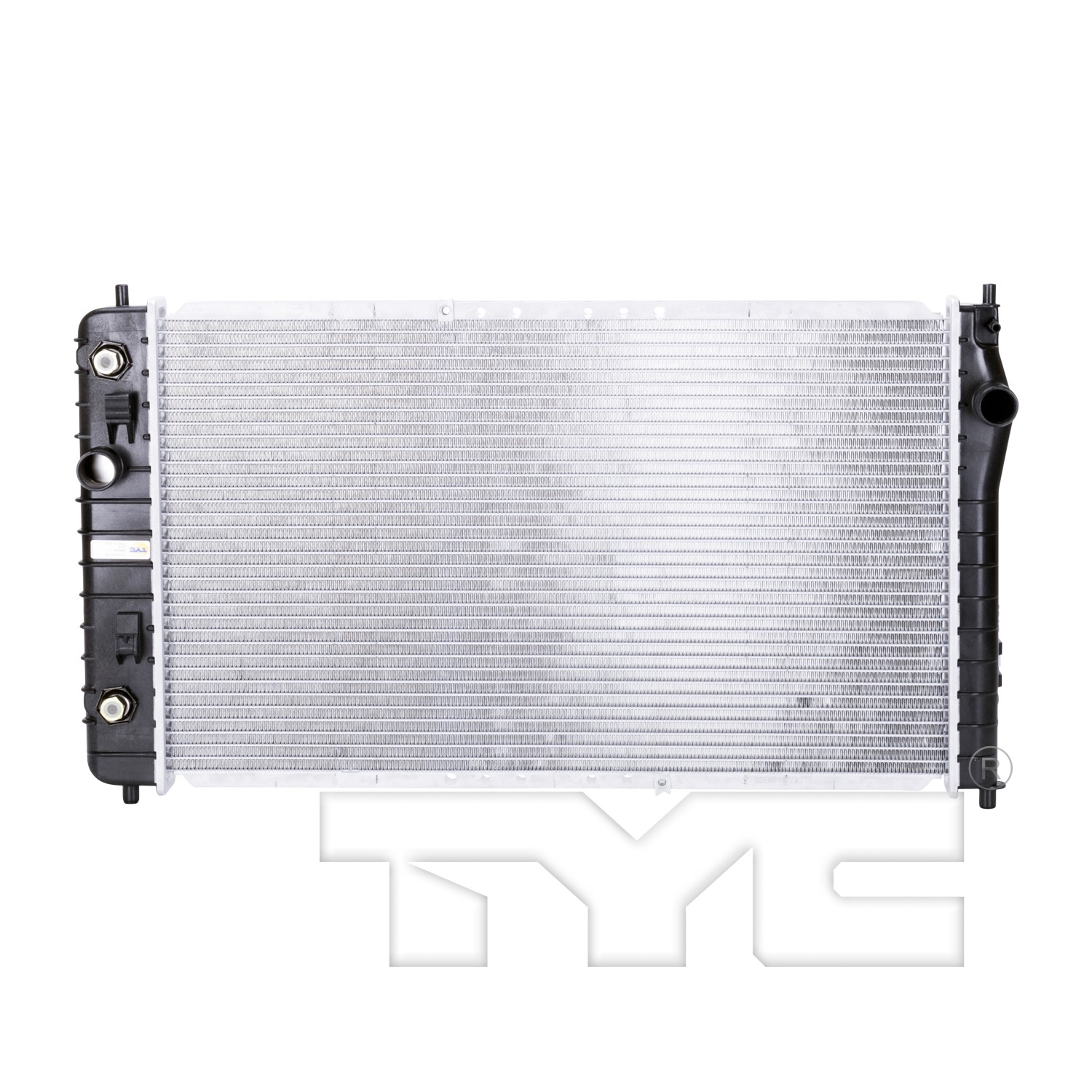

TYC® 2518 Radiator

02-04 CV CVLER/01-04 PT SUNFR 2.2L 16V AT 1R PA RAD

OE-comparable core dimensions to achieve sufficent surface area for optimal cooling.

Rigorous and accelerated cycling tests to ensure product service quality and durability.

Individually leak-tested to ensure product has no leaks.

Toc Inlet Type	-	Adapter
No. Of Rows	-	1
Tube Width X Height	-	26x2
Inlet Connection Type	-	Hose clamp
Top Header	-	2.42x16.59
Fin Wave Height (in)	-	0.35
Bottom Header	-	2.42x16.59
Fin Count (every 4")	-	64
Core Height (in)	-	15.08
Core Thickness (in)	-	1.02
Toc Outlet Diameter (in)	-	1/2-20unf
Outlet Diameter (in)	-	1.30
Toc Distance (in)	-	11.50
Tube Count (every 4")	-	10
Outlet Connection Type	-	Hose clamp
Find Wave Pitch	-	3.2
Toc Outlet Type	-	Adapter
Core Material	-	Aluminum
Flow Configuration	-	Crossflow
Core Length (in)	-	25.98
Toc Inlet Diameter (in)	-	1/2-20unf
Engine Oil Cooler Included	-	No
Transmission Oil Cooler Type	-	Plate oil cooler
Transmission Oil Cooler Included	-	Yes
Total Tube Count	-	34
Total Fin Row Count	-	35
Inlet Diameter (in)	-	1.30
