TYC Radiator Assembly

Manufacturer’s Warranty : Limited Lifetime for non-commercial use

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

$149.89 ~~$166.54~~ 10% Off

Only 2 left in stock - order soon.

Product Description

TYC® 2819 Radiator

04-08 FD F-150 4.6/5.4L V8 1R PA (w/ TOC) RAD

OE-comparable core dimensions to achieve sufficent surface area for optimal cooling.

Rigorous and accelerated cycling tests to ensure product service quality and durability.

Individually leak-tested to ensure product has no leaks.

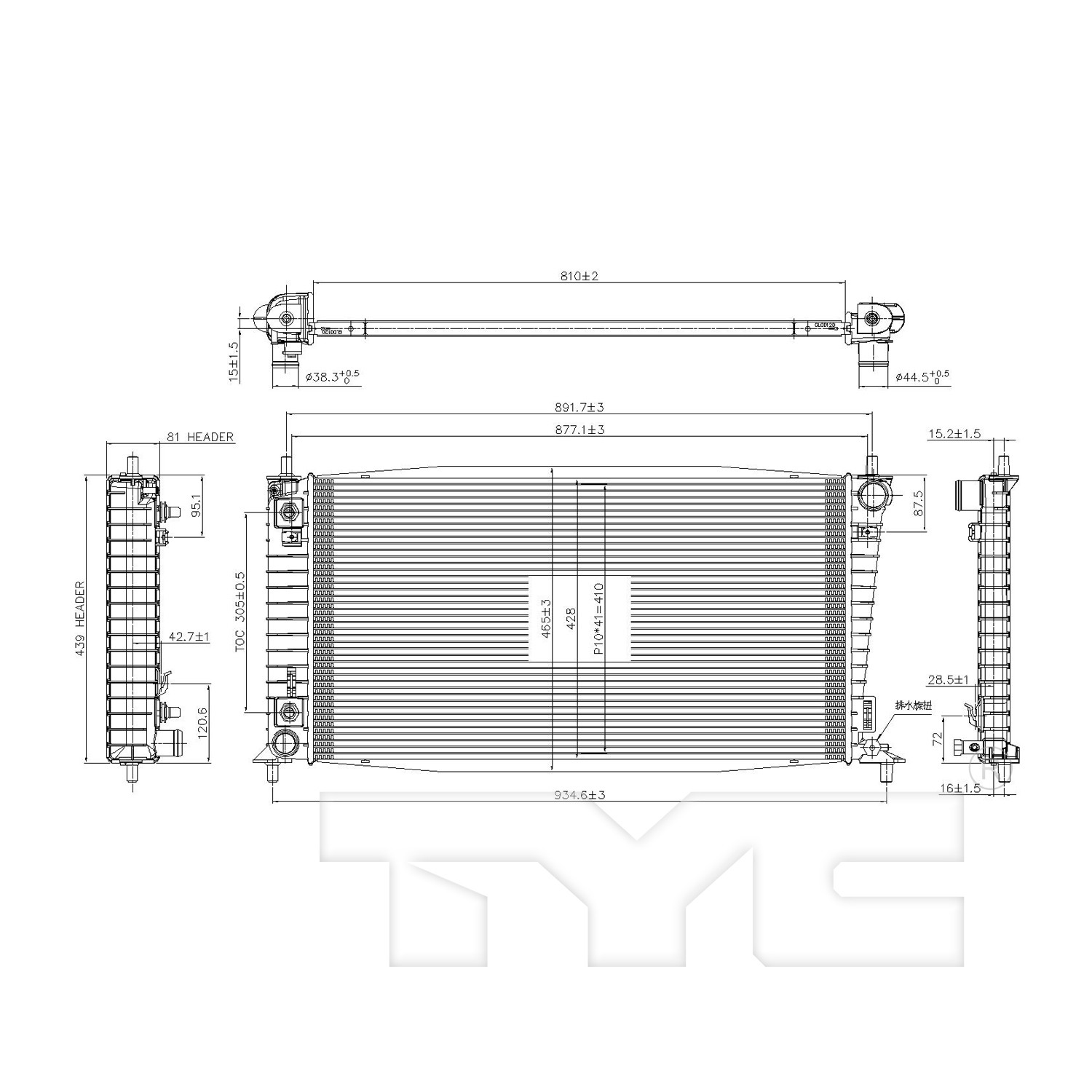

Remarks	-	Hvy duty cooling
Core Length (in)	-	31.89
Tube Count (every 4")	-	10
Inlet Diameter (in)	-	1.77
Toc Inlet Diameter (in)	-	0.37
Core Height (in)	-	16.81
Fin Count (every 4")	-	68
Tube Width X Height	-	16x2
Toc Outlet Type	-	Quick connect
Transmission Oil Cooler Included	-	Yes
Transmission Oil Cooler Type	-	Plate oil cooler
Total Tube Count	-	38
Engine Oil Cooler Included	-	No
Toc Outlet Diameter (in)	-	0.37
Outlet Diameter (in)	-	1.50
Flow Configuration	-	Crossflow
Core Material	-	Aluminum
Total Fin Row Count	-	39
Inlet Connection Type	-	Hose clamp
No. Of Rows	-	1
Top Header	-	3.16x17.31
Find Wave Pitch	-	3
Bottom Header	-	3.16x17.31
Core Thickness (in)	-	1.42
Toc Inlet Type	-	Quick connect
Fin Wave Height (in)	-	0.35
Toc Distance (in)	-	12.01
Outlet Connection Type	-	Hose clamp
