Description

LuK DMF Manu

Manufacturer’s Warranty : 12 months/12,000 miles

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

Place Your Order by 1:00 PM EST, It Will Be Ship Today!

$472.87 ~~$508.46~~ 7% Off

SKU	LKDMF067
Brand	LUK®
Part Name	Clutch Flywheel
Part	# DMF067
UPC	# 00670774132995
Quantity Per Vehicle	1
Pack of	1
Condition	New

Fast Shipping

We ship fast so you can get on the road that much faster
100% Safety

Only secure payments

Product Description

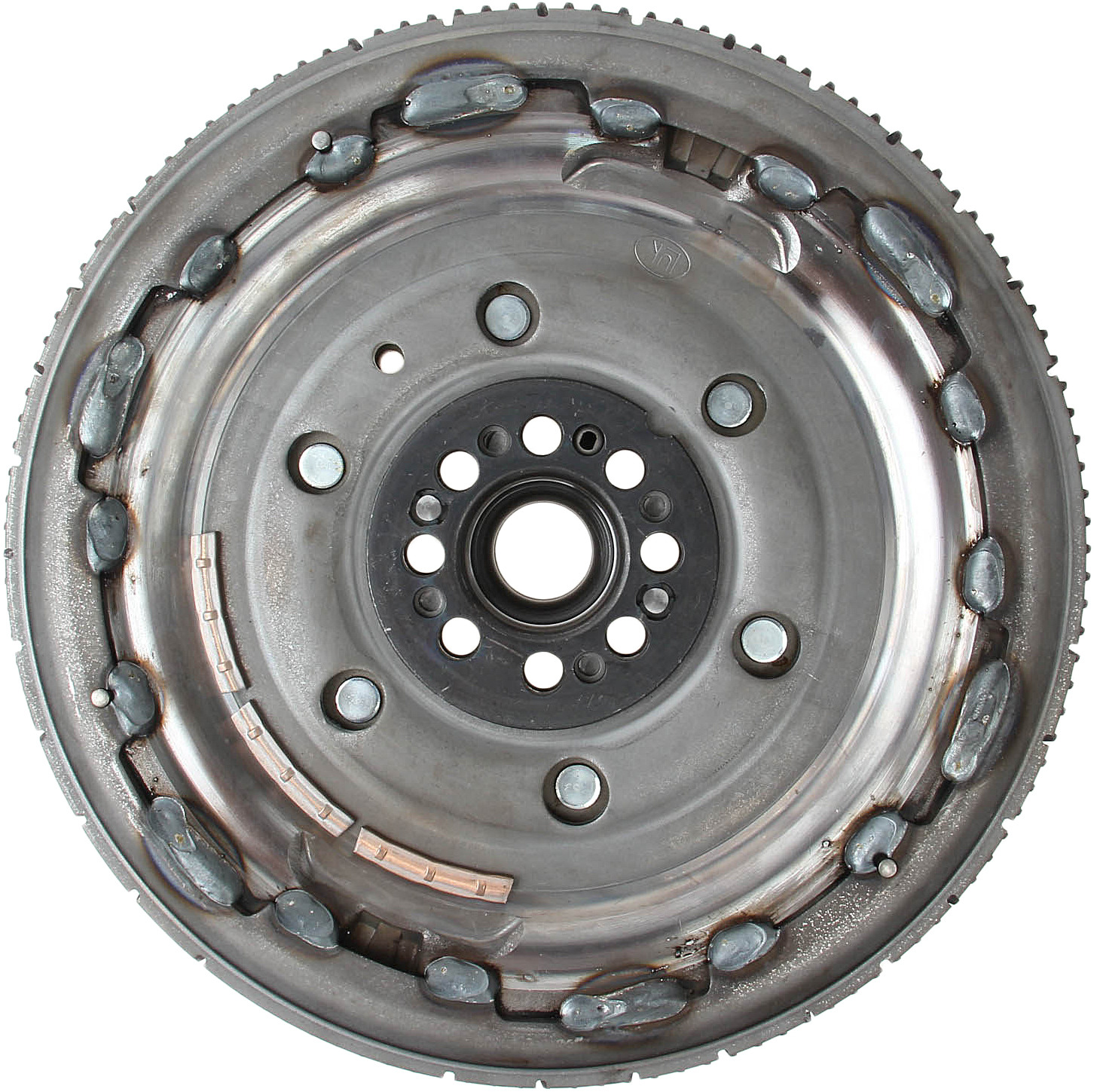

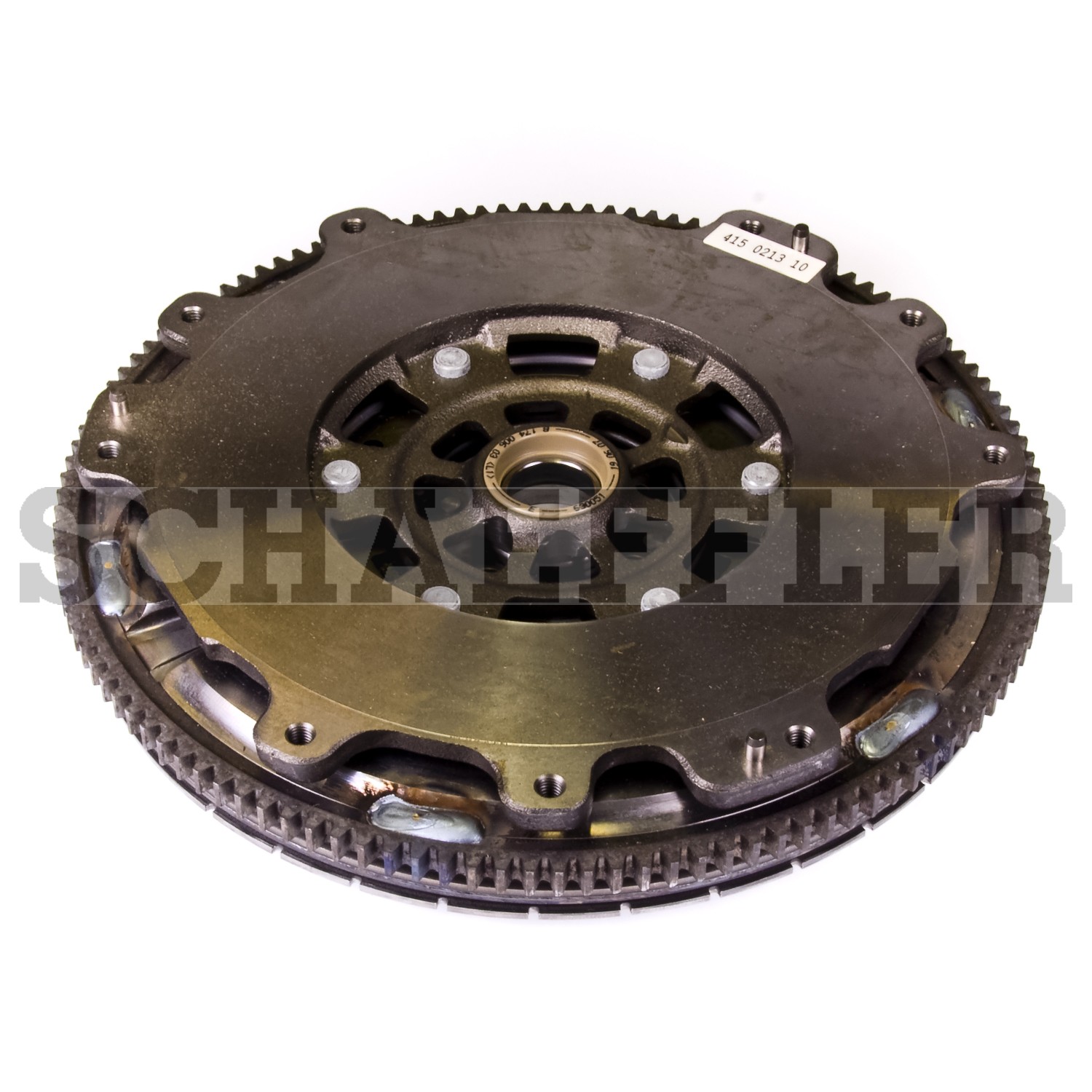

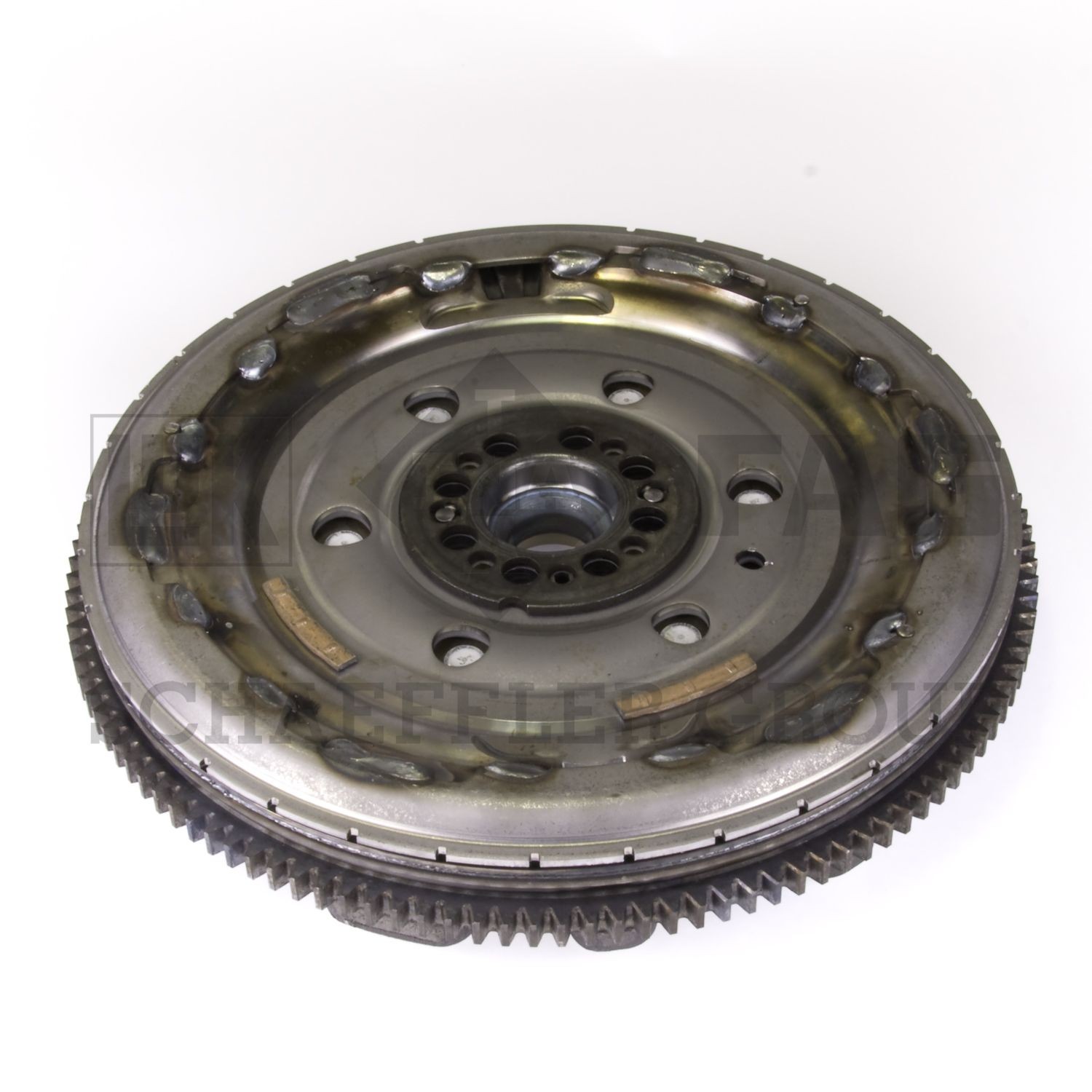

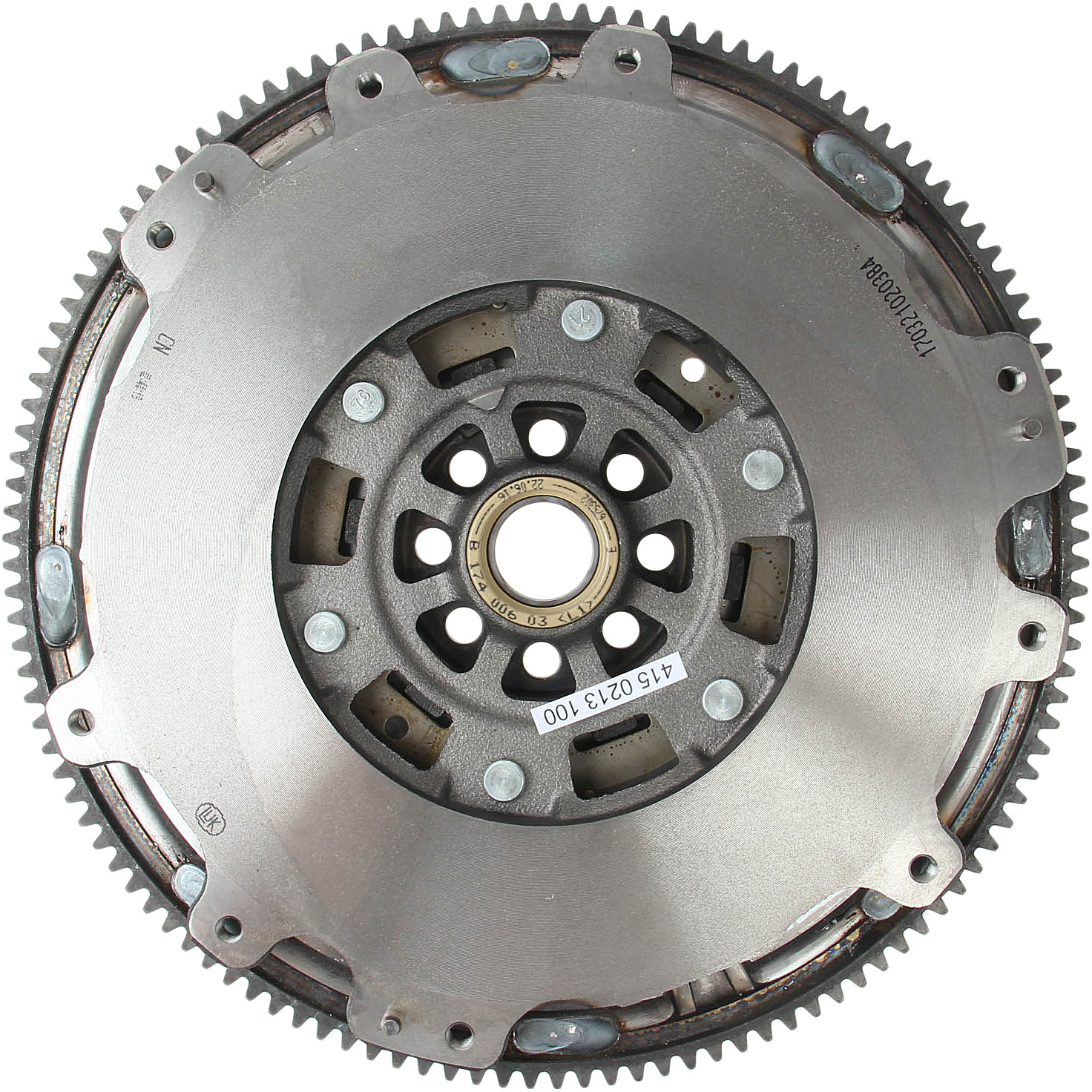

LUK® DMF067 Clutch Flywheel

LuK: Don’t gamble – stay with the original LuK DMF! The LuK DMF prevents damages solid flywheels may cause. The LUK Dual Mass Flywheel (DMF) is individually fine-tuned for every type of car. The risks of using solid flywheels are numerous – from increased wear of engine mounts through gearbox failure to damaged crankshafts.

PRODUCT ATTRIBUTE & INFO

Flywheel Friction Surface Inner diameter (inch)	-	6.063
Flywheel Friction Surface Inner diameter (mm)	-	154
Torque Capacity DMFW (inch)	-	15.3543
Torque Capacity DMFW (mm)	-	390
Overall Casting O.D. (inch)	-	12.5039
Overall Casting O.D. (mm)	-	317.6
Number of teeth, starter ring gear	-	124
Ring Gear Thickness (inch)	-	0.3937
Ring Gear Thickness (mm)	-	10
I.D. for Pilot (inch)	-	1.0394
I.D. for Pilot (mm)	-	26.4
Crank Hole Dia. (inch)	-	0.4016
Crank Hole Dia. (mm)	-	10.2
Flywheel Thickness [mm] (inch)	-	2.5945
Flywheel Thickness [mm] (mm)	-	65.9
Cup depth, secondary flywheel (inch)	-	0.2835
Cup depth, secondary flywheel (mm)	-	7.2
Ring Gear Number	-	L-09180-0071-04
Ring Gear Major Dia. (inch)	-	12.4
Ring Gear Major Dia. (mm)	-	314.96
Bolt hole PCD clutch pres.plte (inch)	-	11.0236
Bolt hole PCD clutch pres.plte (mm)	-	280
Dowel hole diameter (inch)	-	0.2362
Dowel hole diameter (mm)	-	6
Dowel Hole Pattern	-	5
Ring Gear Mounting O.D. (inch)	-	11.2992
Ring Gear Mounting O.D. (mm)	-	287
Ring Gear To Friction Surface (inch)	-	1.0827
Ring Gear To Friction Surface (mm)	-	27.5
Flywheel friction surface outer diameter (inch)	-	10
Flywheel friction surface outer diameter (mm)	-	254
Centering diameter / dowel hole (inch)	-	11.0236
Centering diameter / dowel hole (mm)	-	280
Bolt hole PCD crankshaft (inch)	-	2.5984
Bolt hole PCD crankshaft (mm)	-	66
Crank To Friction Surface (inch)	-	1.748
Crank To Friction Surface (mm)	-	44.4
Bolt Hole Pattern	-	21
