Max-Air Air Adjustable Air Shock Absorber Pack of 2
Manufacturer’s Warranty : 2 Year Limited Warranty
Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.
Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.
$84.93 $94.37
10% Off
Only 27 left in stock - order soon.
SKU | TSMA700 |
---|---|
Brand | Monroe® |
Part Name | Air Shock Absorber |
Part | # MA700 |
UPC | # 00048598030702 |
Quantity Per Vehicle | 1 |
Pack of | 1 |
Condition | New |
Max-Air Air Shock Absorber

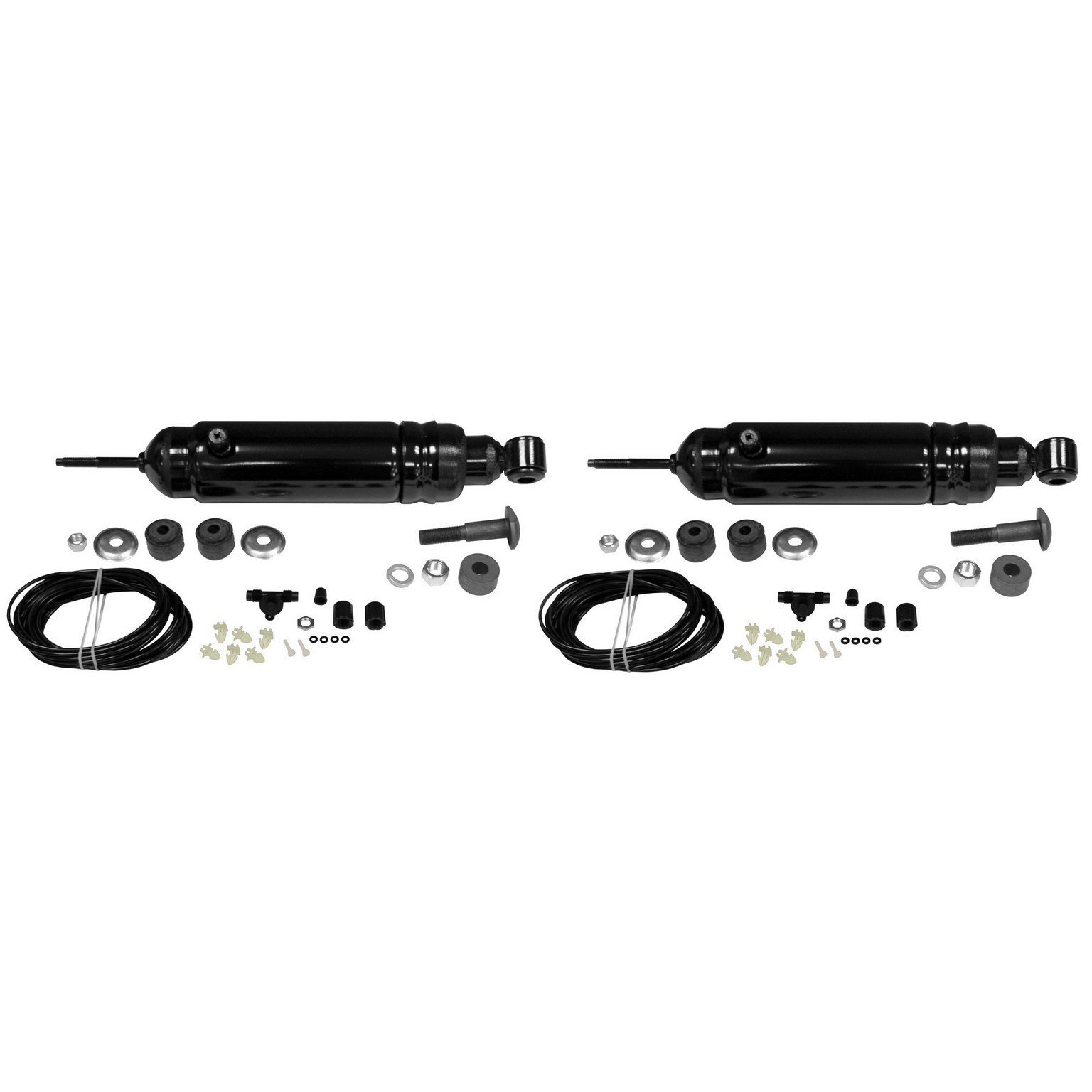

Monroe Max-Air MA700 Air Adjustable Air Shock Absorber Pack of 2 for Ford LTD
Ideal for hauling, Monroe® Max-Air® shock absorbers can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by vehicle suspension, tires and transmission. See vehicle owners manual.)
MAINTAIN RIDE HEIGHT UNDER LOAD -- Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owners manual)
EASY TO ADJUST -- Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
EXCEPTIONAL HANDLING -- Full-displaced valving on compression and extension cycles for a smooth ride
BUILT TO LAST -- Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
Compressed Length (IN) | - | 12.75 |
---|---|---|
Compressed Length (MM) | - | 323.8 |
Extended Length (IN) | - | 21.375 |
Extended Length (MM) | - | 542.9 |
Travel Length (IN) | - | 8.625 |
Travel Length (MM) | - | 219.1 |
Upper Mount Type | - | Stem mount - 2.3/8' stem length x 3/8'-16 thread pitch |
Dust Shield Included | - | Yes |
Dust Shield Material | - | Rubber |
Internal Rebound Bumper | - | No |
Shock Absorber Body End Measuring Point | - | Center of loop |
Shock Absorber Rod End Measuring Point | - | Base of stem |
Hydraulic Lockout | - | No |
Includes Bump Stop | - | Yes |
Lower Mount Code | - | L1/cp3 |
Lower Mount Type | - | Loop bushing and cantilever pin mount - 1/2' stud diameter x 1 5/16' stud length (center of loop to frame) |
Part Description | - | Air shock absorber |
Parts Pack(s) | - | P00576,p01134 |
Upper Mount Code | - | S4 |
Show All |
