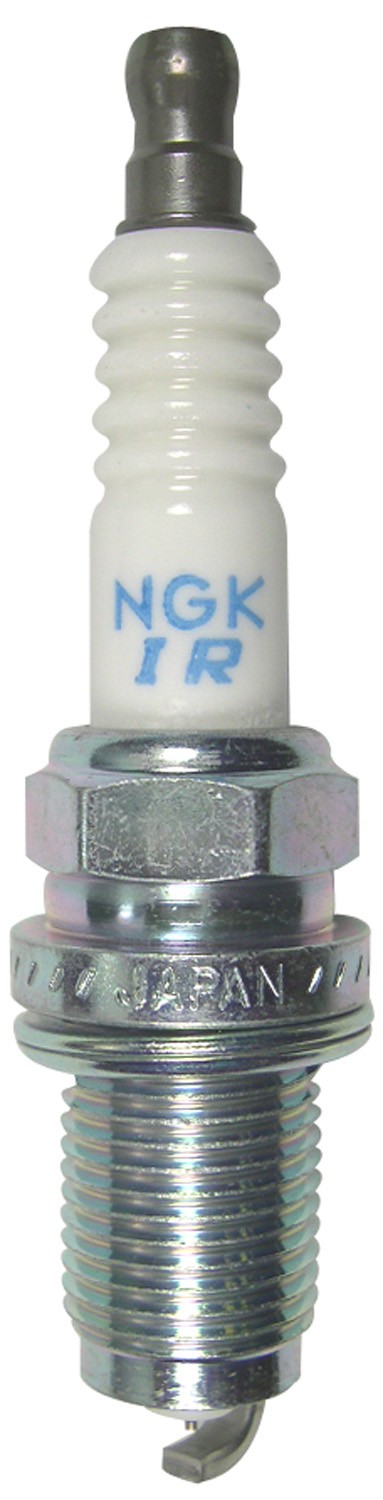

NGK Laser Iridium Spark Plug
Manufacturer’s Warranty : 60 Days
Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.
Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.
SKU | NG5266 |
---|---|
Brand | NGK® |
Part Name | Spark Plug |
Part | # 5266 |
UPC | # 00087295152669 |
Quantity Per Vehicle | 4 |
Pack of | 1 |
Condition | New |

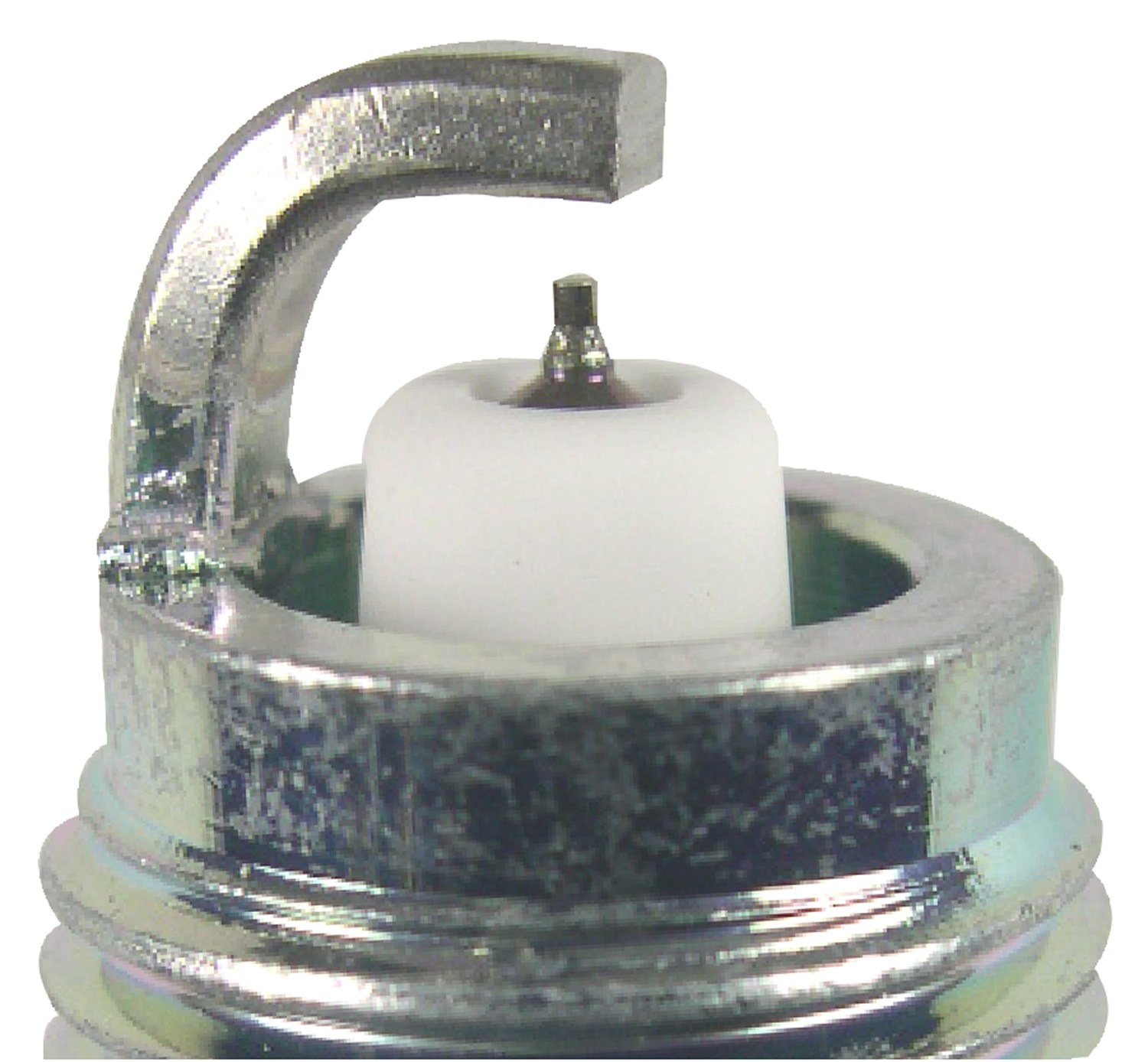

IRIDIUM ALLOY CENTER ELECTRODE: Iridiums density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
RECOMMENDED USAGE: Best for vehicles with OE fine wire iridium alloy plugs
ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire iridium alloy center electrode provides consistent performance
TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
NGK Laser Iridium spark plugs offer the best combination of performance and longevity. Engineered specifically for OE applications, Laser Iridium spark plugs are tested to the highest standards to ensure quality and durability. Iridium tipped center electrode provides durability six times harder than platinum. NGKs high grade pure alumina ceramic and 98 percent pure copper core prevents the spark plug from overheating while providing reliable starts. Most Laser Iridium spark plugs feature a platinum pad on the ground electrode for even wear in distributorless ignition systems.
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life
Laser Iridium Spark Plug
Stock Number | - | 5266 |
---|---|---|
Part Number | - | Izfr6k-11s |
Short Style Spark Plug | - | No |
Service Number | - | Izfr6k-11s |
Resistance (82) | - | 5000.0 |
Ground Electrode Tip Design | - | Trapezoid |
Ground Configuration | - | J-gap |
Ground Electrode Core Material | - | Nickel |
Washer Included | - | Yes |
Grade Type | - | Performance |
Electrical Terminal Type | - | Non-removable nut |
Center Electrode Core Material | - | Copper |
Center Electrode Tip Material | - | Iridium |
Pre-Gap Size (IN) | - | .044 |
Pre-Gap Size (MM) | - | 1.1 |
Ground Electrode Quantity | - | 1 |
Hex Size | - | 5/8' (16mm) |
Insulator Height (IN) | - | 1.99 |
Insulator Height (MM) | - | 50.5 |
Manufacturer Heat Range | - | 6 |
Seat Type | - | Flat |
Reach (IN) | - | 0.750 |
Reach (MM) | - | 19.0 |
Thread Diameter (IN) | - | 0.551 |
Thread Diameter (MM) | - | 14.0 |
Insulator Material | - | Ceramic |
Resistor Type | - | Yes |
Skirt Length (IN) | - | 0.059 |
Skirt Length (MM) | - | 1.5 |
Ground Electrode Tip Material | - | Platinum |
Skirt | - | Yes |
Center Electrode Insulator Tip Projection (IN) | - | 0.20 |
Center Electrode Insulator Tip Projection (MM) | - | 5.0 |
Center Electrode Design | - | Fine wire |
Washer Type | - | Crush |
Center Electrode Projection | - | Long projection |
