Cardone®

Cardone® 27-7587 Steering Gear

Vehicle Info Required to Guarantee Fit For This partAdd Vehicle
Description

Remanufactured Steering Gear

Manufacturer’s Warranty : 36 Months / 36,000 Miles

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

$175.52 $190.78 8% Off

+$99.90 Refundable Core Deposit
SKU A1277587
Brand Cardone®
Part Name Steering Gear
Part # 27-7587
UPC # 00082617554336
Quantity Per Vehicle 1
Pack of 1
Condition Remanufactured
  • Fast Shipping
    We ship fast so you can get on the road that much faster
  • 100% Safety
    Only secure payments

Product Description

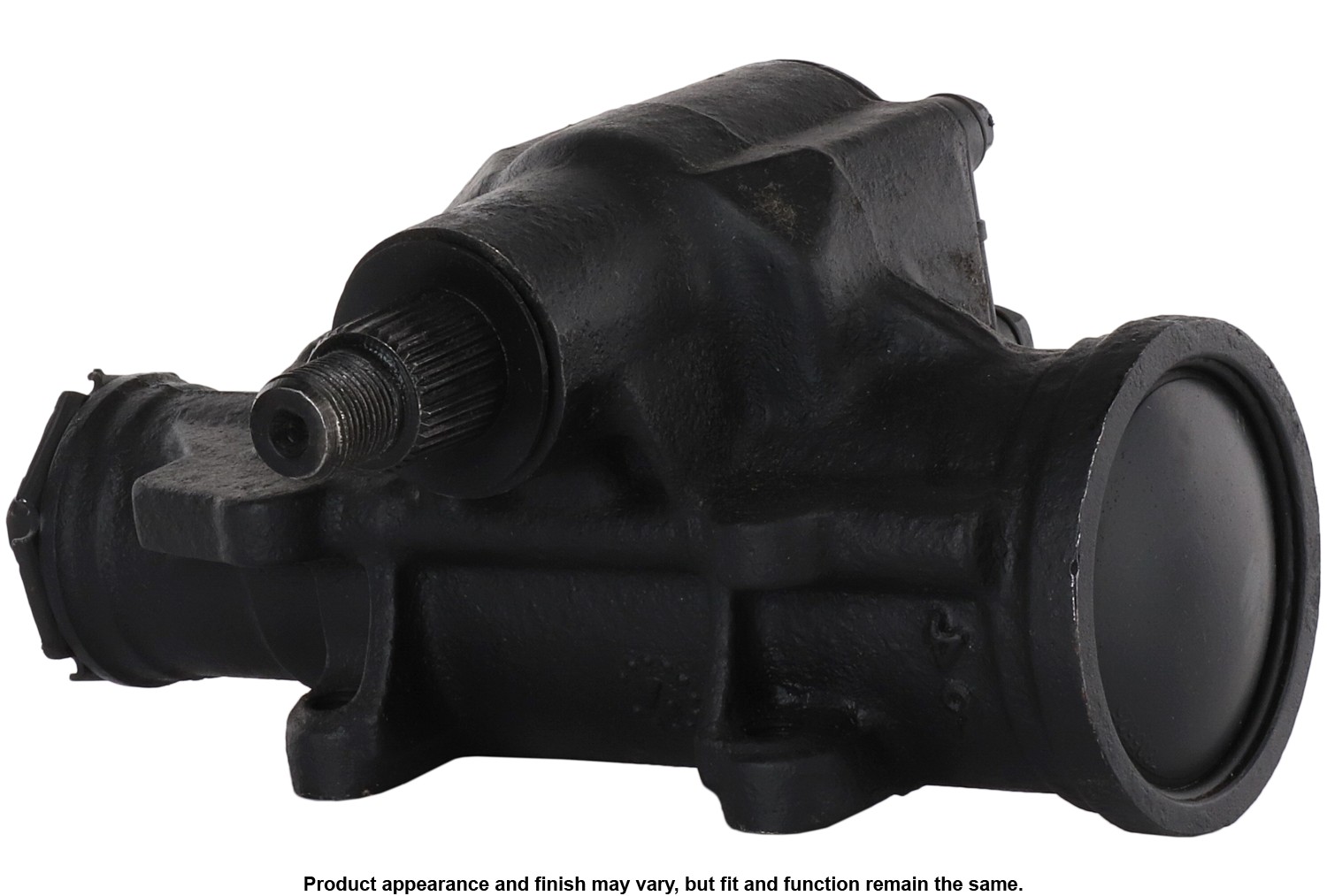

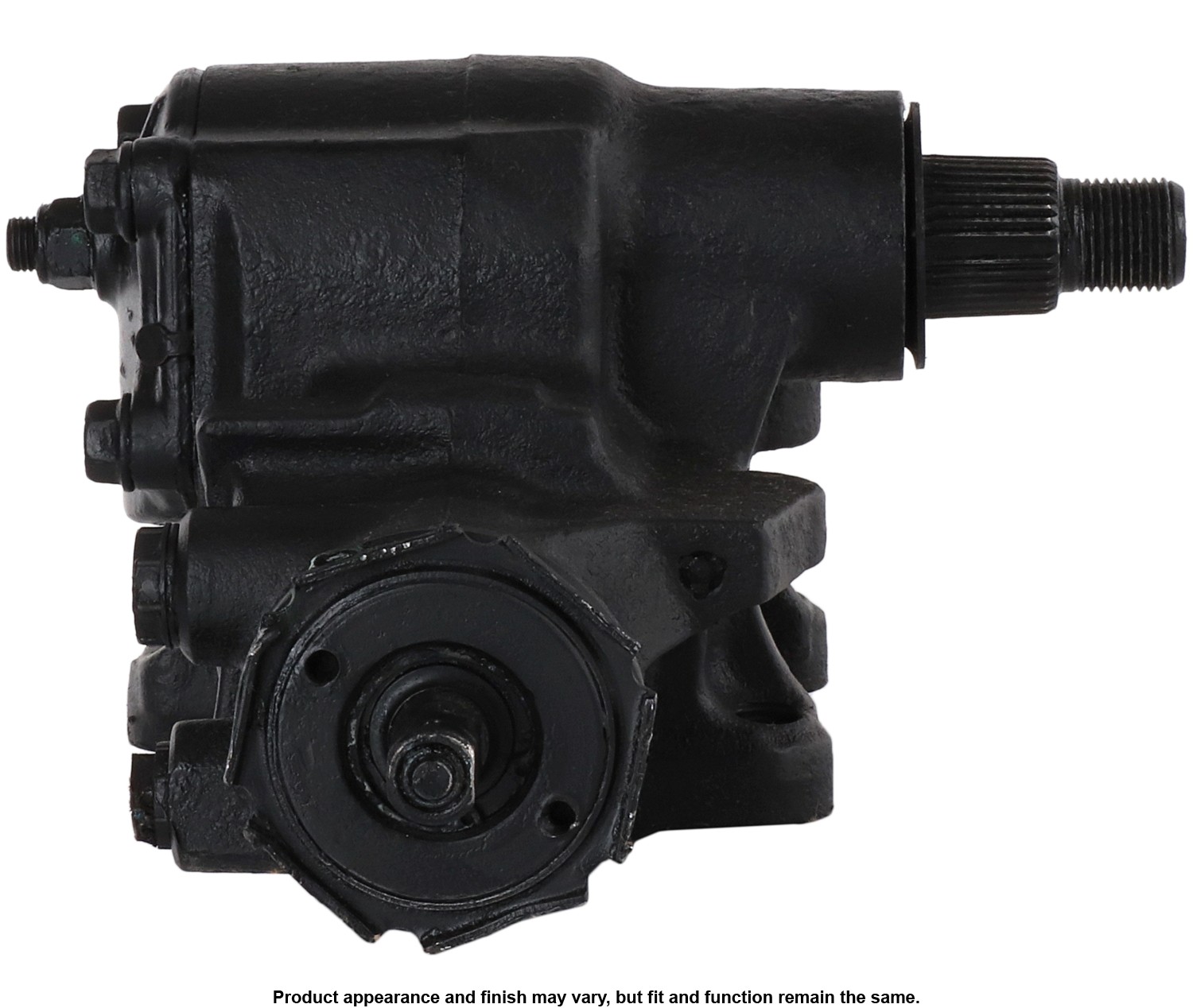

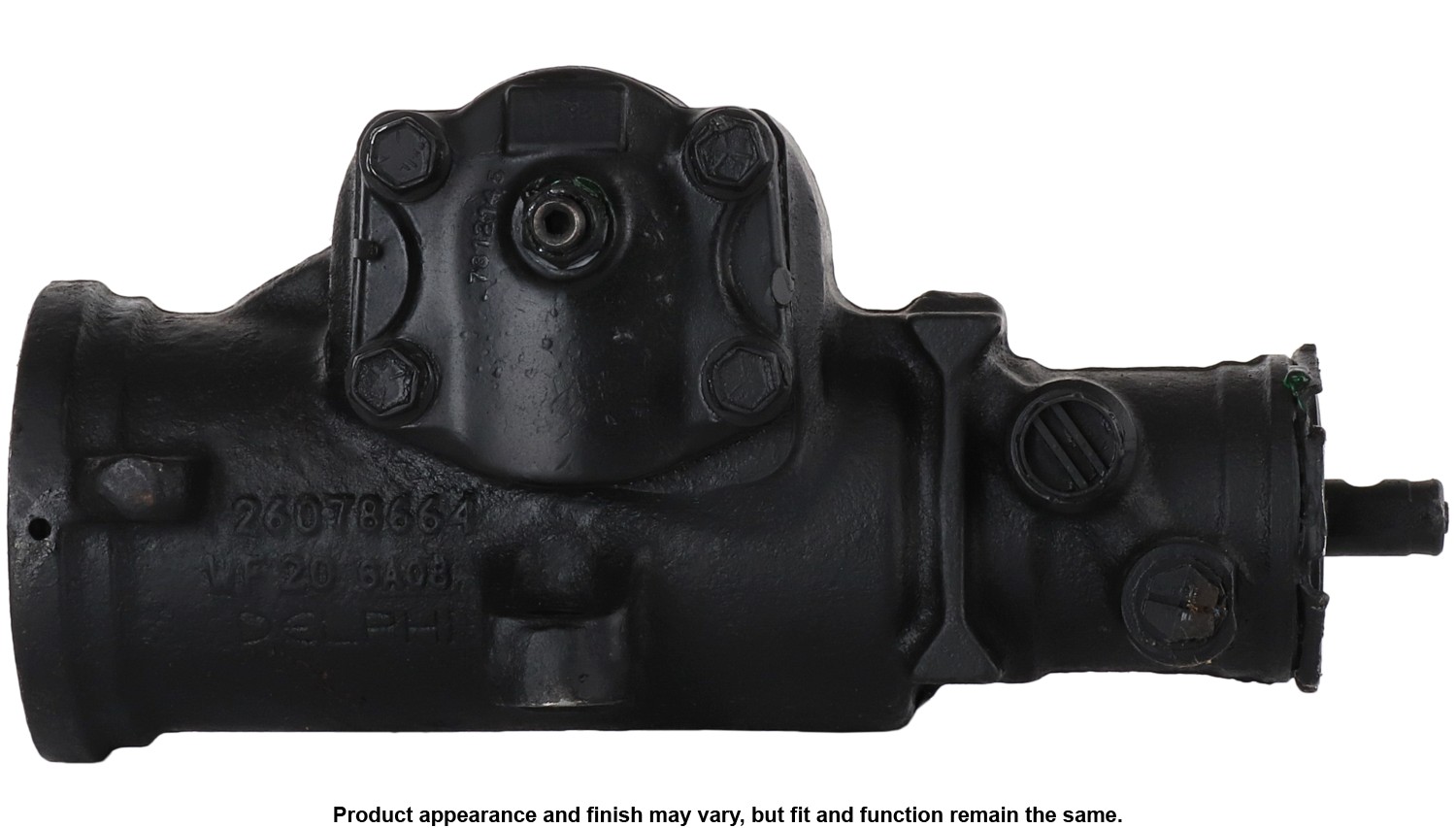

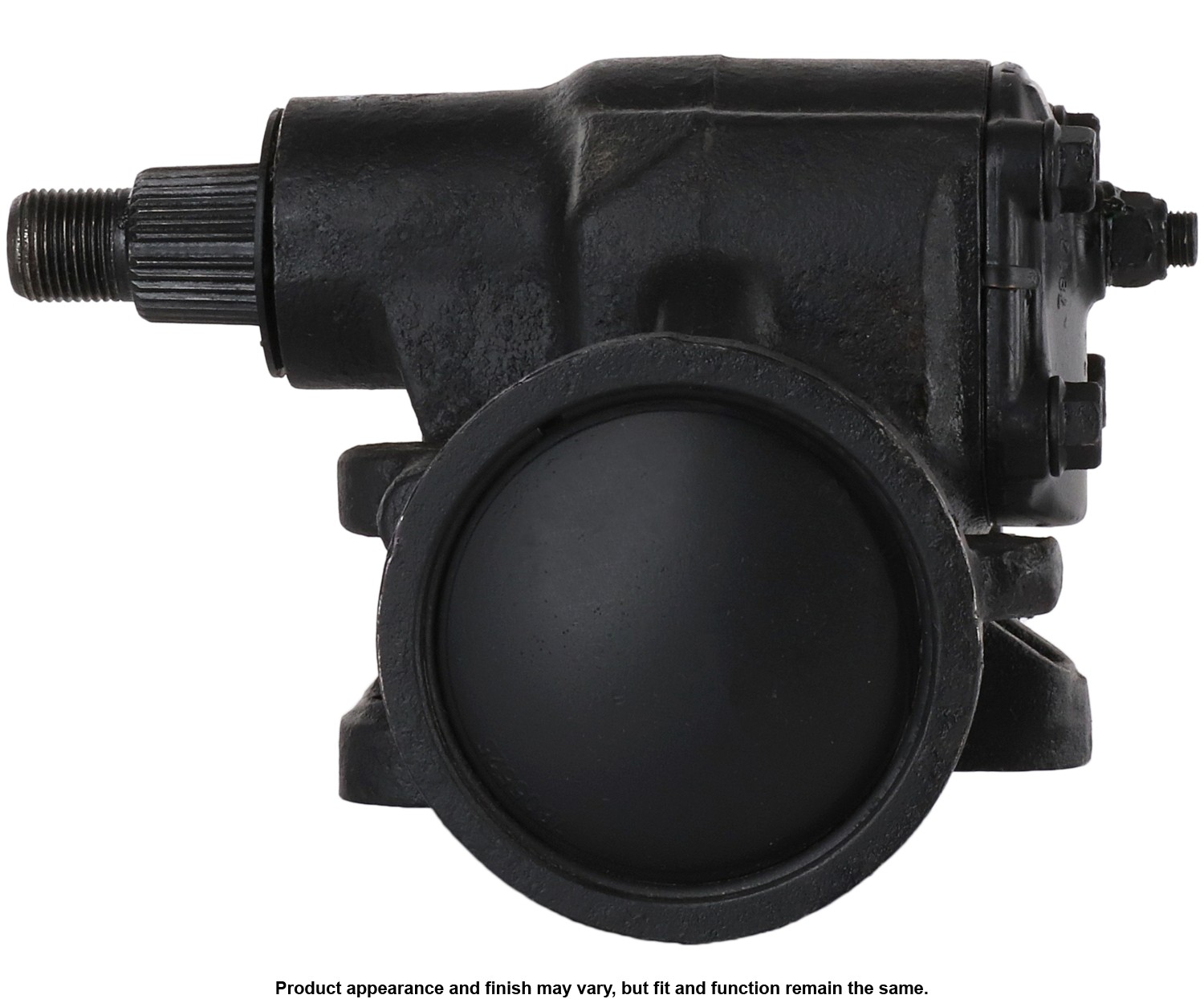

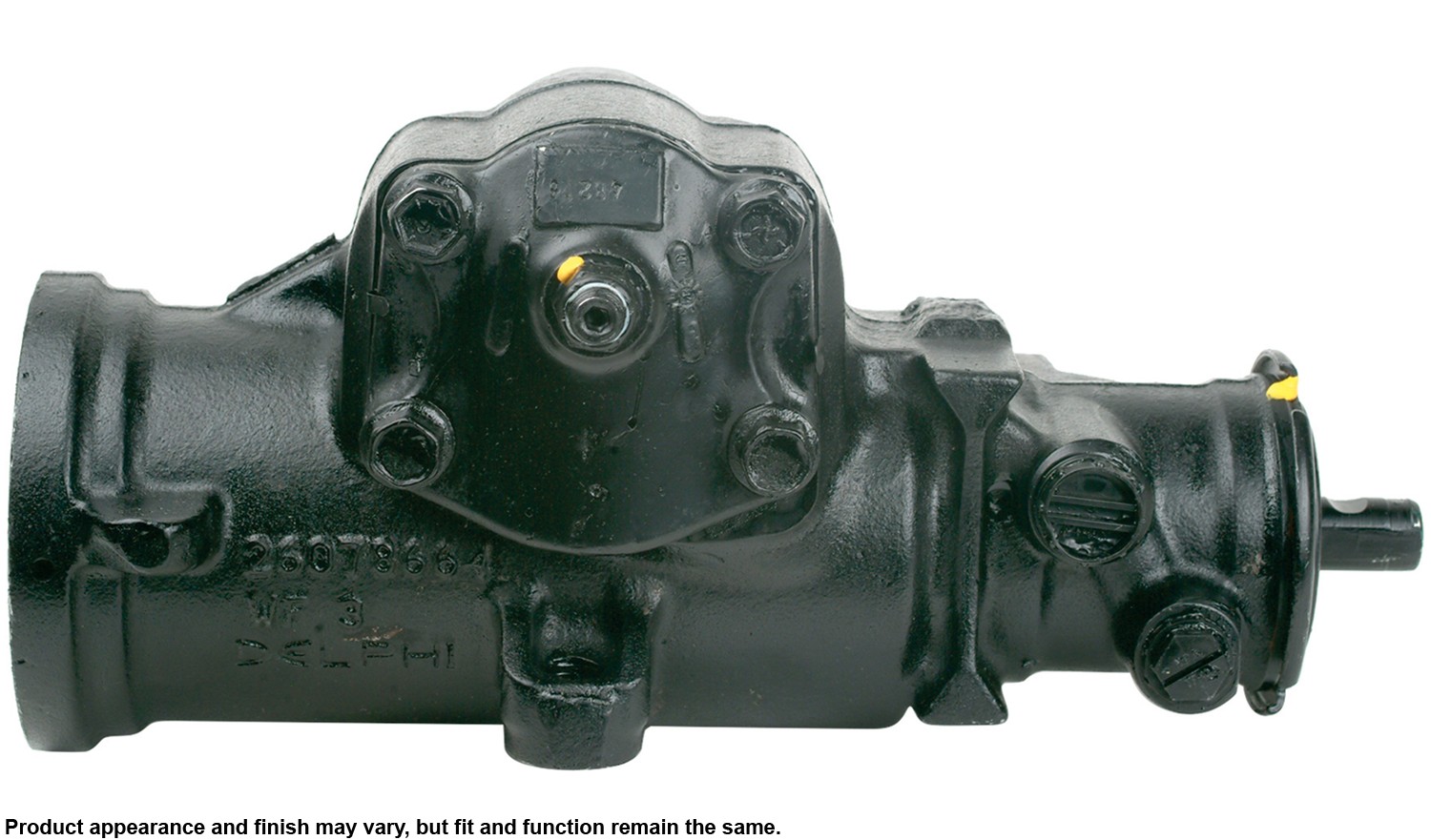

Cardone® 27-7587 Steering Gear

Remanufactured Steering Gear

The steering gear box is the heart of the vehicle’s steering system. It guides the wheels’ movement in conjunction with the direction that the steering wheel is rotated, helping achieve ideal steering response for more efficient driving. CARDONE Remanufactured Steering Gear Boxes are re-engineered, built and tested to match O.E. performance. E ach unit features 100% new O-rings and lip seals to ensure leak-free, long-lasting performance. Shafts are surfaced to precise specifications to eliminate premature seal wear and extend gear life. All units are 100% hydraulically tested to ensure perfect fit and function.

100% hydraulic testing measures for proper flow, leakage and performance to ensure perfect fit and function.

100% new O-rings and lip seals ensure leak-free, long-lasting performance.

All critical components are tested to ensure product reliability.

Shafts are surfaced to precise specifications to eliminate premature seal wear and extend gear life.

Rust inhibitive Cool Dip finish is a penetrating dye that completely covers all exposed surfaces for a consistent, protective finish that will not crack, flake or peel.

As a remanufactured Original Equipment part, this unit guarantees a perfect vehicle fit.

Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%.

PRODUCT ATTRIBUTE & INFO

Hose Port Type - O-ring
Input Shaft Diameter (IN) - 0.787
Input Shaft Diameter (MM) - 19.9898
Mounting Hardware Included - No
Output Shaft Diameter (IN) - 1.25
Output Shaft Diameter (MM) - 31.75
Output Shaft Spline Quantity - 32
Output Shaft Thread Diameter (MM) - 21.95
Output Shaft Thread Diameter (IN) - 0.864
Power Assisted - Yes
Pressure Port Thread Diameter (IN) - 0.698
Pressure Port Thread Diameter (MM) - 17.73
Pressure Port Thread Size - 18x1.5
Return Port Thread Diameter (IN) - 0.62
Return Port Thread Diameter (MM) - 15.75
Return Port Thread Size - 16x1.5
Total Turns Lock To Lock - 3.25
Type - Power
Splined Input Shaft - No
Product Condition - Remanufactured

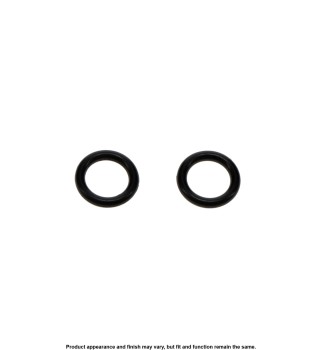

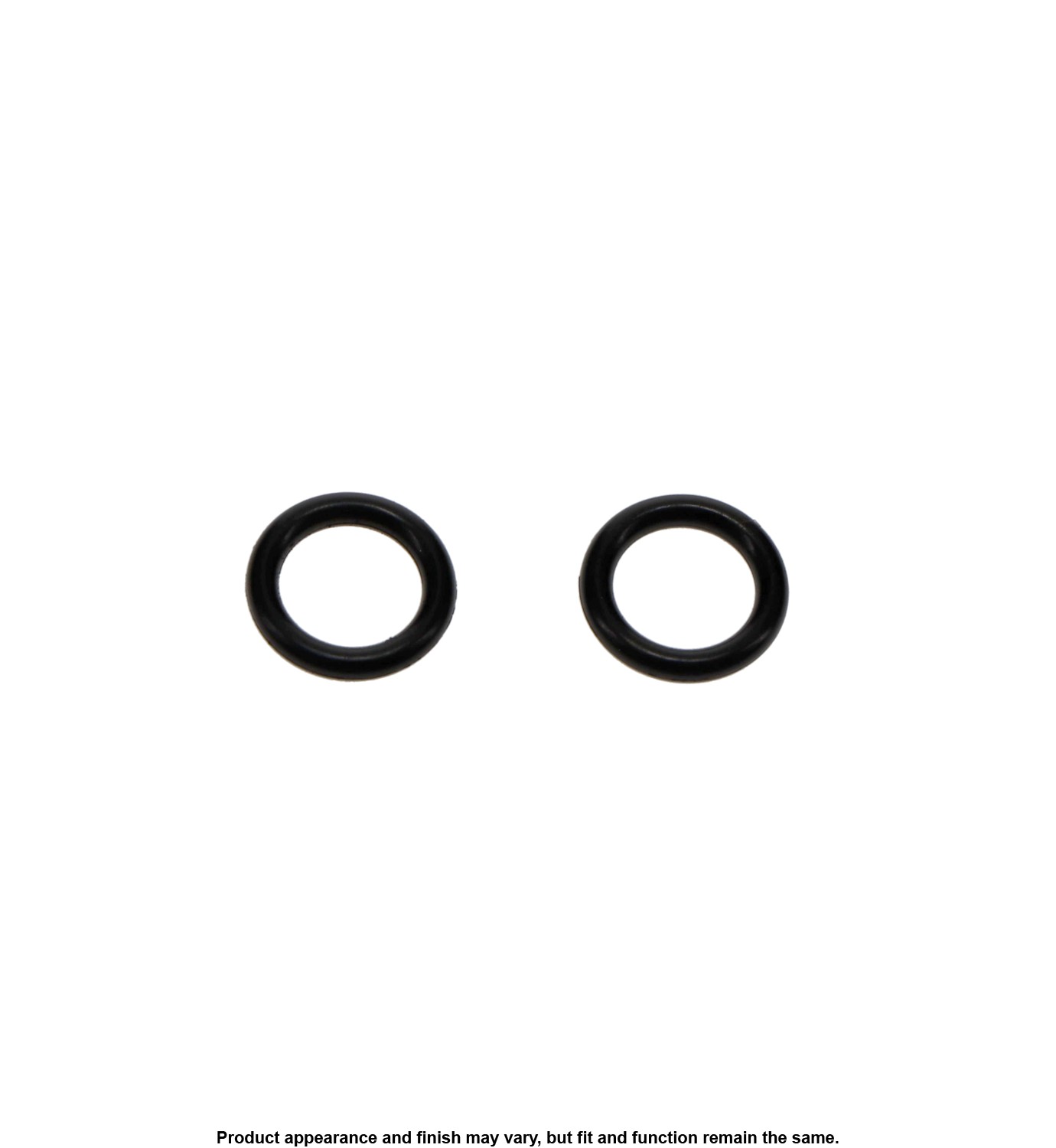

Package Contents - Gear; instruction sheet; instruction tag; sealing kit
FAA_A1 - Hoses should be replaced if they appear brittle or if there are any kinks or leaks.
FAA_A2 - The difference is the orientation of the teeth on the pitman shaft and power piston. variable teeth will have a faster ratio than non-variable teeth.
FAA_A3 - In a standard rotation gear box, the input and pitman shaft rotate in the same direction. the shafts turn in opposite directions on a reverse rotation gear box.
FAA_A4 - Not recommended. the preload is adjusted at the time of assembly. if excessive play is present, it’s due to wear of internal components. if adjustment is attempted, it could lead to binding.
Contains Electronic Components - No
Does it require SDS - No
Is Item A Chemical - No
Is Or Contains A Battery - No
Is Or Contains A Bulb - No
Is Prop Sixty Five Affected - No
Is the item CARB affected - No
