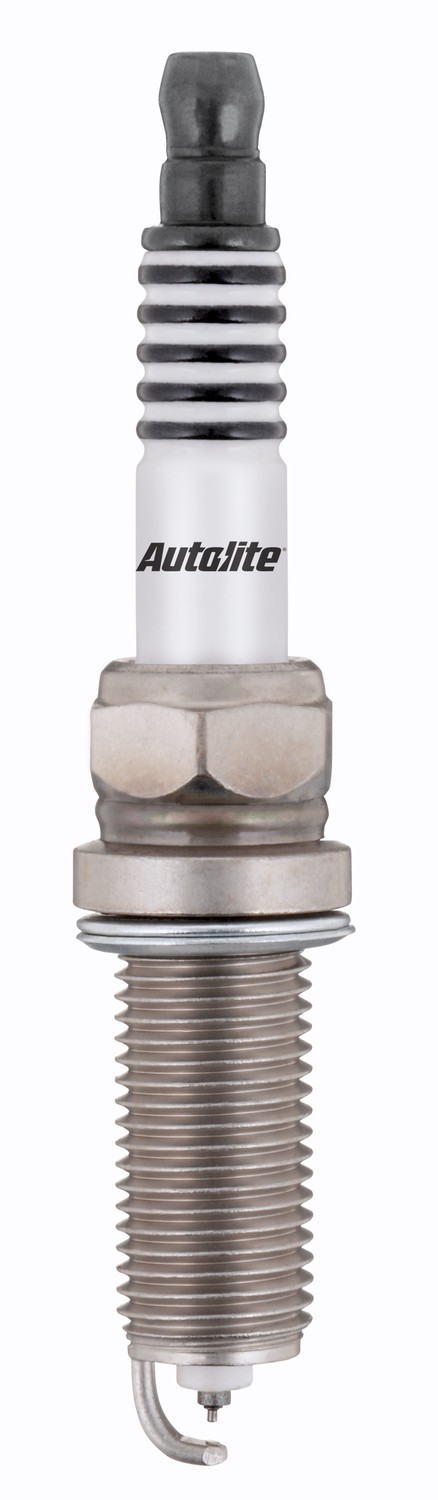

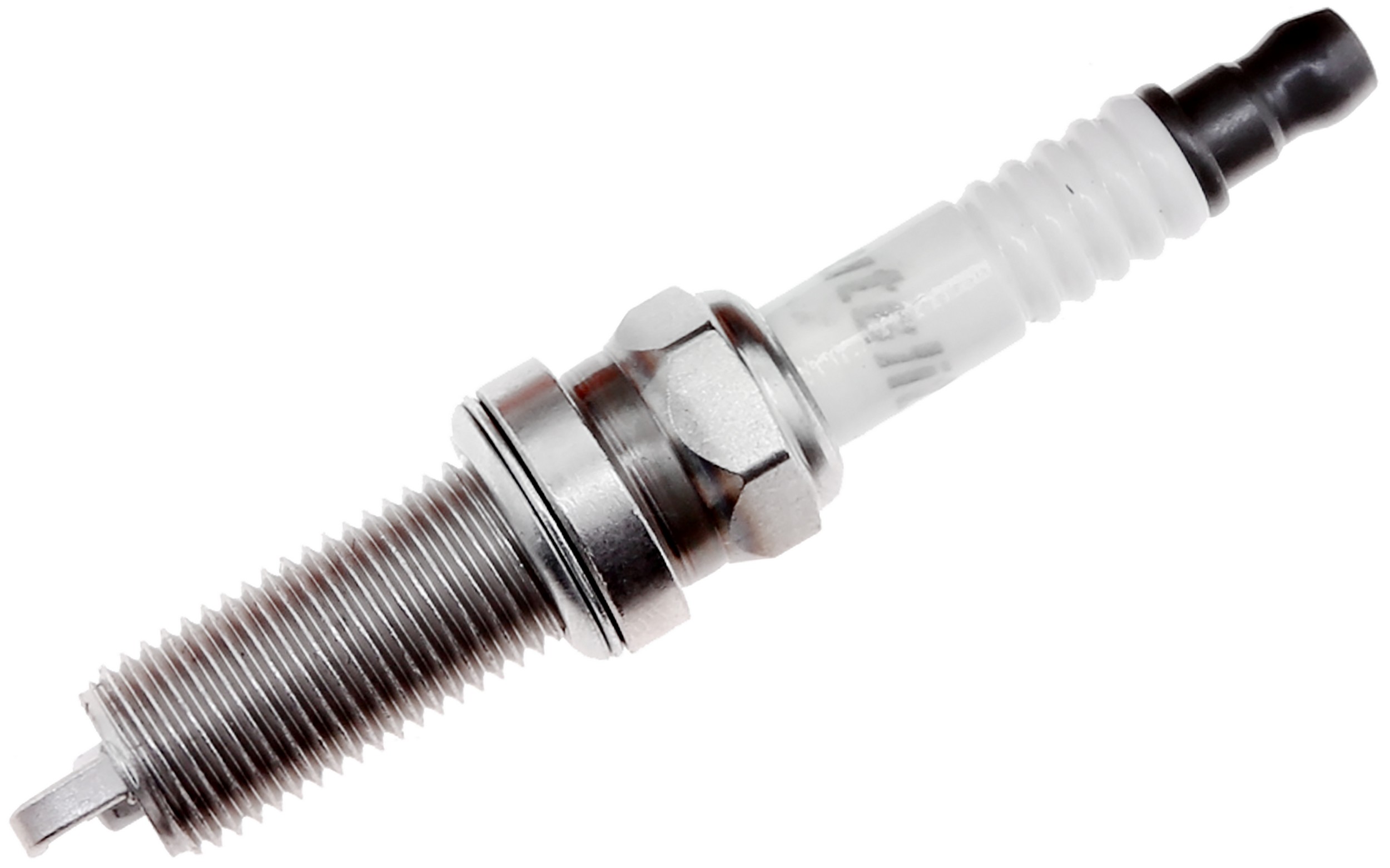

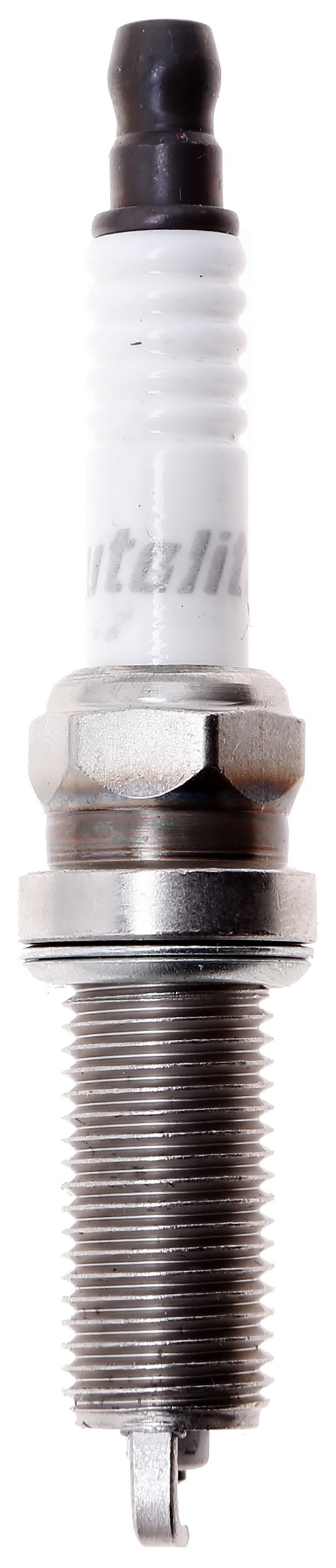

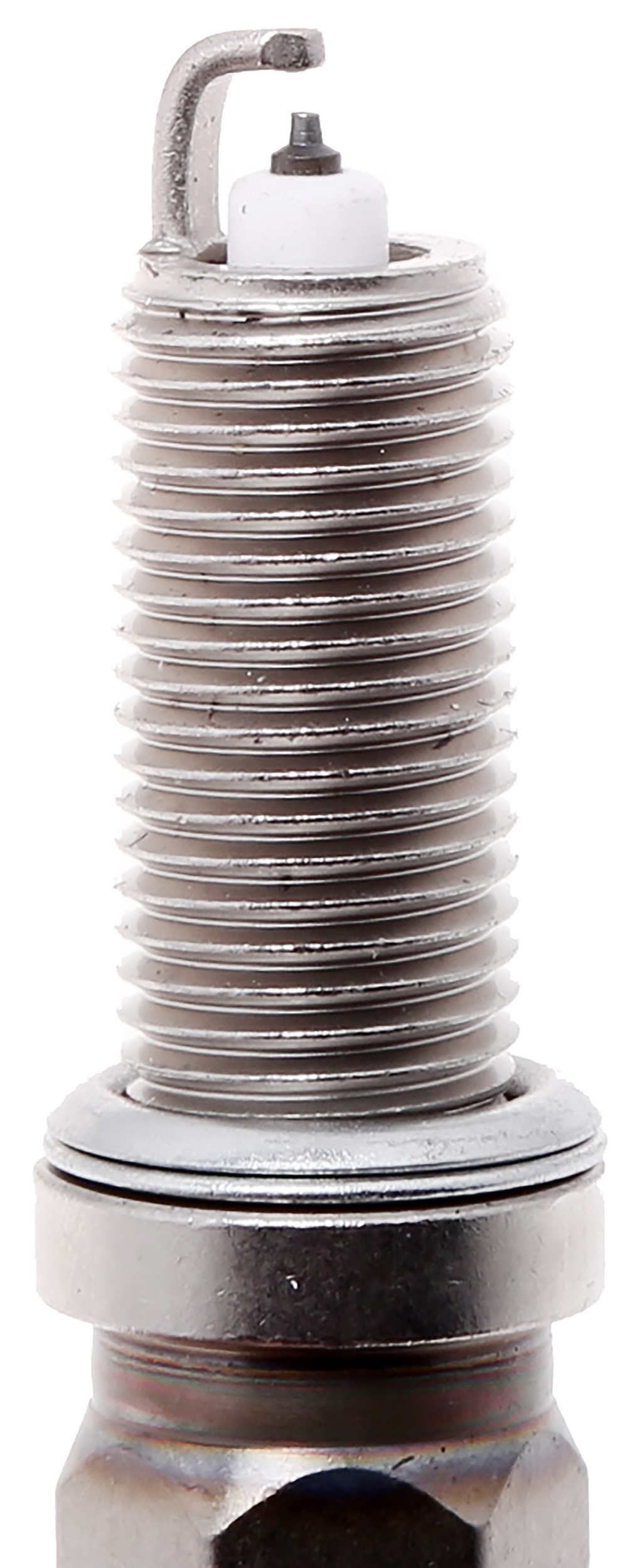

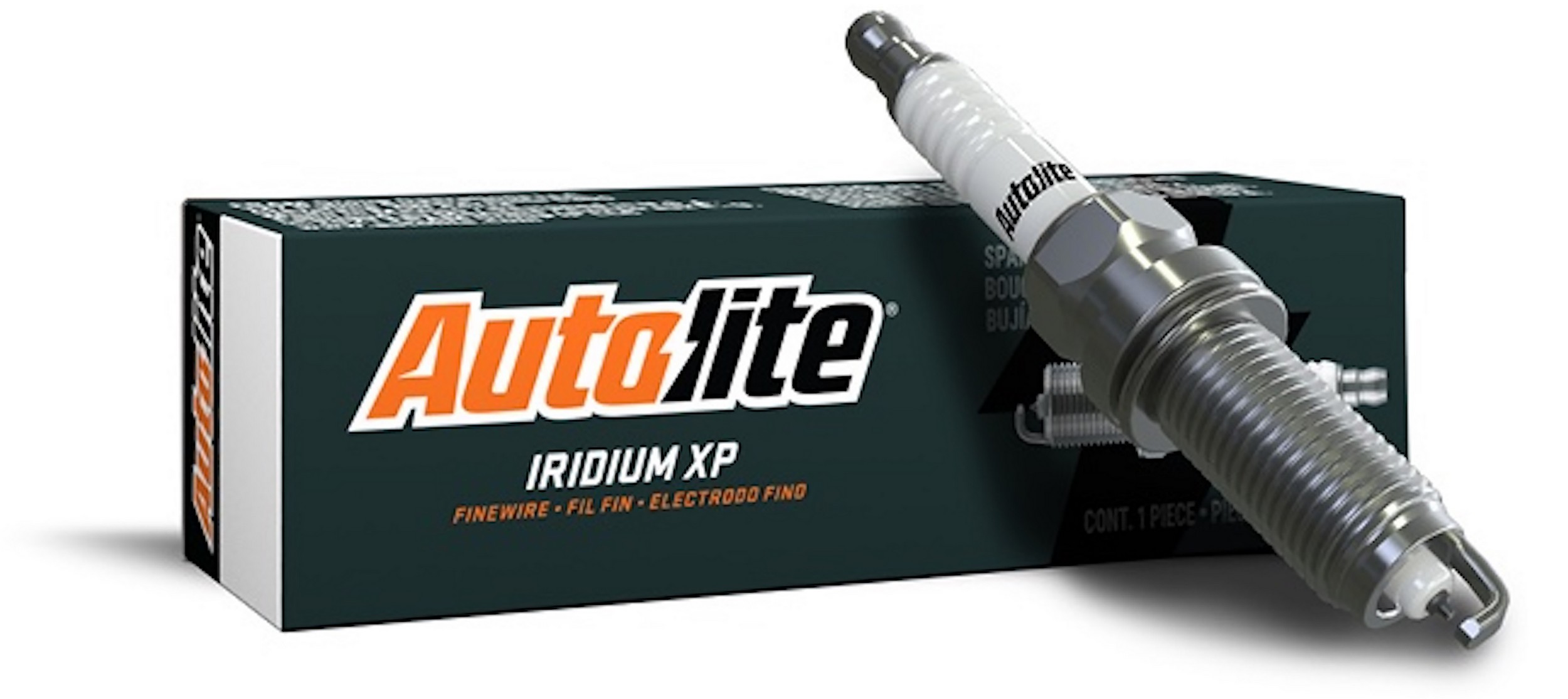

Autolite XP5684 Iridium XP Spark Plug
Manufacturer’s Warranty : 24 months
Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.
Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.
$9.48 $11.15
15% Off
Only 5 left in stock - order soon.
SKU | ABXP5684 |
---|---|
Brand | Autolite® |
Part Name | Spark Plug |
Part | # XP5684 |
UPC | # 00009100267276 |
Quantity Per Vehicle | 4 |
Pack of | 1 |
Condition | New |
Iridium XP Spark Plug
Autolite® Iridium XP spark plugs are engineered with an iridium-enhanced fine-wire and a proprietary, platinum ground electrode, to increase durability*, while its tapered ground wire maximizes engine efficiency, delivering improved engine performance, fuel efficiency, acceleration, and ignitability.

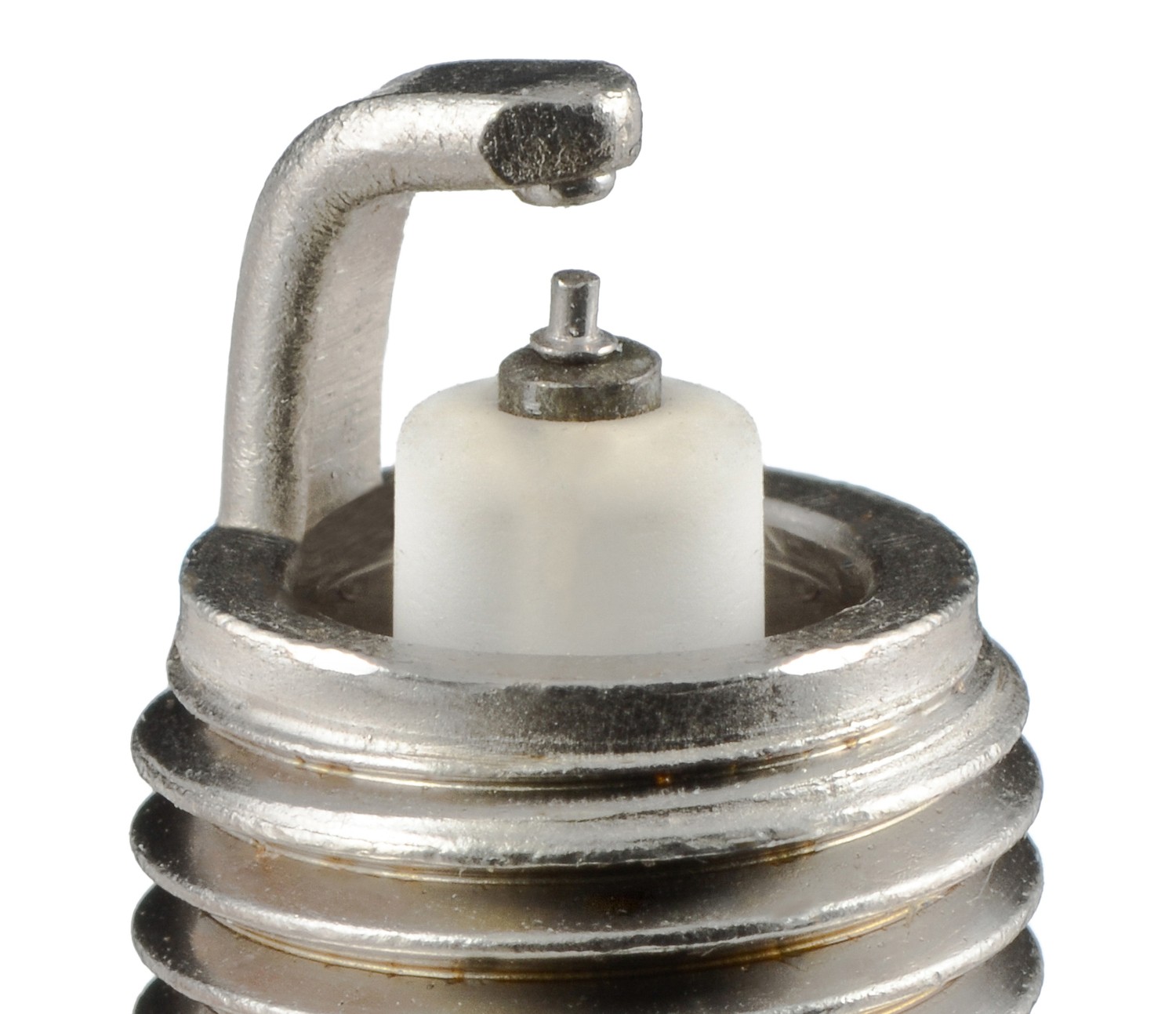

Engineered with an Iridium-enhanced center electrode and fine-wire design that increases ignitability and provides a more focused ignition for improved engine performance.
Its proprietary platinum ground electrode provides increased durability* and resistance to wear, extending the life of the plug.
The tapered ground wire improves engine ignitability.
Its high alumina multi-rib ceramic insulator provides thermal conductivity and superior insulation for increased strength while preventing flash-over.
Designed with a nickel-plated shell that is corrosion resistant to provide increased durability for extended periods.
Includes a lifetime limited warranty that guarantees optimum performance equal to OE designed plugs.
Center Electrode Core Material | - | Copper |
---|---|---|
Center Electrode Design | - | Fine wire |
Center Electrode Insulator Tip Projection (MM) | - | 3.81 |
Center Electrode Insulator Tip Projection (IN) | - | 0.15 |
Center Electrode Projection | - | Mid projection |
Center Electrode Tip Material | - | Iridium |
Core Nose Length (MM) | - | 17.07 |
Core Nose Length (IN) | - | 0.672 |
Electrical Terminal Type | - | Non-removable nut |
Grade Type | - | Performance |
Ground Electrode Quantity | - | 1 |
Ground Electrode Tip Design | - | Taper cut |
Ground Electrode Tip Material | - | Platinum |
Hex Size (MM) | - | 14 |
Hex Type | - | Hex |
Indexed | - | No |
Insulator Height (IN) | - | 2.012 |
Insulator Height (MM) | - | 51.1 |
Insulator Material | - | Ceramic |
Manufacturer Heat Range | - | 9 |
Pre-Gap Size (IN) | - | 0.044 |
Pre-Gap Size (MM) | - | 1.12 |
Reach (IN) | - | 1.043 |
Reach (MM) | - | 26.49 |
Resistance (82) | - | 4000 |
Resistor Type | - | Yes |
Seat Type | - | Flat |
Thread Diameter (MM) | - | 12 |
Washer Included | - | Yes |
Washer Type | - | Crush |
