Champion®

Champion® 9804 Spark Plug

Vehicle Info Required to Guarantee Fit For This partAdd Vehicle
Description

Champion Iridium- Boxed - RN8WYPB3

Manufacturer’s Warranty : Iridium plugs 7 years - Double Platinum Power 5 years - Platinum Power 3 years - Copper Plus 2 years

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

$7.75 $9.12 15% Off

SKU CS9804
Brand Champion®
Part Name Spark Plug
Part # 9804
UPC # 00037551009596
Quantity Per Vehicle 6
Pack of 1
Condition New
  • Fast Shipping
    We ship fast so you can get on the road that much faster
  • 100% Safety
    Only secure payments

Product Description

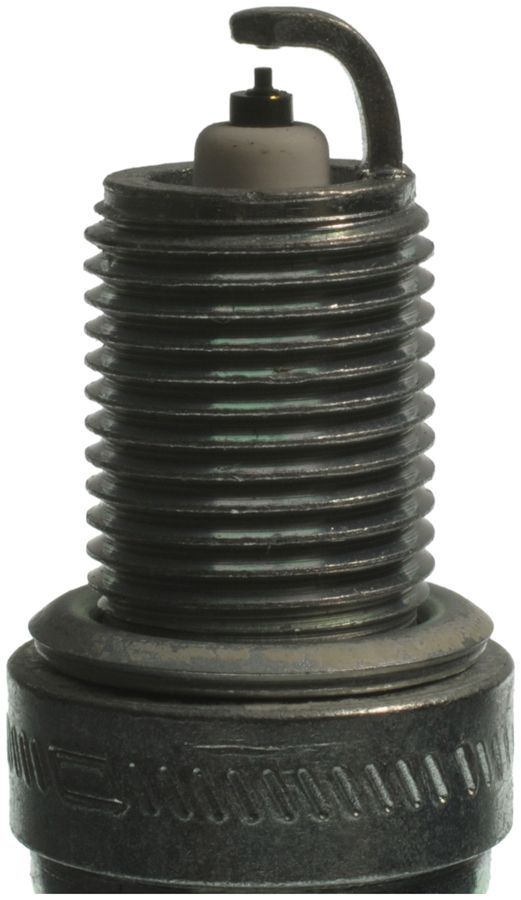

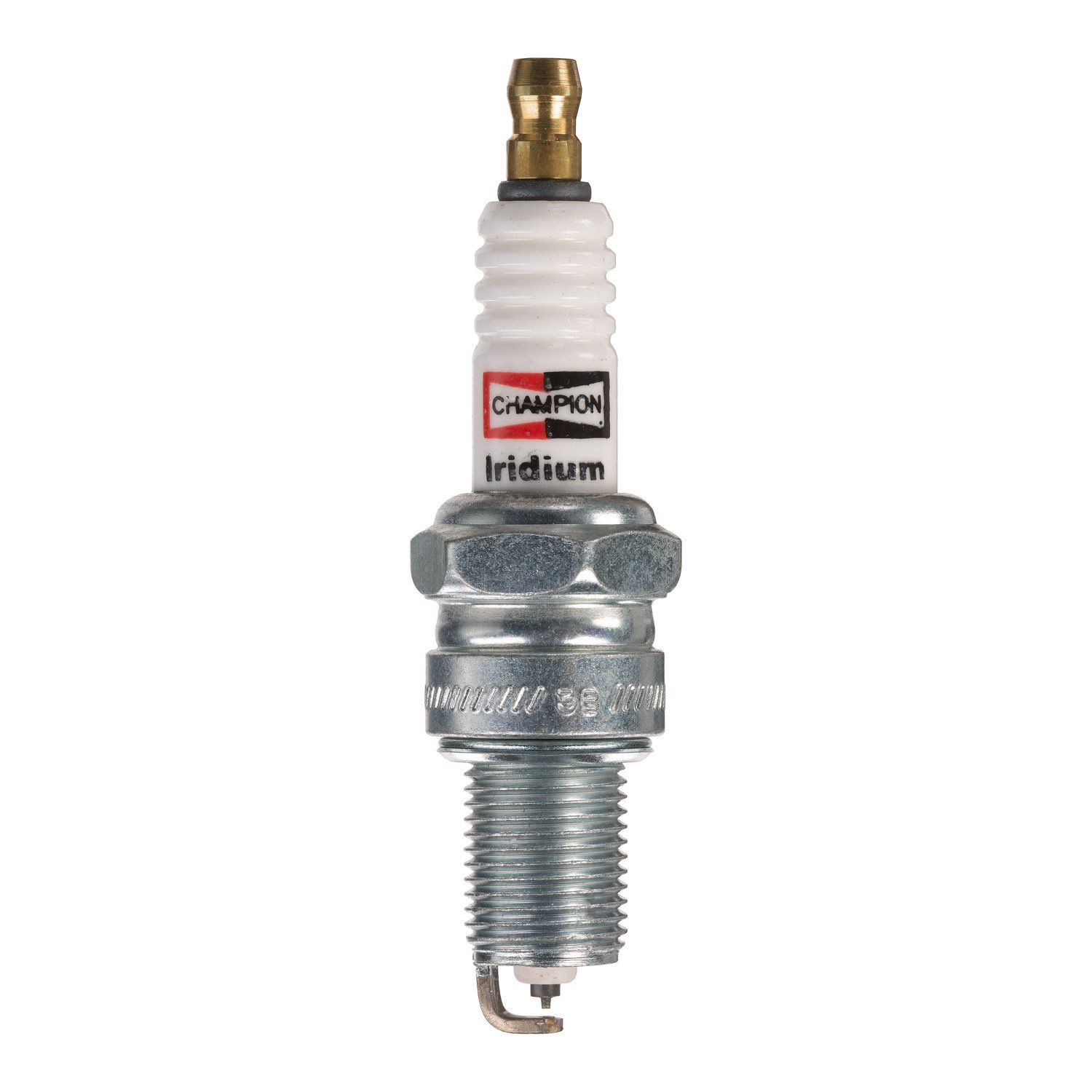

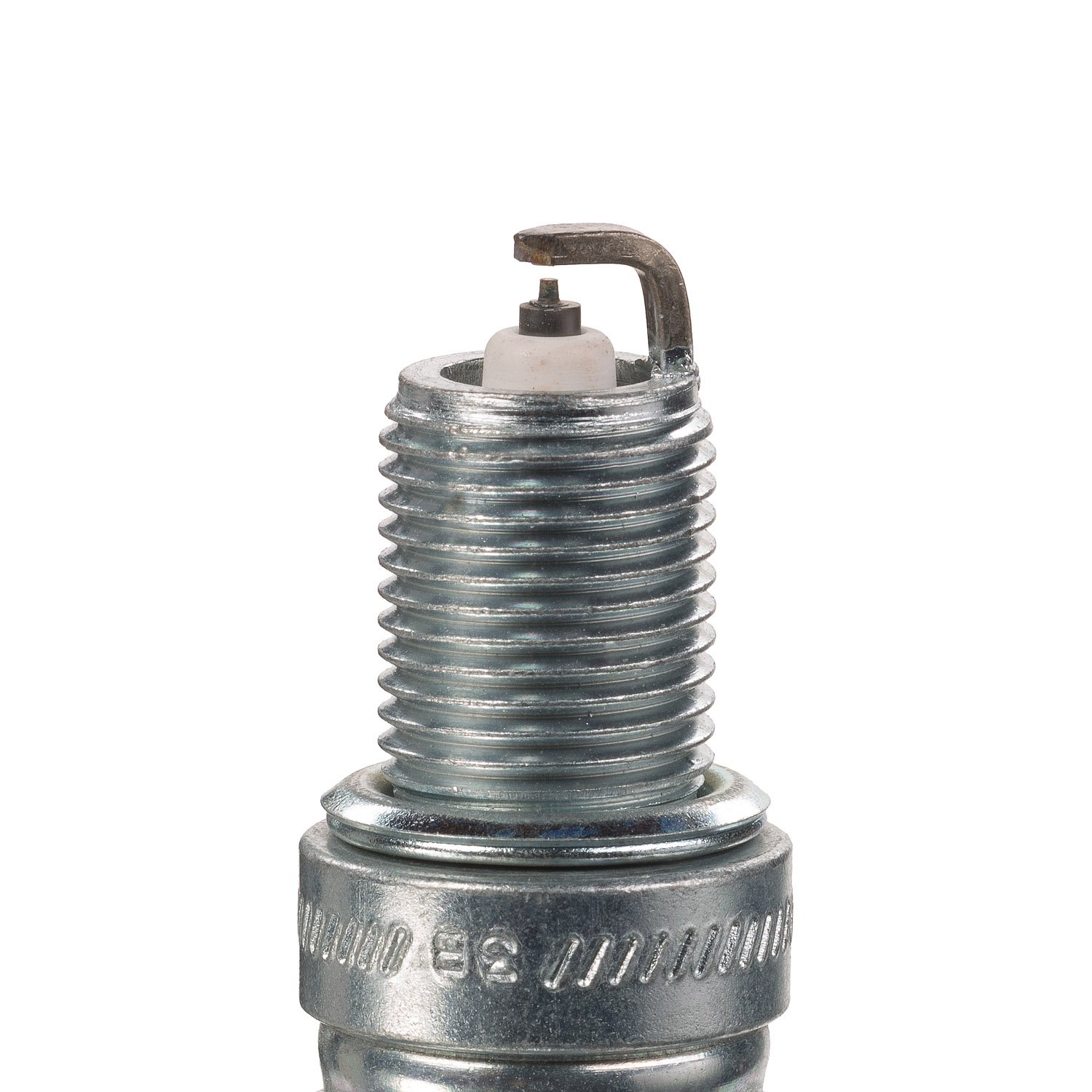

Champion® 9804 Spark Plug

Champion Iridium- BX - RN8WYPB3

Champion Iridium 9804 Spark Plug (Carton of 4)

Champion® Iridium - the ultimate element. This spark plugs fine-wire iridium center and platinum ground electrodes provide the sharpest spark focus for maximum performance.

Champion Iridium - Maximum Performance. Premium Spark Plug

Iridium center electrode delivers maximum life

Fine-wire center electrode and V-trimmed for greater ignitability

V-trimmed ground electrode promotes sharper spark focus

Maintains stable operating temperature under all engine loads

Heat-Active™ alloy allows electrodes to reach optimal temperature quickly

PRODUCT ATTRIBUTE & INFO

Classification - Champion iridium
Plug Type - Rn8wypb3
Ground Electrode Core Material (Describes Core Material) - Platinum
Center Electrode Tip Material (Describes Material) - Iridium
Ground Electrode Quantity (Describes Quantity) - 1
Hex Size (Describes Measurement Of Hex Portion) - 0.813
Hex Size (Describes Measurement Of Hex Portion) - 20.650
Insulator Height (Describes the height of the insulator of the spark plug as measured from the seat to the terminal) - 0.06
Manufacturer Heat Range (Describes Heat Range Number) - 8
Reach (Describes Measurement of length of the spark plug metal body from seat portion to the end of spark plug threads also can be described as the cylinder head thickness. Can be expressed as both inches and or millimeters.) - 0.75
Thread Diameter (Describes Measurement) - 0.551
Thread Diameter (Describes Measurement) - 14.000
Resistor Type (Is the product radio frequency resistant) - Yes
Electrical Terminal Type (Describes Type Of Terminal) - Non-removable nut
Ground Electrode Tip Design (Describes the configuration of the ground electrode tip) - J gap
Gap Size (Describes Measurement) - 0.030
Gap Size (Describes Measurement) - 0.75
Seat Type (Describes Seat Type) - Flat
Show All
Compatible Vehicles
Click on make to find vehicles fitment.

Alternate/OEM Part Number(s)

Vehicle fitment summary

Alfa Romeo Pass. Car: 1.6L L4 (68-67), 1.8L L4 (71-69), 2.0L L4 (94-70), 2.5L V6 (88-88), 3.0L V6 (93-88); Allard Pass. Car: 1.5L L4 (54-52), 2.3L L6 (54-52); Armstrong-Siddeley Pass. Car: 2.3L L6 (57-50), 3.4L L6 (60-53); Aston Martin Pass. Car: 2.6L L6
