NGK®

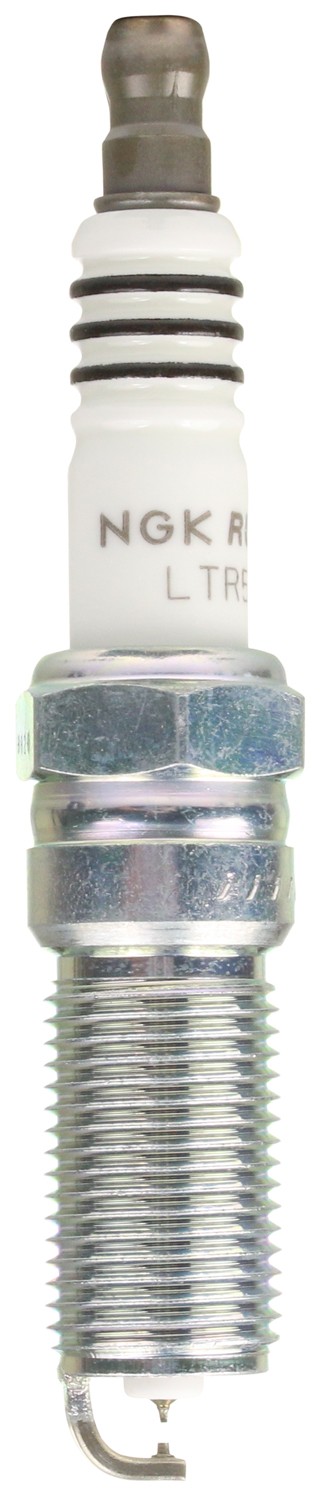

NGK® 90220 Spark Plug

This Part Does Not Fit Selected Vehicle1950 austin atlantic
View Correct Part Change Vehicle
Description

NGK Ruthenium HX High Ignitability Spark Plug

Manufacturer’s Warranty : 60 Days

Easy Return : We’re only happy if you’re happy. If you’re not entirely satisfied with your order, you may be entitled to a refund.

Fast Shipping : We ship fast so you can get on the road that much faster. Check out our Shipping Policy for more details.

$10.51 $12.36 15% Off

SKU NG90220
Brand NGK®
Part Name Spark Plug
Part # 90220
UPC # 00087295902202
Quantity Per Vehicle 8
Pack of 1
Condition New
  • Fast Shipping
    We ship fast so you can get on the road that much faster
  • 100% Safety
    Only secure payments

Product Description

NGK® 90220 Spark Plug

SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges

NGK Ruthenium HX High Ignitability spark plugs are the best in class plug for todays modern vehicles. Patented Ruthenium technology offers the most advance tip technology and delivers the highest performance and life expectancy. Created from advanced OE technology as a high ignitability plug; Ruthenium HX spark plugs come with patented, specialized OEM DFE and PSPE tip designs. NGK Ruthenium HX High Ignitability spark plugs provide a more complete fuel burn resulting in a quicker throttle response, smoother idle and better cold starts. Ruthenium center electrode provides industry leading durability.

PLATINUM PIN TYPE GROUND ELECTRODE: Provides more complete fuel burn, quicker throttle response, smoother idle and better cold starts

Ruthenium HX H. I. Spark Plug

RUTHENIUM ALLOY CENTER ELECTRODE: NGKs patented ruthenium technology produces maximum performance, ignitability & durability at high temperatures

RECOMMENDED USAGE: Modern vehicles using OE DFE type spark plugs or for those seeking an aftermarket plug with the latest OE technology

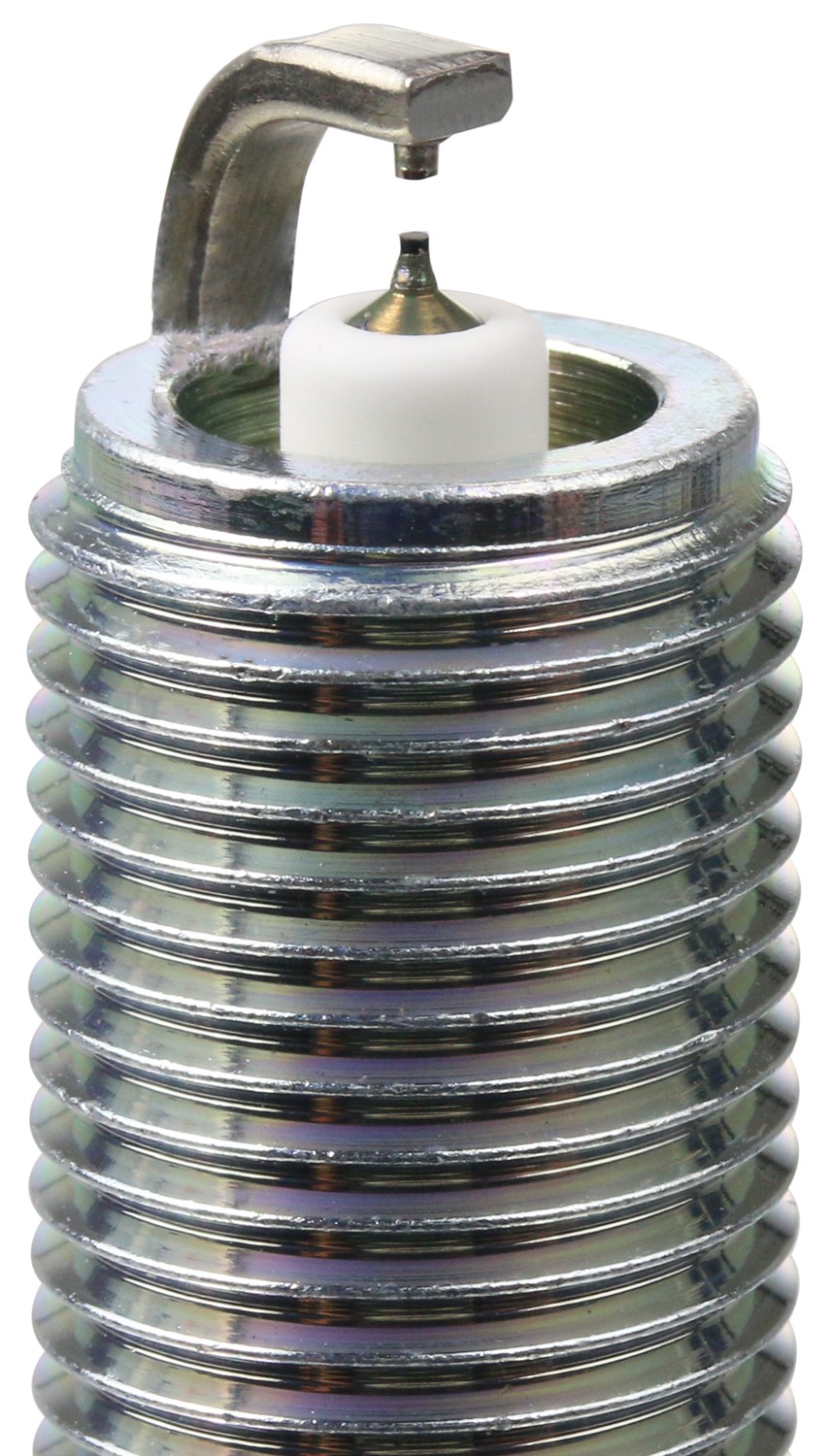

HIGH IGNITABILITY DOUBLE FINE ELECTRODE DESIGN: Combines 0.6 millimeter ruthenium center with opposed fine wire platinum ground electrode

TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal

PRODUCT ATTRIBUTE & INFO

Short Style Spark Plug - No
Part Number - Ltr5ahx
Stock Number - 90220
Service Number - Ltr5ahx
Resistance (82) - 5000.0
Ground Electrode Tip Design - Dual fine electrode (dfe) - high ignitability
Ground Configuration - J-gap
Ground Electrode Core Material - Nickel
Washer Included - No
Grade Type - Performance
Electrical Terminal Type - Non-removable nut
Center Electrode Core Material - Copper
Center Electrode Tip Material - Ruthenium
Pre-Gap Size (IN) - .044
Pre-Gap Size (MM) - 1.1
Ground Electrode Quantity - 1
Hex Size - 5/8' (16mm)
Insulator Height (IN) - 2.07
Insulator Height (MM) - 52.5
Manufacturer Heat Range - 5
Seat Type - Tapered
Reach (IN) - 0.984
Reach (MM) - 25.0
Thread Diameter (IN) - 0.551
Thread Diameter (MM) - 14.0
Insulator Material - Ceramic
Resistor Type - Yes
Skirt Length (IN) - 0.0
Skirt Length (MM) - 0.0
Ground Electrode Tip Material - Platinum
Skirt - No
Center Electrode Insulator Tip Projection (IN) - 0.12
Center Electrode Insulator Tip Projection (MM) - 3.0
Center Electrode Design - Fine wire
Center Electrode Projection - Mid projection
